Description

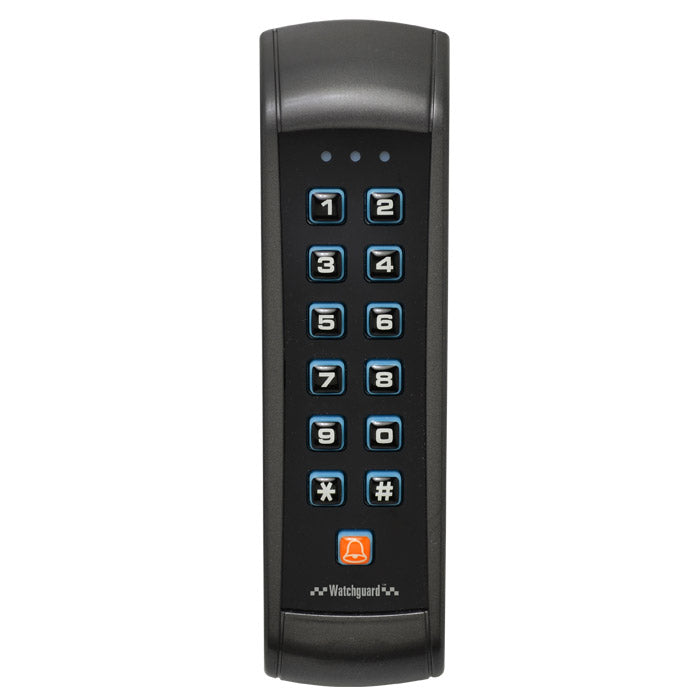

The ACRDR102 is a weather resistant, ABS plastic, self-contained, dual-level backlit access control reader/keypad designed to directly drive electric door locks. It is capable of accommodating up to 1000 user codes & RFID cards/keyfobs and is compatible with both fail-safe and failsecure locks. Cards & codes can be combined for multi-level authentication, visitor access can be programmed, daily operational hours can be set and the door lock striking timer is programmable for access customisation.
The ACRDR102 uses a solid-state switch for long service life and has an available relay contact to operate an external low power door chime. It also features a tamper switch and unauthorised access lock for vandal protection.
The ACRDR102 has a bi-directional data I/O bus, enabling use of up to 3 additional readers & split-decoder to be used. It is compatible with all proximity keys & cards (incl. 2 cards).
Datasheets
Tech Specs
| Access Lock Modes | No lock / 60s after 10 attempts / 15 mins after 10 attempts |
| Data I/O Bus | Bi-directional: 3 additional readers / 1 split-decoder |
| Dimensions | 169 x 46 x 24mm |
| Door Chime | 1A / 24VDC (N.O. relay, dry contact) |
| Door Lock Control | Toggle / Time: 1 ~ 99,999 seconds |
| Ingress Protection | IP55 (dust protected & water ingress resistant) |
| Material & Finish | Matte grey ABS plastic / Black gloss front |
| Maximum User Access | 1000 (user) codes, keyfobs, cards / 1 super-user code |
| Operating Current | 60mA (standby) / 100mA (active) |
| Operating Environment | -20°C ~ 70°C / RH95% (max) |
| Power Input | 12VDC |
| Solid State Door Lock | 2A / 24VDC |
| Tamper Switch | 50mA / 24VDC (N.C. relay, dry contact) |
| Weight | 0.16kg |
12-Month Warranty
This purchase comes with a 12-Month warranty!
