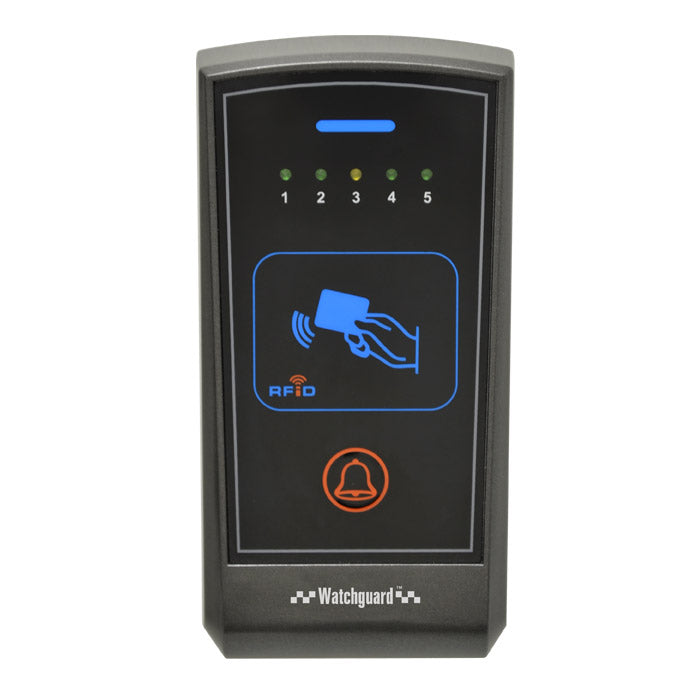

The ACRDR100 is a weather resistant, ABS plastic, self-contained access control reader designed to directly drive electric door locks. It is capable of accommodating up to 500 user RFID cards/keyfobs and is compatible with both fail-safe and fail-secure locks. The door lock striking timer is programmable for access customisation. A built-in door chime relay contact is available to operate an external low power door chime. The reader uses a solid-state switch instead of a mechanical relay contact for door lock strikes to improve service life. It also features a tamper switch and unauthorised access lock for vandal protection.
The ACRDR100 has a built-in Data I/O bus, enabling up to 3 additional ACRDR100s to be used in a multi-station access control configuration. The reader comes standard with 2 RFID cards and is also compatible with the entire range of proximity keys and cards.
Datasheets
Tech Specs
| Access Lock Modes | No lock / 60s after 10 attempts / 15 mins after 10 attempts |
| Data I/O Bus | Up to 3 additional readers |
| Dimensions | 119 x 60 x 23mm |
| Door Chime | 1A / 24VDC (N.O. relay, dry contact) |
| Door Lock Control | Time: 1 ~ 60 seconds |
| Ingress Protection | IP55 (dust protected & water ingress resistant) |
| Material & Finish | Matte grey ABS plastic / Black gloss front |
| Maximum User Access | 500 (user) / 5 (super-user) ; keyfobs, cards |
| Operating Current | 60mA (standby) / 80mA (active) |
| Operating Environment | -20°C ~ 70°C / RH95% (max) |
| Power Input | 12VDC |
| Solid State Door Lock | 3A / 16VDC |
| Tamper Switch | 50mA / 12VDC (N.C. relay, dry contact) |
| Weight | 0.16kg |
