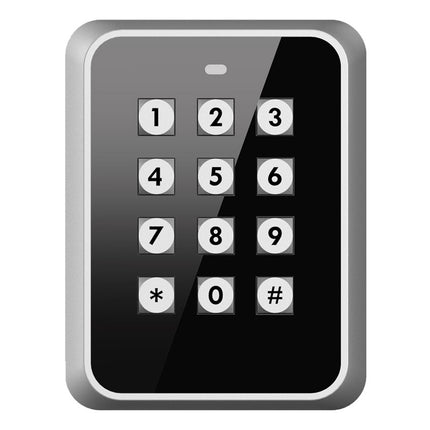

The ACRDR-2SKC is a professional access control reader, capable of granting access via RFID card and button keypad.
Product features:
• Compatible with 13.56MHz access control systems
• 12 button keys (0-9, *, #)
• Use with Door Access Control series for multiple units
• Connect and configure with PC via ethernet cable
• RS485 and Wiegand 26/34 protocol
• Elegant, glossy black finish for professional appearance
• Tamper switch triggers loud alarm, deterring removal
• LED indicators for low light visibility
• IP55 rated weather resistance
• IK08 rated for vandal resistance
Datasheets
Tech Specs
| Audio | Buzzer |
| Communication | RS485 / Wiegand 26/34 |
| Dimensions | 110 x 85 x 26mm |
| Fingerprint Scan | N/A |
| Ingress Protection | IP55 |
| Keypad | 12 Button Keys (0-9, *, #) |
| Light | Blue Backlight |
| Main Processor | 8 Bit |
| Net Weight | 0.5kg |
| Operating Conditions | -30°~+60° C / Less than 95% RH |
| Power Supply | 9~15 VDC / 100mA |
| Product | RFID Reader / Button Keypad |
| RFID Format | 13.56MHz |
| RFID Read Range | ?8cm |
| RFID Read Time | <0.1s |
| Tamper Switch | Yes |
| Vandal Protection | IK08 |
