Description
VIP Vision Access Controllers are the central management device for your system. Take full control with user management, event logs, access period scheduling, alarm functions, CCTV integration and much more.
Product features:
• Store up to 100,000 valid cards & 150,000 records
• Supports RFID card, password, fingerprint and keycode
• TCP/IP interface for configuration via PC
• Wiegand or RS-485 interface to readers
• Door time-out, intrusion, duress and tamper alarms
• Anti-passback, multi-door interlock, multi-card open
• Support 128 efficient time and holiday schedules
• Watch dog function ensure device free from halting

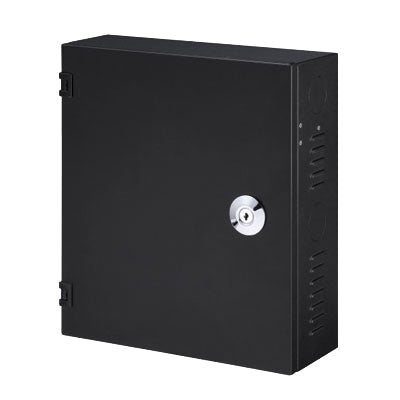

• Sturdy wall-mounted metal casing
• Backup battery support, battery connector included
*12V 7Ah backup battery recommended (Sold separately)
Manage with SmartPSS (minimum spec Windows 7, 2.4GHz or higher, GPU with DX8.0c support, 1GB RAM, 1024x768 resolution)
* Please note that backup battery up-time uses 12VDC7Ah Lead Acid Battery. Figures are calculated estimates for reference only. Actual installation results may vary
Datasheets
">
Video - Intelligent function - Anti-passback (Two-way access controller only) ⬇️
ConfigTool for Intercom, CCTV & Access Control (Windows 2020-10-22) ConfigTool for Intercom, CCTV & Access Control (Windows 2020-10-22) ⬇️
Tech Specs
| Access Control | Anti-pass back, Multi-interlock, Multi-card unlock |
| Alarm Function | Door time-out, Intrusion, Tamper, Duress |
| Battery Backup | 12VDC 7Ah Battery / UPS (Sold Separately) |
| Battery Up-time | Electric Door Strikes: 20hrs (2 doors) / 11hrs (4 doors) / 6hrs (8 doors) |
| Card Memory | 100000 |
| Dimensions | 270 x 330 x 90mm |
| Ethernet | RJ-45 (10/100Base-T) |
| Event Memory | 150000 |
| Housing | Metal |
| Input Ports | 20 (4 x lock state ; 4 x door sensor; 4 x exit button; 8 x alarm) |
| Main Processor | 32 Bit |
| Memory | 16MB |
| Net Weight | 2kg |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Output Ports | 12 (4 x door lock; 4 x internal alarm; 4 x external alarm) |
| Period | Support 128 groups of schedules, 128 groups of periods and 128 groups of holiday periods |
| Power Supply | 240V AC |
| Reader Interface | Wiegand / RS485 |
| Reader Ports | 8 |
| RTC | Yes |
| User Management | General, VIP, Guest, Patrol, Blacklist, Duress |
