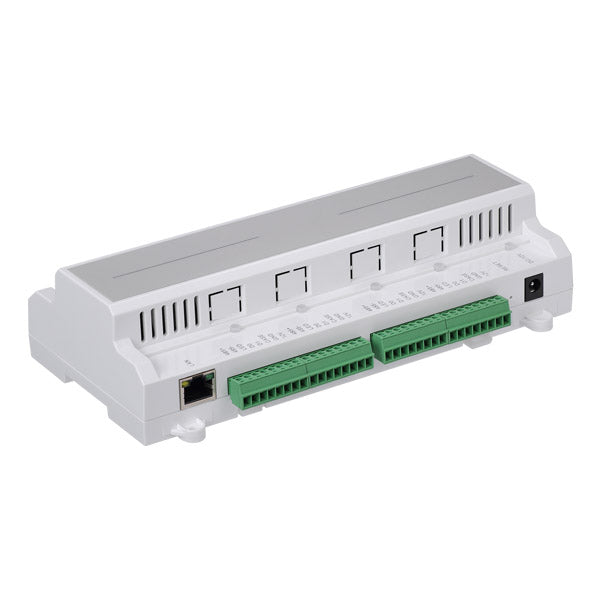

VIP Vision Access Controllers are the central management device for your system. Take full control with user management, event logs, access period scheduling, alarm functions, CCTV integration and much more.
Product features:
• Store up to 100,000 valid cards & 150,000 records
• Supports RFID card, password, fingerprint and keycode
• TCP/IP interface for configuration via PC
• Wiegand or RS-485 interface to readers
• Door time-out, intrusion, duress and tamper alarms
• Anti-passback, multi-door interlock, multi-card open
• Support 128 efficient time and holiday schedules
• Watch dog function ensure device free from halting
• For internal use only
Manage with SmartPSS (minimum spec Windows 7, 2.4GHz or higher, GPU with DX8.0c support, 1GB RAM, 1024x768 resolution)
* ACCON-2C41 requires UPS for battery backup
Datasheets
">
Video - Intelligent function - First Card Unlock ⬇️
Tech Specs
| Access Control | Anti-pass back, Multi-interlock, Multi-card unlock |
| Alarm Function | Door time-out, Intrusion, Tamper, Duress |
| Battery Backup | UPS (Sold Separately) |
| Battery Up-time | N/A |
| Card Memory | 100000 |
| Dimensions | 210 x 98 x 51mm |
| Ethernet | RJ-45 (10/100Base-T) |
| Event Memory | 150000 |
| Housing | Plastic |
| Input Ports | 9 (4 x door sensor; 4 x exit button; 1 x alarm) |
| Main Processor | 32 Bit |
| Memory | 16MB |
| Net Weight | 0.5kg |
| Operating Conditions | -30° ~ +60° C / Less than 95% RH |
| Output Ports | 5 (4 x door lock, 1 x alarm) |
| Period | Support 128 groups of schedules, 128 groups of periods and 128 groups of holiday periods |
| Power Supply | 9~15VDC / 500mA |
| Reader Interface | Wiegand / RS485 |
| Reader Ports | 4 |
| RTC | Yes |
| User Management | General, VIP, Guest, Patrol, Blacklist, Duress |
