| Alarm Interface |
3 channel in: 5mA 3-5VDC/ 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC |
| Audio Interface |
1 input (terminal)/ 1 output (terminal) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723 |
| Bit Rate |
H.264: 3kbps-20480 kbps / H.265: 3kbps-20480 kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |

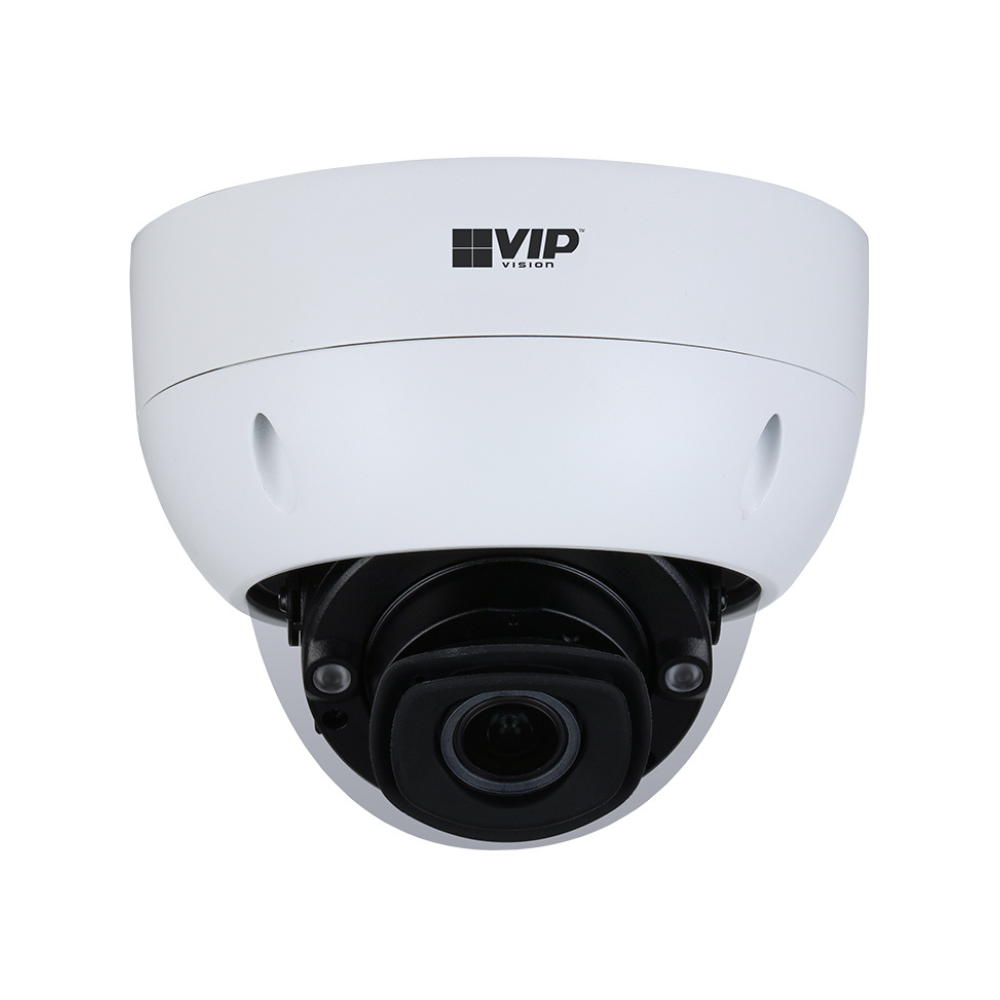

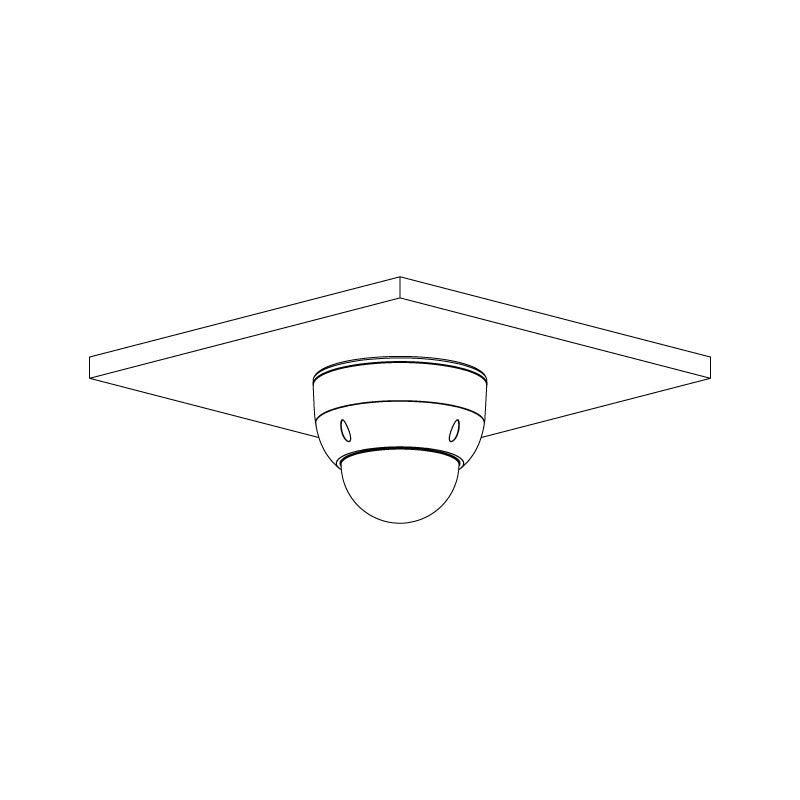

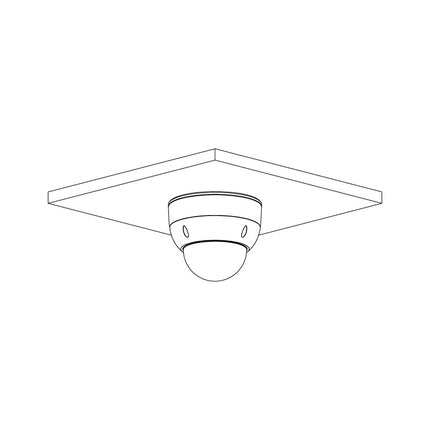

| Camera Type |
Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
88m (wide) / 187m (tele) |

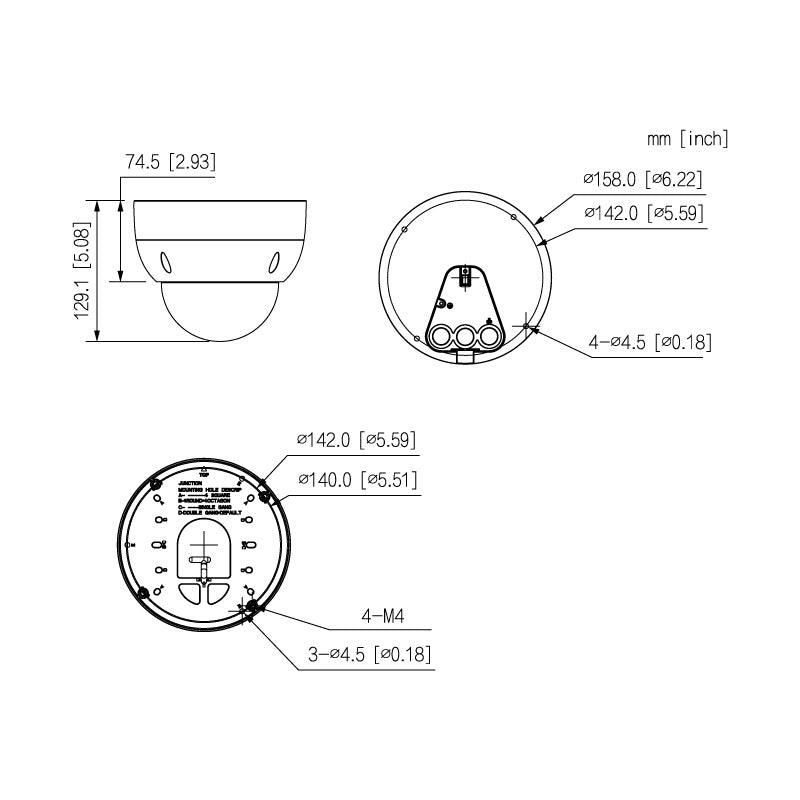

| Dimensions |
Ø158mm x 129.1mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels |
3840 (H) x 2160 (V) |
| ePoE |
Yes |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access |
| Face Attributes |
Age, Gender, Expression, Glasses, Face Mask, Facial Hair |
| Face Detection |
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total) |
| Field of View |
Horizontal: 112°~47.5°, Vertical: 58°~26.6°, Diagonal: 137.5°~54.6° |
| Focus |
Auto Focus / 1.75m Min. Focus Distance |
| Frame Rate (Main) |
8.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
Yes |
| Housing |
Metal |
| Identify (250px/m) |
9m (wide) / 19m (tele) |
| Image Sensor |
1/1.8’’ 8.0MP Progressive Scan CMOS |
| Infrared System |
3 x Infrared LED, 40m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object |
| Intelligent Search |
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris |
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
8.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.003 Lux / F1.2 (Color) |
| Net Weight |
1.10kg |
| Noise Reduction |
3D NR |
| Observe (63px/m) |
35m (wide) / 79m (tele) |
| Operating Conditions |
-40°C ~ +60°C (Heater on), ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355° |
| People Counting |
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption |
<15.9W (intelligent function) |
| Power Supply |
12 VDC (±25%) / 24 VAC (±30%) / PoE (802.3af)/ePoE |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM |
1GB / 128MB |
| Recognise (125px/m) |
18m (wide) / 37m (tele) |
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| RS485 |
1 (Bit rate: 1200bps ~ 115200bps) |
| S/N Ratio |
> 56dB |
| Series |
Ultimate AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265, H.264, H.264B, H.264H, MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
