Professional AI Series 2.0MP PTZ Ceiling Mount Camera
This VSIPPTZ-2C-I camera delivers lightning fast PTZ mobility, up to 25x optical zoom and auto-tracking, all in a vandal resistant body. Experience AI face detection & AI Perimeter Protection technology, providing meaningful video event notifications in real-time. Ideal for indoor, time critical applications such as in banks, retail, in gaming and more.
Product Features:
✔️ Stream up to 2.0MP (1920x1080) at 50fps
✔️ 4.9 - 156mm motorised varifocal lens with 2.2 - 68.2° viewing
✔️ H.265 encoding for efficient storage & streaming
✔️ Built-in microphone and microSD slot for edge recording
✔️ 3D digital noise reduction & true WDR (120dB)
✔️ Tripwire, Intrusion, Motion detection and more
✔️ Power via 12VDC or Power over Ethernet (802.3at)
✔️ IK10 rated metal housing
Includes 24VAC/3A PSU.
Tech Specs
| Alarm Interface |
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC |
| Audio Interface |
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723 |
| Auto Tracking |
Support |
| Bit Rate |
H.265/H.264: 3 kbps–20480 kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |

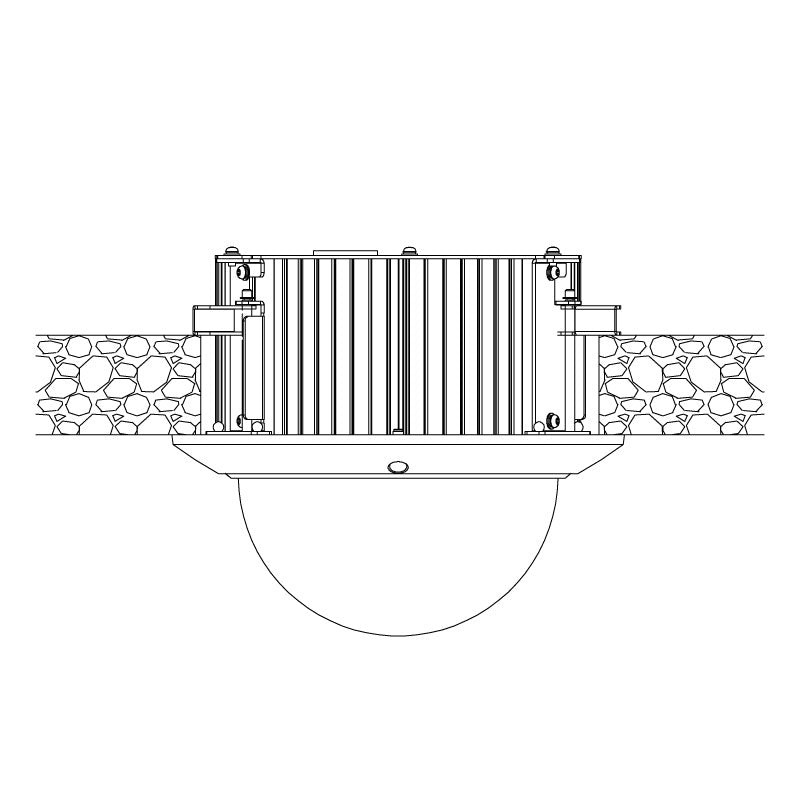

PTZ Dome (Ceiling Mount) |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
2152m |
| Digital Zoom |
16x |
| Dimensions |
Ø186 mm x 253 mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels |
1920 (H) x 1080 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Triggers |
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly |
| Face Capture |
Support |
| Face Recognition |
N/A |
| Field of View |
62.8°–2.2° |
| Focus |
1 m–1.5 m Min. |
| Frame Rate (Main) |
1080p (1 ~ 50fps) |
| Frame Rate (Sub) |
D1(1 ~ 25fps) |
| Frame Rate (Third) |
720p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
215m |
| Image Sensor |
1/2.8" STARVIS™ CMOS |
| Image Stabilisation |
Electronic |
| Infrared System |
2 x Infrared LED, 50m range, Auto/manual on/off control |
| Ingress Protection |
N/A |
| Interoperability |
ONVIF / CGI |
| IVS Functions |
Abandoned object / Missing object |
| Lens / Iris |
4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
2MP |
| Max. User Access |
20 Users |
| Metadata |
Support |
| Min Illumination |
Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35 |
| Modes / Presets |
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Net Weight |
2.2 kg |
| Noise Reduction |
2D / 3D NR |
| Observe (63px/m) |
850m |
| Operating Conditions |
–30°C to +60°C |
| Optical Defog |
Support |
| Pan / Tilt Range |
Pan: 0 ~ 360° (endless) / Tilt: 0 ~ 90° / Auto-flip 180° |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control |
Flip 180° |
| Power Consumption |
<16W |
| Power Supply |
24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at) |
| Privacy Masking |
Up to 24 areas |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| PTZ Speed |
Preset: Pan: 500°/s; Tilt: 500°/s Manual: Pan: 350°/s; Tilt: 250°/s |
| RAM / ROM |
1GB / 4GB |
| Recognise (125px/m) |
430m |
| Region of Interest |
Support |
| Resolution |
1080p (1920 x 1080) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
≥ 55 dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
No |
| Start-up Action |
Auto-restore to previous PTZ/lens status |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+ |
| Video Interface |
1 Output (Vpp 75Ω) |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
