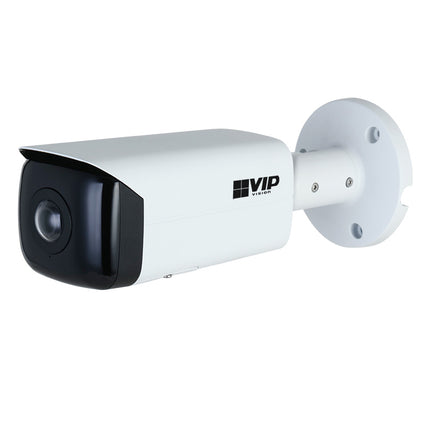

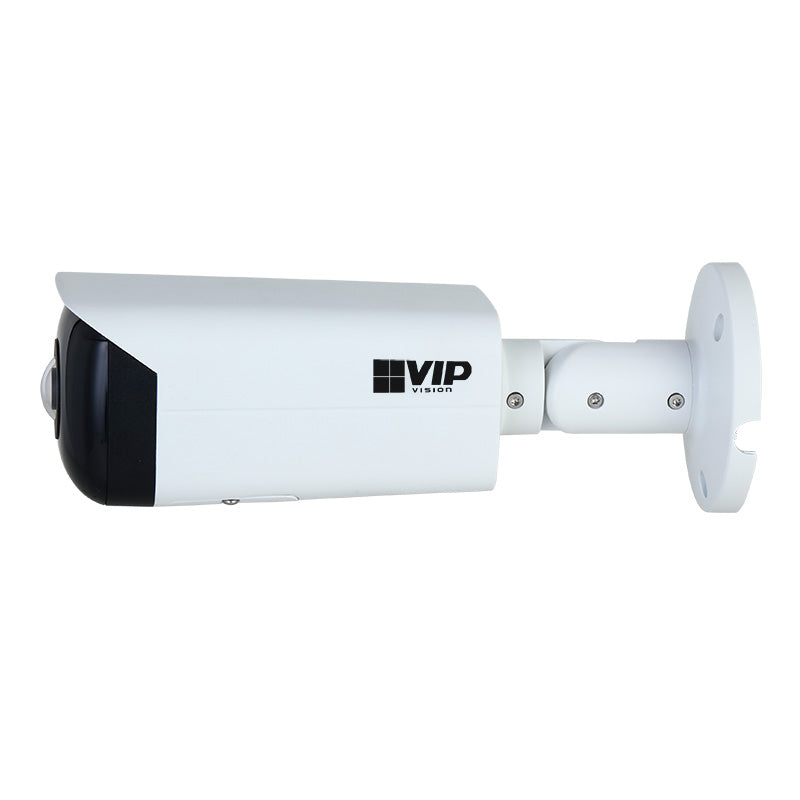

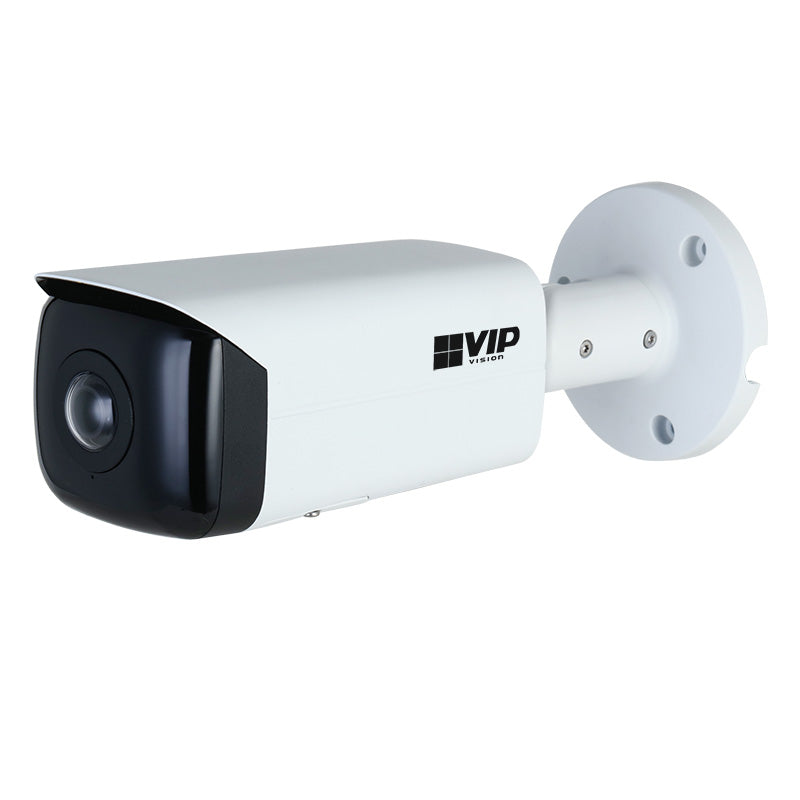

Applying machine-learned algorithms, this Professional AI VSIPP-4BIRW-I camera features intelligent Perimeter Protection and delivers superb image performance with low light colour and a wide-angle lens. The lens provides a panoramic 180° view that can replace multiple cameras in a CCTV system. Perfect for reducing time on installations!
✔️ Stream up to 4.0MP (2880 x 1620) at 25fps
✔️ 2.1mm panoramic lens for 170° field of view (Lens Distortion Control enabled; 180° when disabled)
✔️ Back/highlight compensation & true WDR (120dB)
✔️ 20m infrared range & virtual PTZ control
✔️ Starlight sensor for superb low-light performance
✔️ Intelligent AI detection to identify people & vehicles
✔️ Smart Motion Detection (SMD+) & Perimeter Protection for AI alerts and to prevent false alarms
✔️ MicroSD slot for recording at the edge up to 256GB
✔️ 3D digital noise reduction & auto white balance
✔️ IP67 weather rated housing for outdoor use
✔️ Power via 12VDC or Power over Ethernet (802.3at)
| Alarm Interface |
1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC |
| Audio Interface |
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723 |
| Bit Rate |
H.264/H.265: 3 kbps–8192 kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
52.0 m |

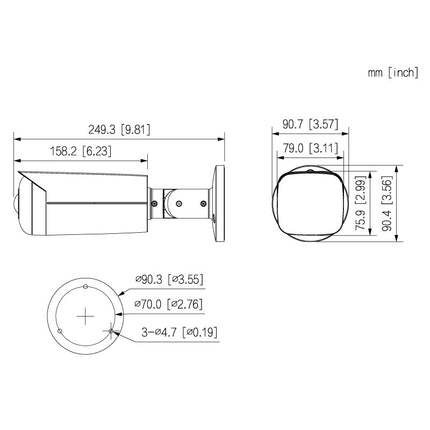

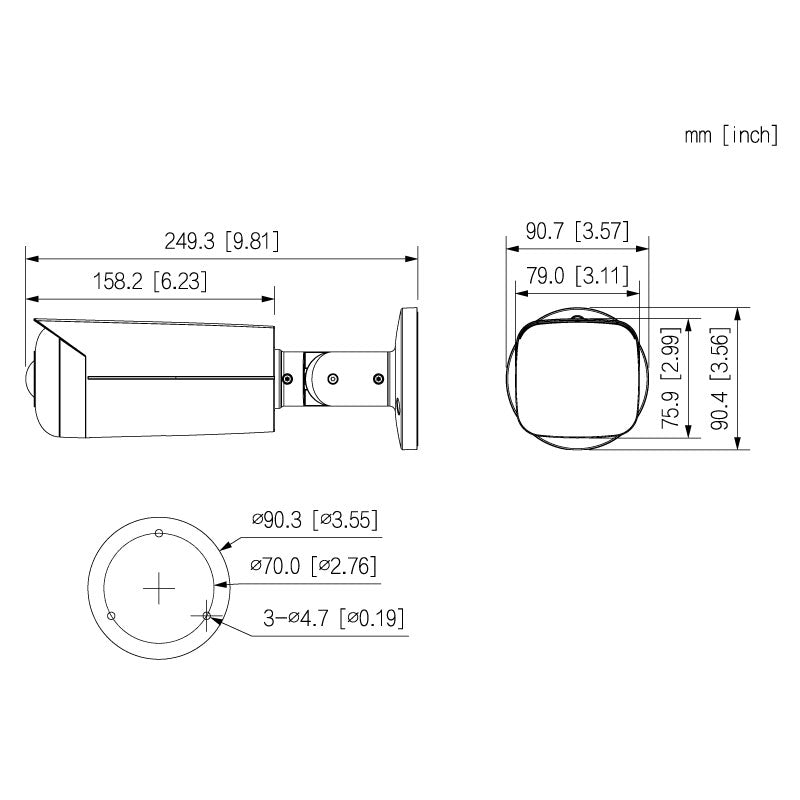

| Dimensions |
249.3 mm × 90.7 mm × 90.4 mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels |
2880 (H) x 1620 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
180° |
| Focus |
0.6m Min. Focus Distance |
| Frame Rate (Main) |
5.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
5.2 m |
| Image Sensor |
1/2.7" CMOS |
| Infrared System |
2 x Infrared LED, 20m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object |
| Intelligent Search |
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
| Interoperability |
ONVIF / PSIA / CGI |
| Lens / Iris |
2.1mm F2.0 Fixed Focal Lens |
| Lens Type |
Fixed Focal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
5.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.01 Lux / F1.6 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Net Weight |
820 g |
| Noise Reduction |
3D NR |
| Observe (63px/m) |
20.8 m |
| Operating Conditions |
-40°C ~ +60°C, ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption |
<6.5W |
| Power Supply |
12 VDC/PoE |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| RAM / ROM |
512 MB/128 MB |
| Recognise (125px/m) |
10.4 m |
| Resolution |
5.0 MP (2880 x 1620) / 4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
>56 dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
No |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
N/A |
| Video Compression |
H.265, H.264, H.264H, H.264B, MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
✔️ Warehoused and ships from Sydney.
✔️ All our products are 100% genuine. No Grey Imports!
✔️ Electronic devices are all eligible for any manufacturer software updates!
The warranty covers defects in materials or broken components that could affect the regular operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.
