Description

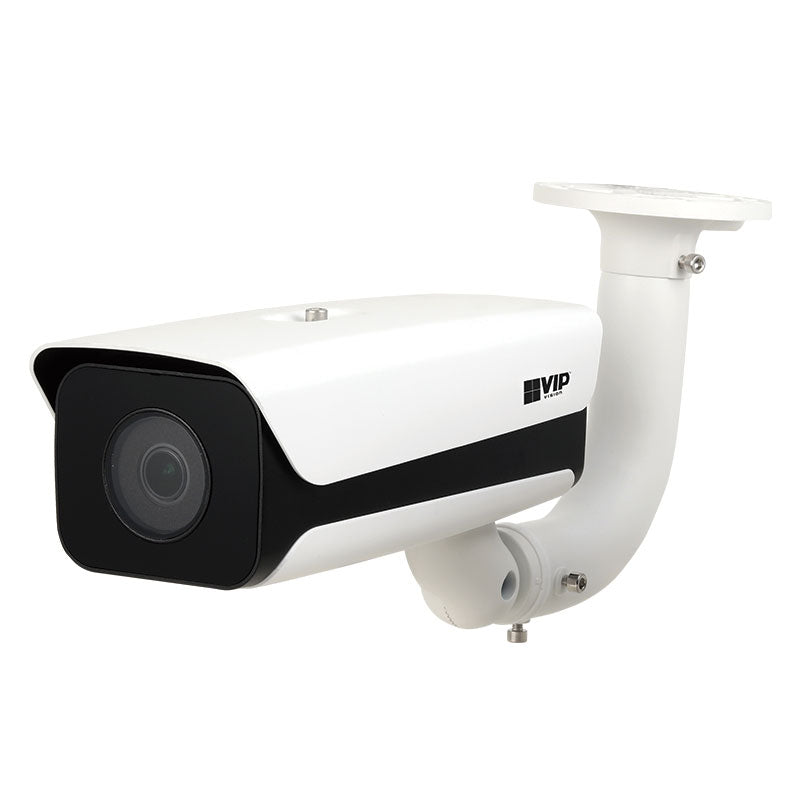

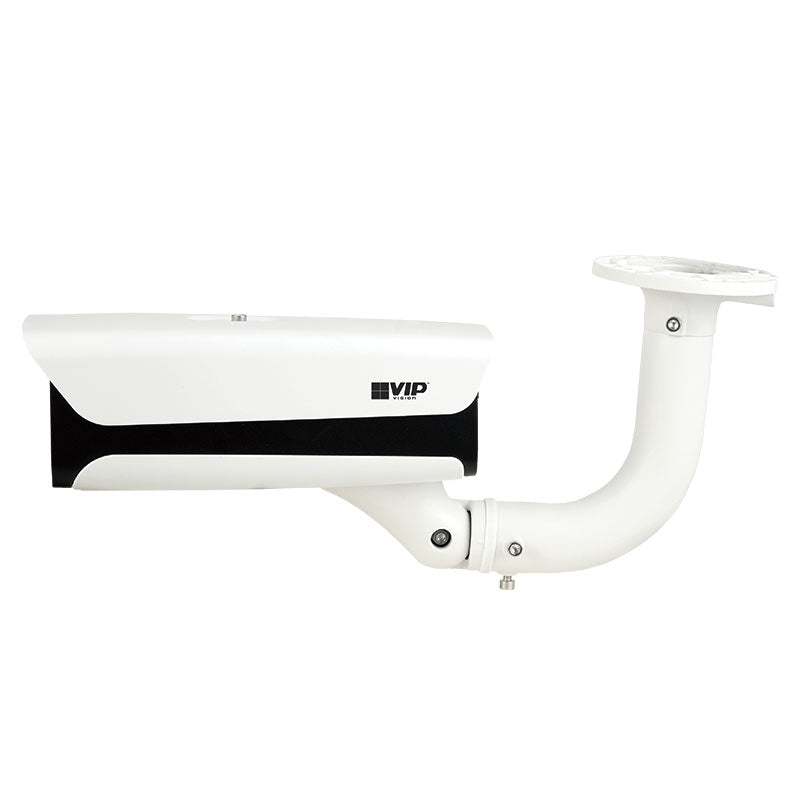

Traffic AI Series 2.0MP Motorised AI ANPR Bullet
Specially designed for number plate enhancement, Traffic AI Series number plate cameras are designed to obtain video evidence with vehicle identification in controlled environments with challenging lighting conditions. Enhanced with AI, this series has superior plate recognition compared to earlier ANPR models and additional smart features.
Product Features:
✔️ Stream Full HD 1080p (1920 x 1080) at 25fps
✔️ 2.7~13.5mm motorised lens (119 ~ 32°, DC auto iris)
✔️ Superb low light colour performance at 0.002lx
✔️ Automatic number-plate recognition (ANPR)
✔️ AI-enhanced plate capture and vehicle detection
✔️ Edge enhancement for number plate detail & legibility
✔️ Supports shutter speed windowing; set min/max speed
✔️ Highlight compensation removes headlight glare
✔️ Capture number plates for vehicles going up to 30km
✔️ Identify vehicle size, colour & direction with AI
✔️ Configurable OSD showing time, date, number plate etc.
✔️ IP67 rated weather resistant metal housing
* Includes mounting bracket
Tech Specs
| Alarm Interface |
3 Input / 3 Output |
| Audio Interface |
1 Input / 1 Output |
| Auxiliary Interface |
2 x RS485 / 1 x RS232 / 1 x Analog Output |
| Bit Rate |
H.264/H.265: 32 ~ 32768Kbps / MJPEG: 512 ~ 65536Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Bullet |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detection Range / Rate |
Capture Range: 3~6m / Lane Width: 3~4m / Detection Rate: ≥99% |

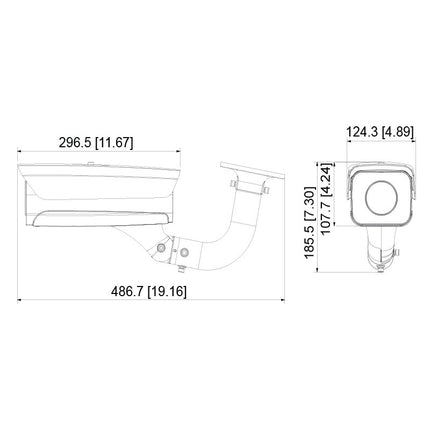

| Dimensions |
487 x 124 x 186mm (with bracket) |
| Edge Storage |
FTP / Micro SD Card (supports max. 128GB) |
| Effective Pixels |
1920 (H) x 1080 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (100/1000 Base-T) |
| Field of View |
Horizontal: 108°~30°, Vertical: 56°~17°, Diagonal: 131°~35° |
| Focus |
Auto Focus |
| Frame Rate (Main) |
1080p (1 ~ 25fps) |
| Frame Rate (Sub) |
720p (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Gain Control |
Auto / Manual |
| Housing |
Metal & plastic, installed with bracket (Φ14) |
| Image Sensor |
1/2.8" 2.0MP Progressive Scan CMOS |
| Infrared System |
6 x Infrared LED, 12m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.) |
| Intelligent Functions |
Barrier Control (1ch Relay Out), Vehicle Data Structuring (Vehicle Size, Vehicle Colour & Vehicle Direction) |
| Interoperability |
N/A |
| IVS |
Yes |
| Lens / Iris |
3.2 ~ 10.5mm Motorised Varifocal Lens with Auto Iris |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
WDR (96dB) |
| Max. Detection Speed |
30km/h |
| Max. Resolution |
2.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.005 Lux/F1.3 (Color), 0 Lux/F1.3 (IR on) |
| Net Weight |
1.9kg |
| Noise Reduction |
3D DNR |
| Operating Conditions |
-30° ~ +65° C / Less than 90% RH |
| Pan/Tilt/Rotation |
N/A |
| Picture Control |
N/A |
| Power Consumption |
<20W |
| Power Supply |
12VDC / 24VAC / PoE+ (802.3at) |
| RAM / ROM |
N/A |
| Resolution |
1080p (1920 x 1080) to D1 (704 x 576) |
| S/N Ratio |
N/A |
| Series |
Traffic AI Series |
| Smart Scene Adaptive (SSA) |
N/A |
| Streaming Method |
Unicast / Multicast |
| Tri-Axis Mounting |
No |
| Vandal Resistance |
IK10 |
| Vehicle Recognition |
Vehicle Type, Logo, Series, Color, Number Plate, Features of Driver and Front-seat Passenger, Vehicles without Plate. Vehicle recognition rate ≥95% |
| Video Compression |
H.265 / H.264M / H.264H / H.264B / MJPEG |
| Video Interface |
N/A |
| Weather Resistance |
Yes |
| White Balance |
Auto / Manual |
