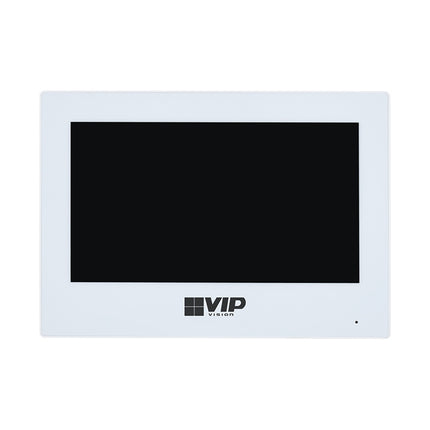

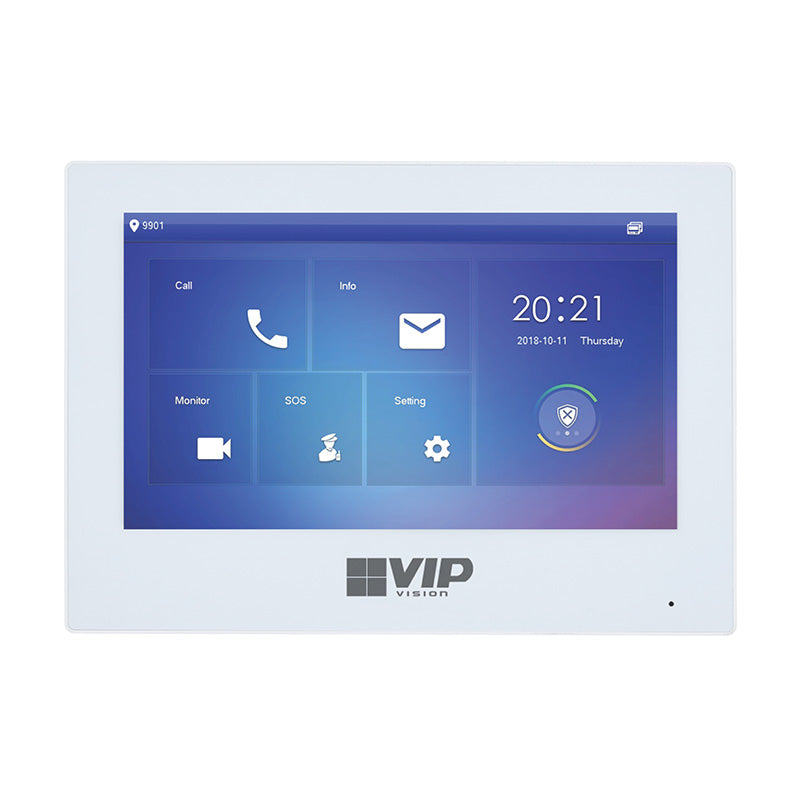

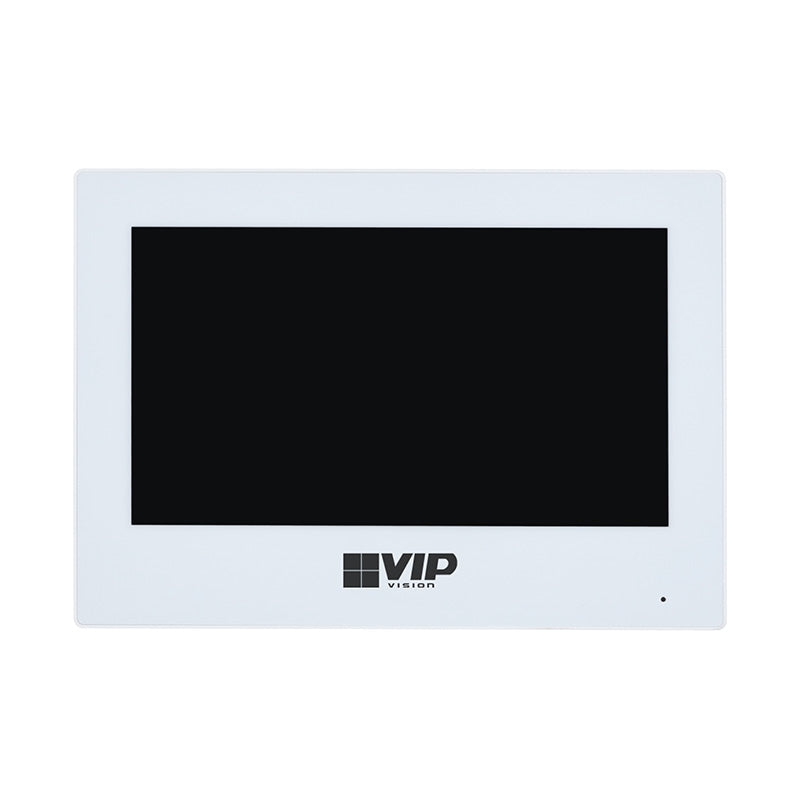

Residential Series Touchscreen IP Intercom Monitor (White)
The INTIPMONKW is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.
Product Features:
✔️ Record and snapshot video calls/messages
✔️ All calls and messages logged
✔️ Prevent unwanted calls with Do Not Disturb mode
✔️ Alarm system integration
✔️ 7" TFT capacitive touch screen
✔️ MicroSD storage (up to 32GB), card sold separately
*Unit must be opened to access microSD slot
Tech Specs
| Alarm Support |
Yes; 6 Input channels / 1 output channel |
| Audio Input |
Omni-directional Microphone |
| Audio Output |
Embedded Loudspeaker |
| Bidirectional Talk |
Support |

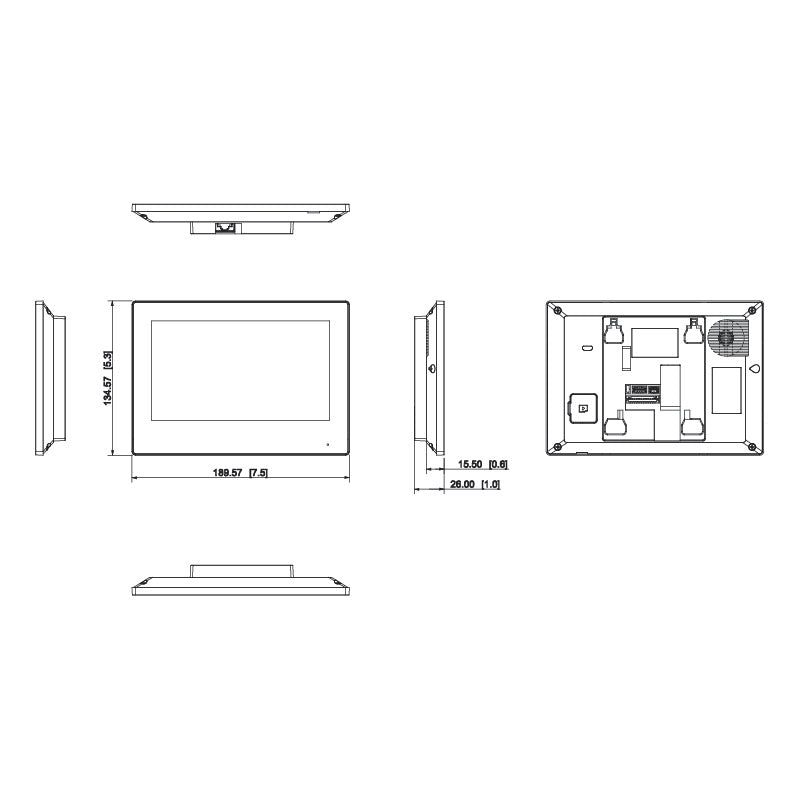

| Dimensions |
189.6mm x 134.6mm x 26mm |
| Display Resolution |
1024 x 600 |
| Display Size |
7" Colour TFT LCD |
| Ethernet |
10M/100Mbps adaptive |
| Installation |
Surface Mount |
| Internal Capacity |
MicroSD Slot, up to 32GB |
| Main Processor |
Embedded Processor |
| Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
| Operating Temperature |
-10 ~ +55°C / 10 ~ 90%RH (max.) |
| Operational Input |
Capacitive touchscreen |
| Power Consumption |
Operation < 6W |
| Power Input |
12VDC / 1A, PoE (802.3af) |
| Video Compression |
H.264 ; H.265 |
| Weight |
0.34kg |
