Expand your wiring and installation options with the useful Watchguard™ range of relay modules. Featuring heavy duty, low-current, high sensitivity and break-away modules, you’ll always have the perfect relay for the job.
Series features:
• Relay modules for any application where switches are required
• Pre-wired to easy-to-install modules
• Screw terminals allow easy installation without soldering or other time-consuming connections
• Wide-selection available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
Features:
• 12/24VDC Trigger Voltage
• One 7A Form C SPDT Relay per module

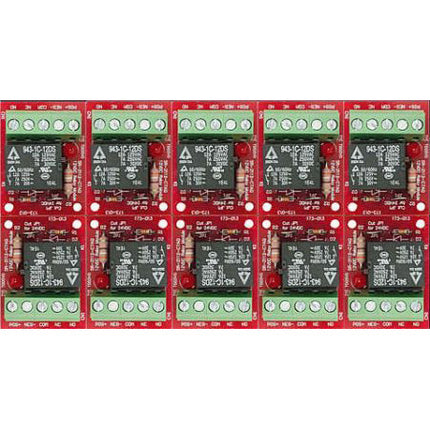

• Includes 10 relay modules on a single board, with an easy break-away feature for use as individual modules. Works great with alarm panels.
Downloads
Tech Specs
| Specification |
Details |
| Current Draw |
35mA@12VDC / 40mA@24VDC |
| Dimensions |
40 x 30 x 20 mm (per module) |
| No. of Relays |
1 |
| Operating Voltage |
12/24 VDC |
| Relay Ratings |
7A |
| Relay Type |
SPDT |
| Trigger Voltage |
12/24 VDC |
| Voltage Selection |
Jumper |
| Weight |
20g (per module) |
1-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
