| Load Capacity |
Wall Mount: 30kg / Hinged Shelf: 10kg |
| Materials |
Quality cold rolled steel, powder c |
| Weight |
17kg 18.5kg with packaging |
| Dimensions (W x H x D) |
Closed: 650H x 585W x 185D / Open: 650 x 585 x 760mm |
| Wall Mount |
4 x Mounting Points |
| Wall Mount Dimensions (W x H) |
440 x 353mm |
| Power |
4 x Outlet PDU |

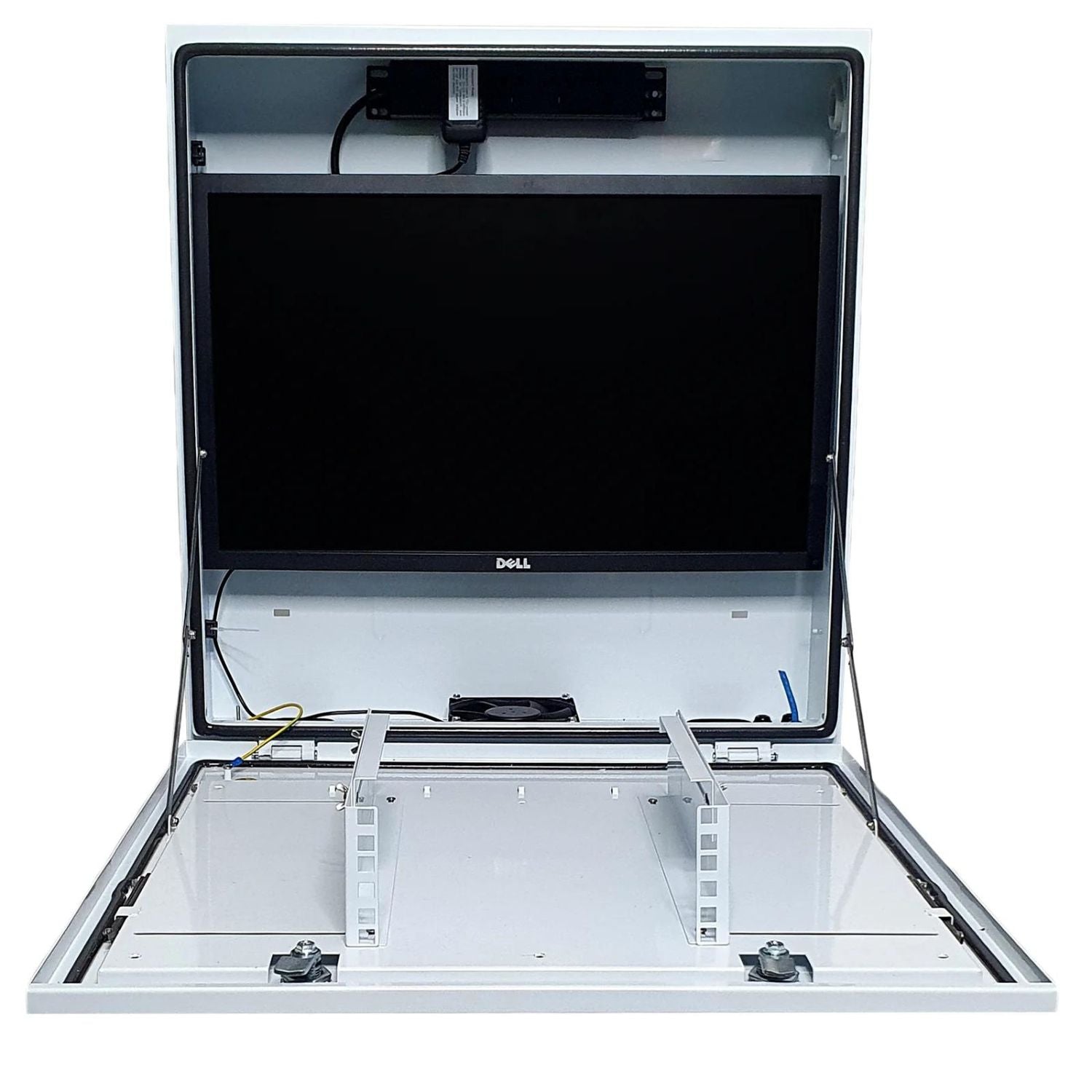

| Monitor |
Quick Clip Monitor Mounting bracket - Up to 24” Widescreen |
| VESA Mount |
75 / 100 - 2 Part Quick Clip on Monitor Brackets |

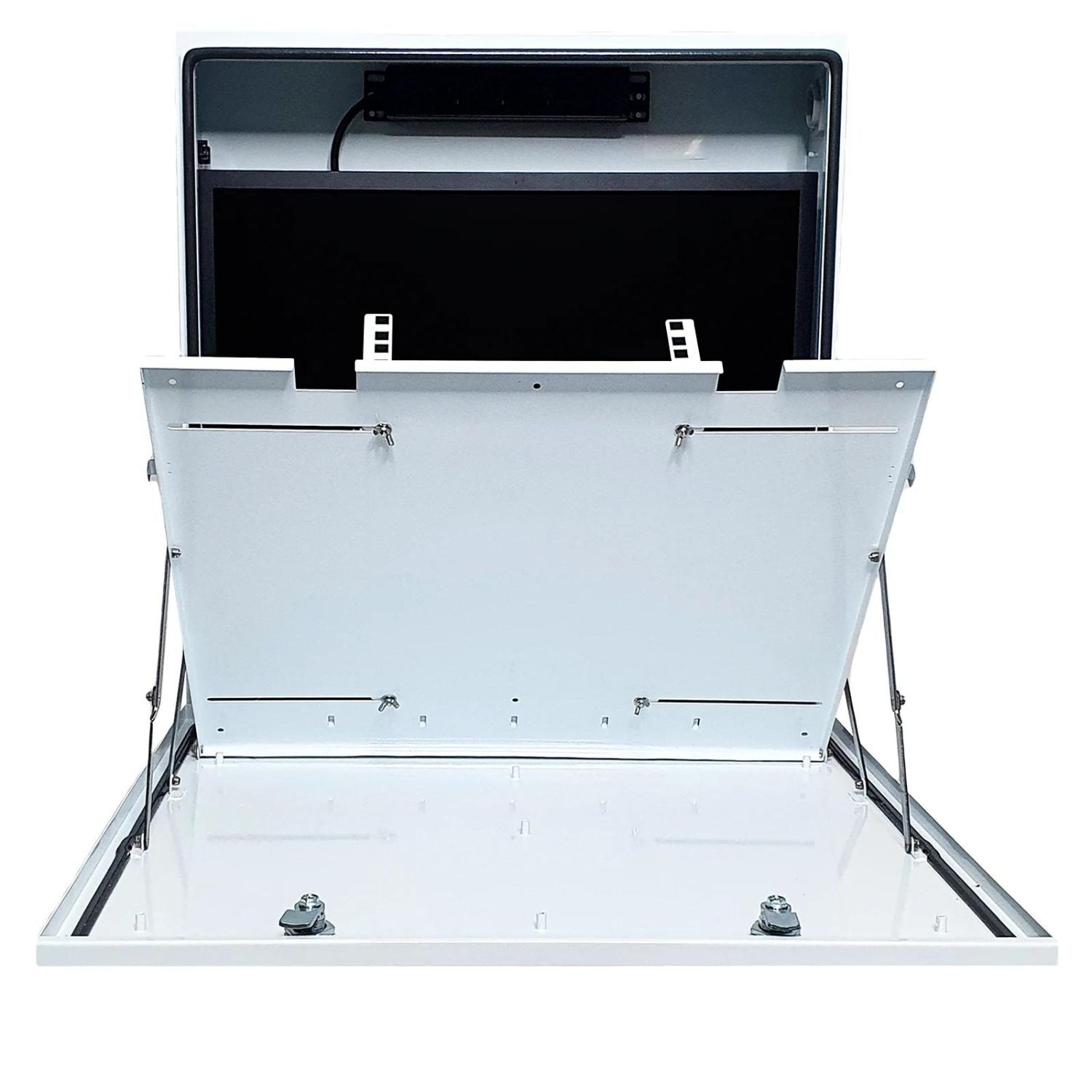

| Hinged Shelf |
Multiple use - Custom applications to suit user's requirements. |
| Ventilation |
Air Filter with Temp. controlled IP68 Fan 120x120x25mm On
@ 40oC Off 25oC |
| Cabinet Lock |
2 x locks on front door |
| Cable Management - Dry Compartment |
2x24 12mm knock-outs to suit M12 IP68 Gland -
2 oval rubber sealed cut-outs
|
| Cable Management - Wet Compartment |
2 x 4 circular knock-out (2x25mm / 1x40mm 1 x 50mm) suited to PVC screw adapters |
