| Load Capacity |
Load Capacity Wall Mount: 30kg / Hinged Shelf: 10kg |
| Wall Mount Dimensions (W x H) |
4 x Mounting Points 440mm(W) x 353mm(H) |

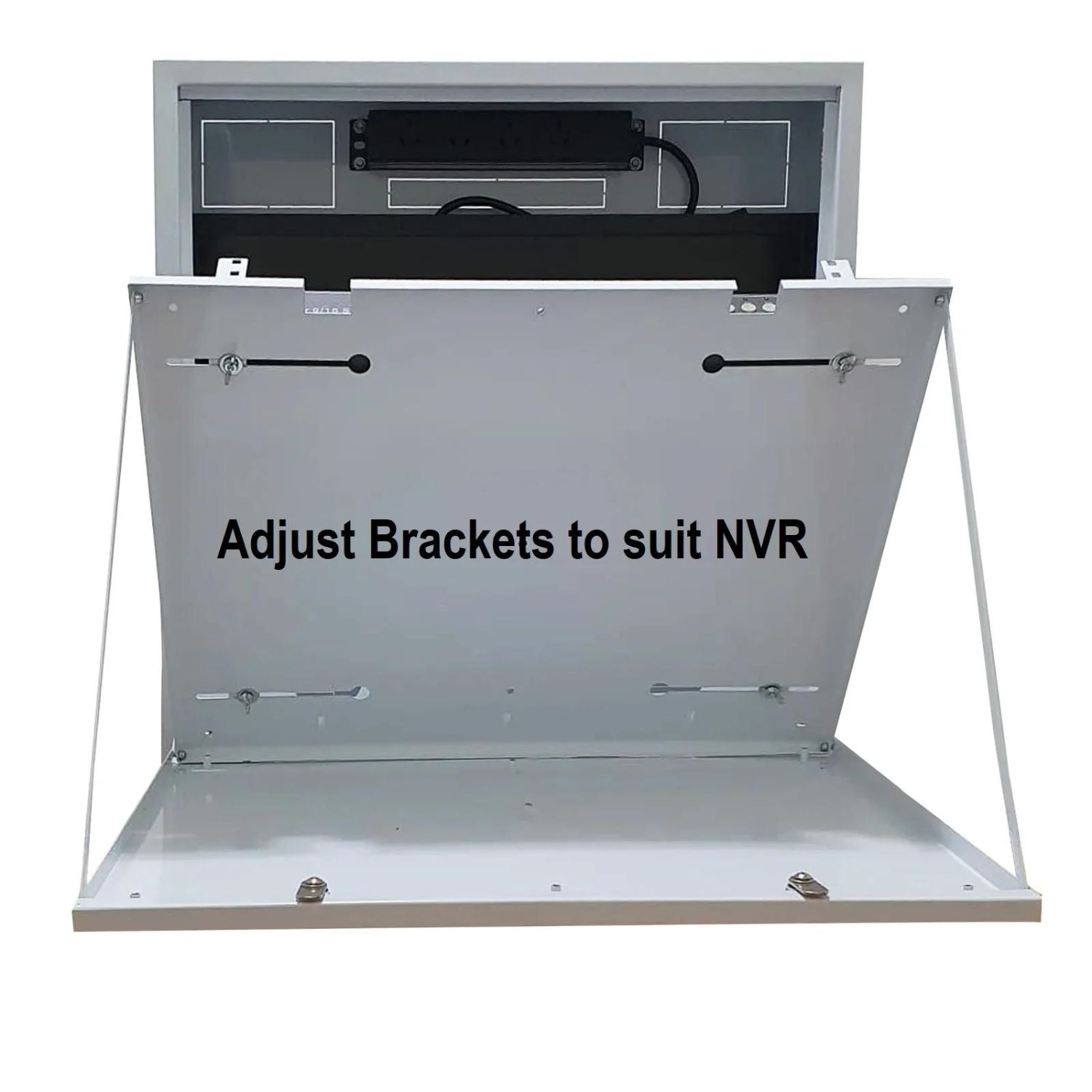

| Hinged Shelf NVR Base |
2RU 200 - 490mm(W) and 400mm(D). |
| Monitor |
Quick Clip Monitor Mounting bracket - Up to 24” Widescreen |
| VESA Mount |
75 / 100 - 2 Part Quick Clip on Monitor Brackets |
| Ventilation |
2 x 50mm fan slots ( Fan Kit included) |
| Cabinet Lock |
2 x locks on front door |
| Cable Management |
12 Punch outs on 4 sides - rear panel cable entry slot |
| Power |
4 x Outlet PDU with IEC-C14 connector - Power Cable incl. |
| Power Point |
4 x 4”x2” Punch-out for Internal Mains Power Supply (4”x2” Plug) |
| Materials |
Quality cold rolled steel, powder coated |
| Weight |
15kg 16.5kg with packaging |
| Dimensions (W x H x D) |
Closed: 585 x 635 x 180mm / Open: 585 x 635 x 712mm |
