Description

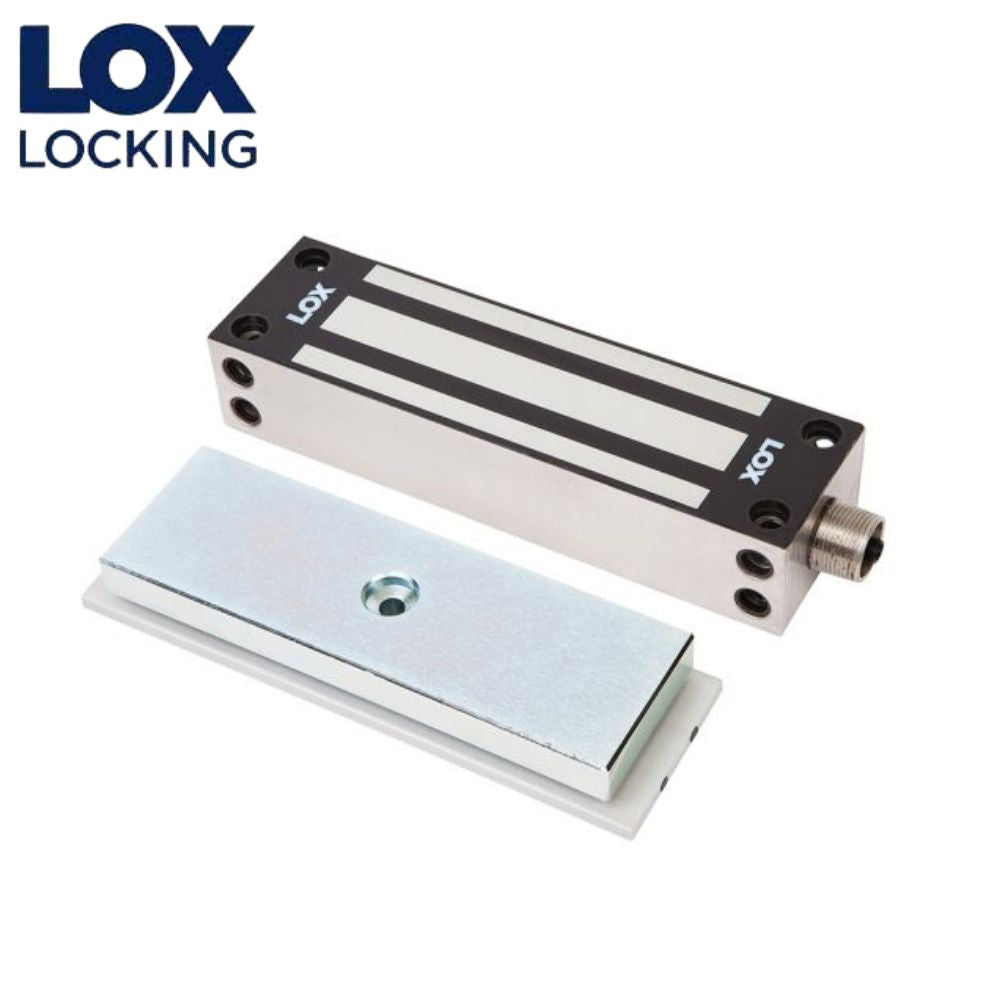

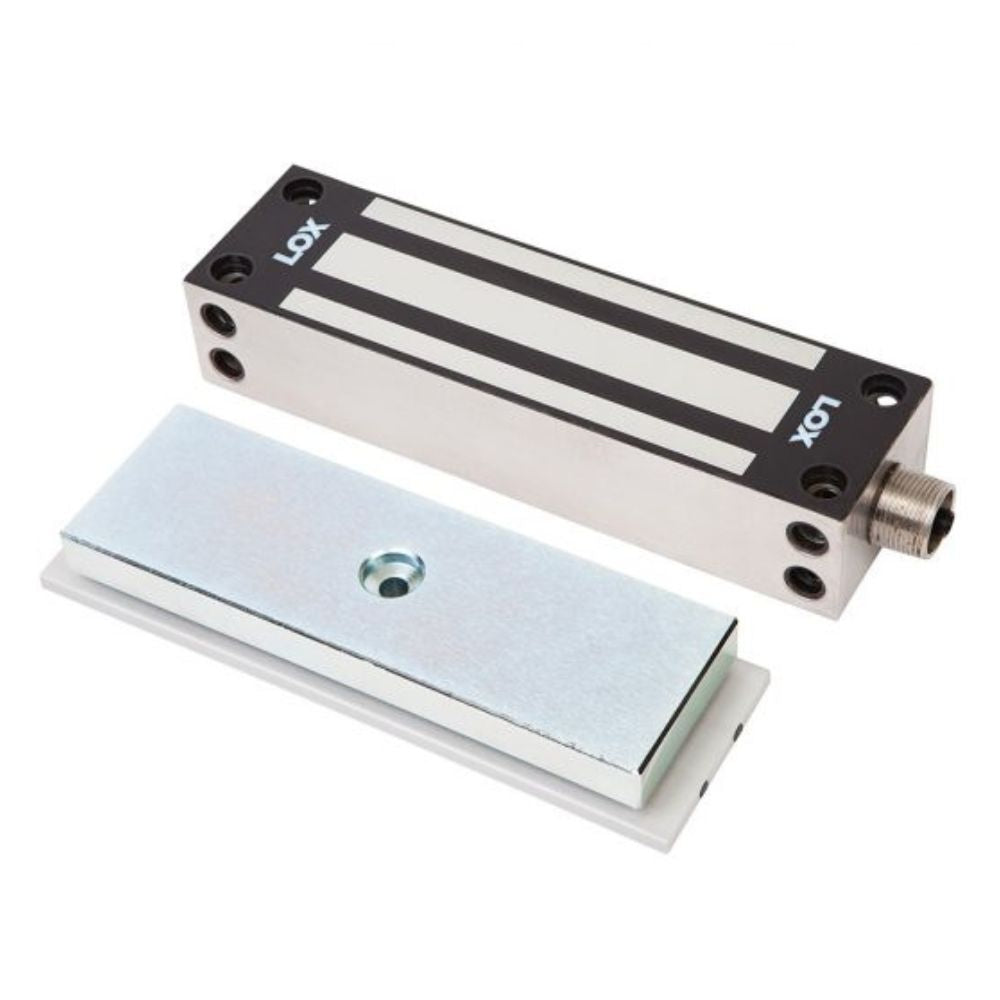

The LOX EM5000 has been designed with a fully enclosed stainless-steel housing. It is the most reliable solution for true external applications exposed to wind and weather. The EM5000 lock is IP67 rated and a proven locking solution in the harshest environments around Australia such as surf-lifesaving clubhouses and the like. It has a high holding force of up to 630kg a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC.
The EM5000 Electro Magnetic Gate Lock has a Lock Status (LSS) monitoring feature by Hall- Effect and comes with a Lifetime Warranty. An Anti-Tamper-Mounting-Plate to prevent hostile attacks on the dome-nut-fixing bolt comes as standard.
EM5000 Facts
- Up to 630kg holding force
- Lock Status monitoring Sensor (LSS)
- Stainless 304 steel body housing
- Weather resistant IP67
- Lifetime warranty
- Anti-Tamper Mounting Plate
- CE/RCM
- No residual magnetism
Datasheet
LOX Weather Resistant Electro Magnetic Gate Lock - EM5000
Tech Specs
| EM5000 |
SINGLE ELECTRO MAGNETIC GATE LOCK MONITORED |
| HOLDING STRENGTH |
UP TO 630KG |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 480mA 24VDC = 240mA |
| APPROVALS |
CE & C-TICK |
| LSS MONITORING |
LSS LOCK STATUS SENSOR (HALL EFFECT) |
| ENVIRONMENTAL |
IP67 RATED, OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
