Description

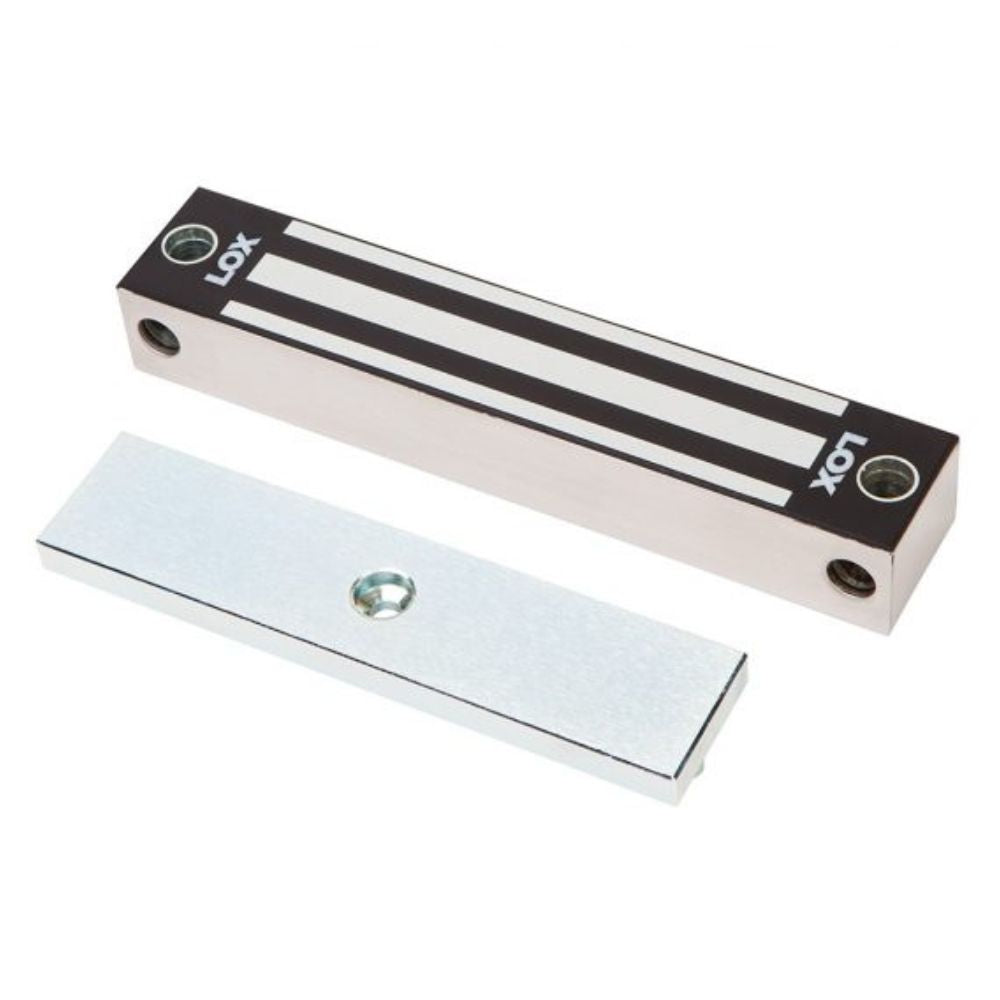

The LOX EM4500 has been designed with a fully enclosed stainless-steel housing. It is one of the most reliable locking devices for true external applications exposed to wind and weather. The EM4500 lock is IP67 rated and a proven locking solution in the harshest environments around Australia. It has a holding force of up to 200kg a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC.
The EM4500 Mini Electro Magnetic Gate Lock has a Reed Switch monitoring feature and comes with a Lifetime Warranty.
EM4500 Facts
- Up to 200kg holding force
- Lock Status monitoring Sensor (LSS)
- Stainless 304 steel body housing
- Weather resistant IP67
- Lifetime warranty
- CE/RCM
- No residual magnetism
Datasheet
LOX MINI Weather Resistant Electro Magnetic Gate Lock - EM4500
Tech Specs
| EM4500 |
WEATHER RESISTANT ELECTRO MAGNETIC MINI GATE LOCK MONITORED |
| HOLDING STRENGTH |
UP TO 200KG |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 360mA 24VDC = 180mA |
| APPROVALS |
CE & C-TICK |
| DSS MONITORING |
DOOR STATUS SENSOR (REED SWITCH) |
| ENVIRONMENTAL |
IP67 RATED, OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
