Description
Lockwood Padde Series Z4 and Z8 Single Monitored Electromagnetic Locks
The Single Series Electromagnetic Locks operate with holding forces from 250kg up to 580kg. Covering a range of applications the Z4 and Z8 Electromagnets are ideal for applications from standard doors through to high use commercial swing doors.
With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: refer to the technical data overleaf
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitoring: Reed Switch monitoring on all models. Hall-Effect monitoring on Z4 and Z8 models.
- Instantaneous release: smart electronics on the Z Series Electromagnets eliminate residual magnetism
SKU: EMZ8-DM

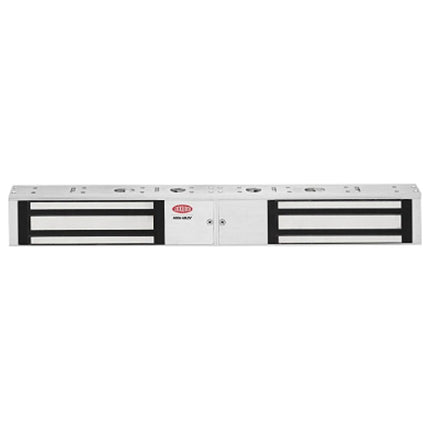

Lockwood EMZ8 E/MAGNET 12/24VDC DOUBLE MONITORED - EMZ8-DM
For additional details including technical specifications, please refer to the official website or the datasheet.
Datasheet for EMZ8-DMInformation for EMZ8-DM
