Description

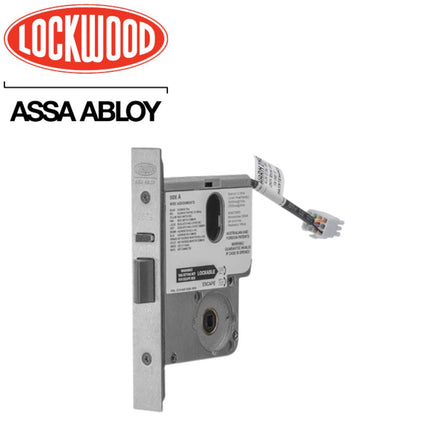

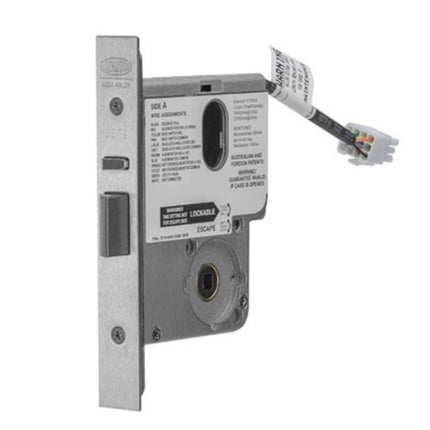

Lockwood 3579HS series electric mortice lock. Less cylinder. Suitable for unique applications where fail secure functionality is required externally with fail safe functionality on the inside.
Features
- 3579HS monitored electric mortice lock.
- 2 x 2 mm stainless steel plates fixed through the lock provide increased strength to the cylinder and latch areas of the lock.
- All handing type features of the lock including hub selection, anti-lockout screw and reversible latch are accessible without removing the plates.
- Field selectable Fail Safe (inside only) or Fail Secure function (outside only).
- 60 mm backset, 89 and 127 mm also available.
- Solenoid locking/unlocking of lever handle (inside only).
- Operating voltage 12-24Vdc.
- Operating Current:
500mA (max) 80mA holding @ 12Vdc
275mA (max) 50mA holding @ 24Vdc
- Includes 1.6 metre cable with 12 pin socket.
- Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
- Reversible for left and right hand doors opening in or out.
- Suits door thickness 32-50 mm.
- Protection diode is included for back EMF suppression.
- Reed switch located inside the housing.
- Supplied less cylinder.
- Fire rated.
- SCEC endorsed for secure areas.
- Finished in satin chrome.
