Description

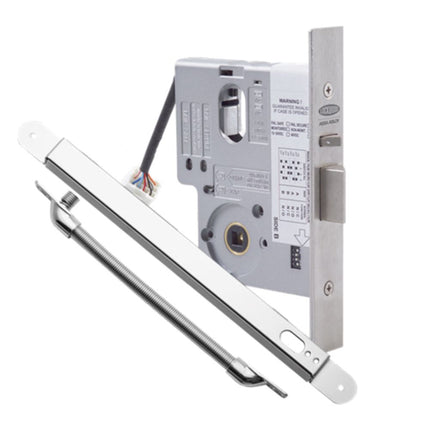

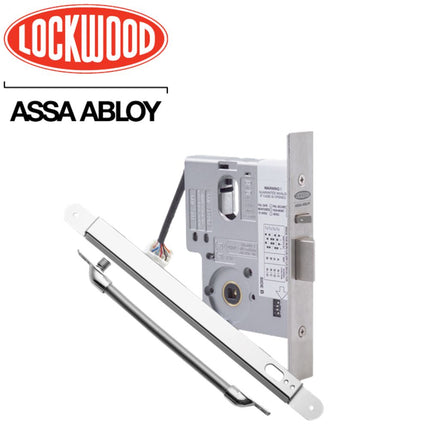

Lockwood 3570 series electric mortice lock. Less cylinder. Includes LWLC8810 cable transfer.
Features
- 3570 monitored electric mortice lock.
- Field selectable Fail Safe or Fail Secure function.
- 60mm backset, 89 and 127mm also available.
- Solenoid locking/unlocking of lever handles.
- Operating voltage 12-24Vdc.
- Operating Current:
500mA (max) 80mA holding @ 12Vdc
275mA (max) 50mA holding @ 24Vdc
- Includes 1.6 metre cable with 12 pin socket.
- Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
- Reversible for left and right hand doors opening in or out.
- Suits door thickness 32-50mm.
- Protection diode is included for back EMF suppression.
- Selectable on site for one or both lever handles being locked by solenoid without dismantling the lock.
- Reed switch located inside the housing.
- Conforms with Level D3 (durability) Australian Lock Standard AS4145.2: 1993.
- Supplied less cylinder.
- Mortice lock can be converted from escape function to combination function by simple manipulation of hub snib.
- Fire rated.
- Finished in satin chrome.
