Description
What's in the Kit?
This wired IP security video surveillance kit includes the following devices:

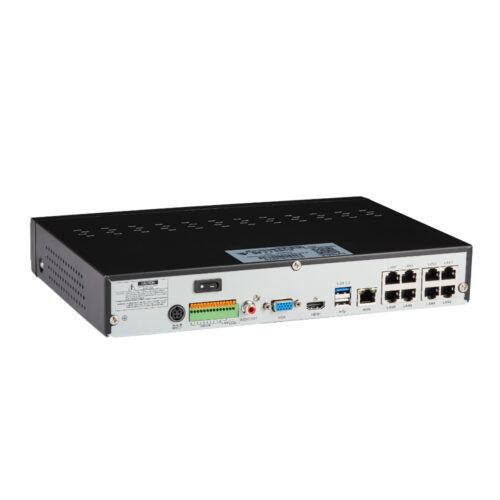

- 1 x IVSEC Network Video Recorder: 8-Channel, 12MP, X-Range - IVNR308XC
- 8 X IVSEC Security Camera: 8MP Turret, 2.8mm, SMD, Adv. Deter, Full-Colour - IVNC323ADX-BLK
- 8 X IVSEC CAT5e Ethernet Patch Cable (18m) - IVNGE1963
- 1 x Seagate SkyHawk Surveillance HDD*
*Only included on variants with a specified capacity. It will come pre-installed in the NVR.
Brackets and mounts are not included but are available for purchase.
IVSEC NC323ADX Security Camera
SONY 8MP (4K) Sensor at 25 photos per second. Top-tier in fixed lens cameras. There has been a technological leap in AI analytics/intelligent video implemented in this camera. Full colour at night. Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night. Great for general wide-angle view, indoors or outdoors.
Camera Features
-
SONY 1/2.8″ Progressive CMOS. 8MP (3840 x 2160) 25fps.
- Fixed 2.8 mm Lens. 106° Horizontal FoV. 25m Infrared Range.
- Built-in Microphone and Speaker, Two-Way Audio.
- LED Types IR, Warm White, Red and Blue
- Face Recognition, Licence Plate Recognition, Perimeter Intrusion Detection, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, and Rare sound detection.
- SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction.
- H.265 Encoding Video Compression.
- Power over Ethernet and DC12V.
- IP66 Weatherproof.
- Vandal Resistant.
- Operating Conditions: -35ºC to 60ºC (31ºF-140ºF) Humidity: 20%-95% RH
- 3 Years Warranty
Recorder Features
- 8 channels, 8 PoE ports, 12MP Resolution.
- Maximum 128 Mbps.
- HDD Bays x 1, Up to 16TB per HDD
- H.265 Encoding Video Compression.
- Connectors: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On-off switch
- Operating Conditions: 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH
- 2 Years Warranty.
More Info
CRYSTAL CLEAR CLARITY
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
CATER TO YOUR SURVEILLANCE NEEDS
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
FULL VIVID COLOUR
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
DETER, DETECT, AND DEFEND
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion triggered smart night vision provides colour even in dark conditions.
MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
VIDEO MANAGEMENT SOFTWARE
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Video Storage Calculator
Seagate Video Storage Calculator
IVSEC cameras and recorders utilize H.265 video compression encoding.
Downloads
Camera Downloads
Recorder Downloads
Tech Specs
Camera Specifications
| Camera Type |
Turret |
| Image Sensor |
SONY 1/2.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Lens |
2.8 mm (H.FOV: 106°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
25 |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating |
IP66 |
| Operating Environment |
-35ºC to 60ºC (31ºF-140ºF) Humidity: 20%-95% RH |
| Dimensions |
Ø100 X 90mm |
| Weight (Net) |
0.312 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<7.2W |
| Connectors |
RJ-45 , DC Power Input, Reset Button |
| Outdoor Use |
Yes |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
25 |
| Day/Night Mode |
Schedule (Time Based), Full colour (white LEDS) or Day/Night (IR LEDS) |
| LED Types |
IR, Warm White, Red and Blue |
| Image Enhancement |
SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Audio Streaming |
Two-way audio (microphone with a distance [up to 8m] and speaker included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) |
Face Recognition, Licence Plate Recognition, Perimeter Intrusion Detection, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare sound detection |
| Cloud option (camera only) |
Dropbox |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| In The Box |
Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
Recorder Specifications
| Maximum Channels |
8 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1, 4, 6, 8, 9 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
16 |
| HDD Bays, Size |
Bays x 1, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
8 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/2A |
| Power Consumption |
8W （Without HDD） |
| Connectors |
HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Dimensions |
300 x 227 x 53 mm |
| Weight (kg) |
1 kg |
IVSEC
Originally part of the AUTREX group (est. 1991), IVSEC earned its place and became a prominent brand in quality surveillance solutions. IVSEC products are distributed internationally.
IVSEC provides intelligent video security product solutions for various customers from corporate security companies to commercial and residential end-users. Product solutions are based on reliability, ease-to-install and ease of use. Our IVSEC experts can help you select the correct security cameras, security systems, and biometrics to complete any project within your budget.
IVSEC declares that all products manufactured to date are compliant with the John S. McCain National Defense Authorization Act (NDAA) and do not contain any “telecommunications equipment or services” banned by the NDAA, nor do they employ any component or technology of any system -substantial, essential, critical, or otherwise- from the banned Chinese companies.
IVSEC is a wholly owned subsidiary of Media Hub Digital Smart Home Pty Ltd, a Proudly Australian Owned Company.
Warranty
The IVSEC Video Security Warranty covers defects in materials or broken components that could affect the regular operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.
Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.
- The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
- We will not cover inbound shipping of the return to us.
- We will cover outbound shipping for any replacements to the customer.
- We will need the serial number of the product and your order number.
- Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
