Description
What's in the Kit?

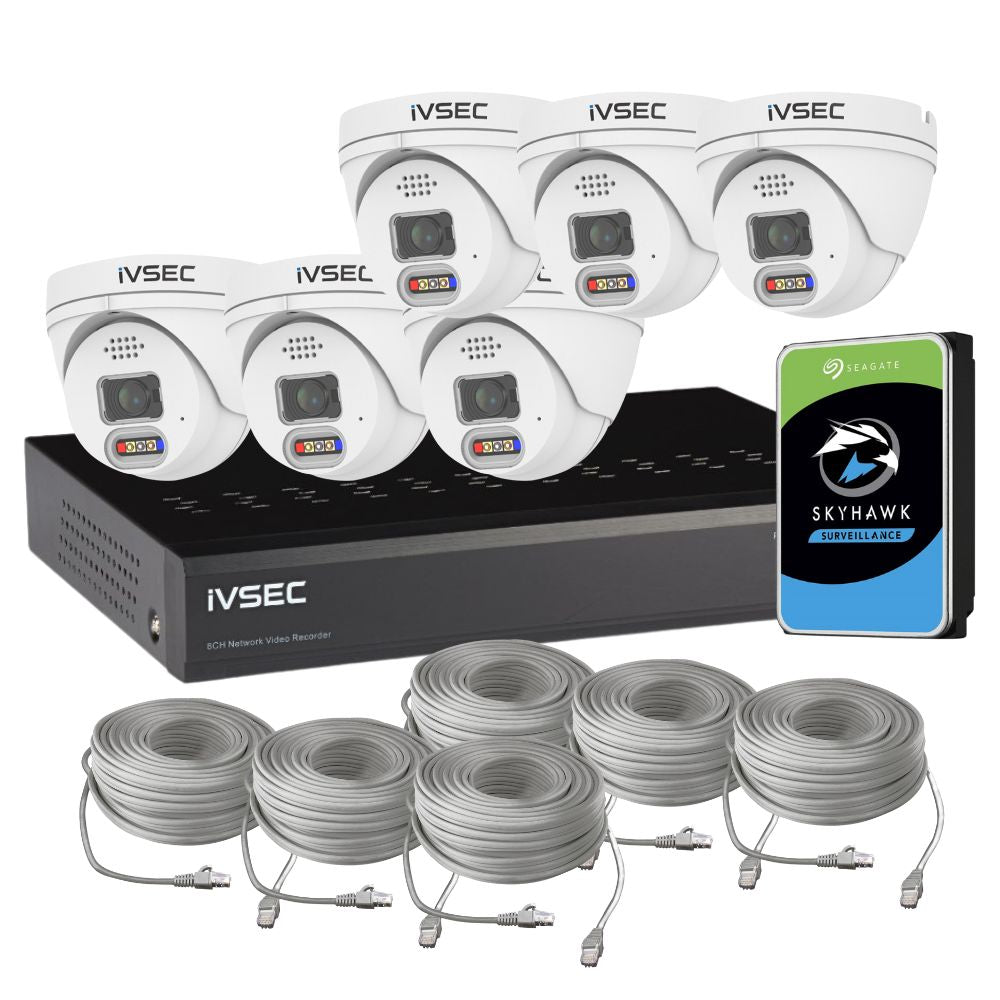

This wired IP security video surveillance kit includes the following devices:
- 1 x IVSEC Network Video Recorder: 8-Channel, 12MP, X-Range - IVNR308XC
- 6 X IVSEC Security Camera: 4MP Turret, 2.8mm, SMD, Adv. Deter - IVNC119XA
- 6 X IVSEC CAT5e Ethernet Patch Cable (18m) - IVNGE1963
- 1 x Seagate SkyHawk Surveillance HDD*
*Only included on variants with a specified capacity. It will come pre-installed in the NVR.
Brackets and mounts are not included but are available for purchase.

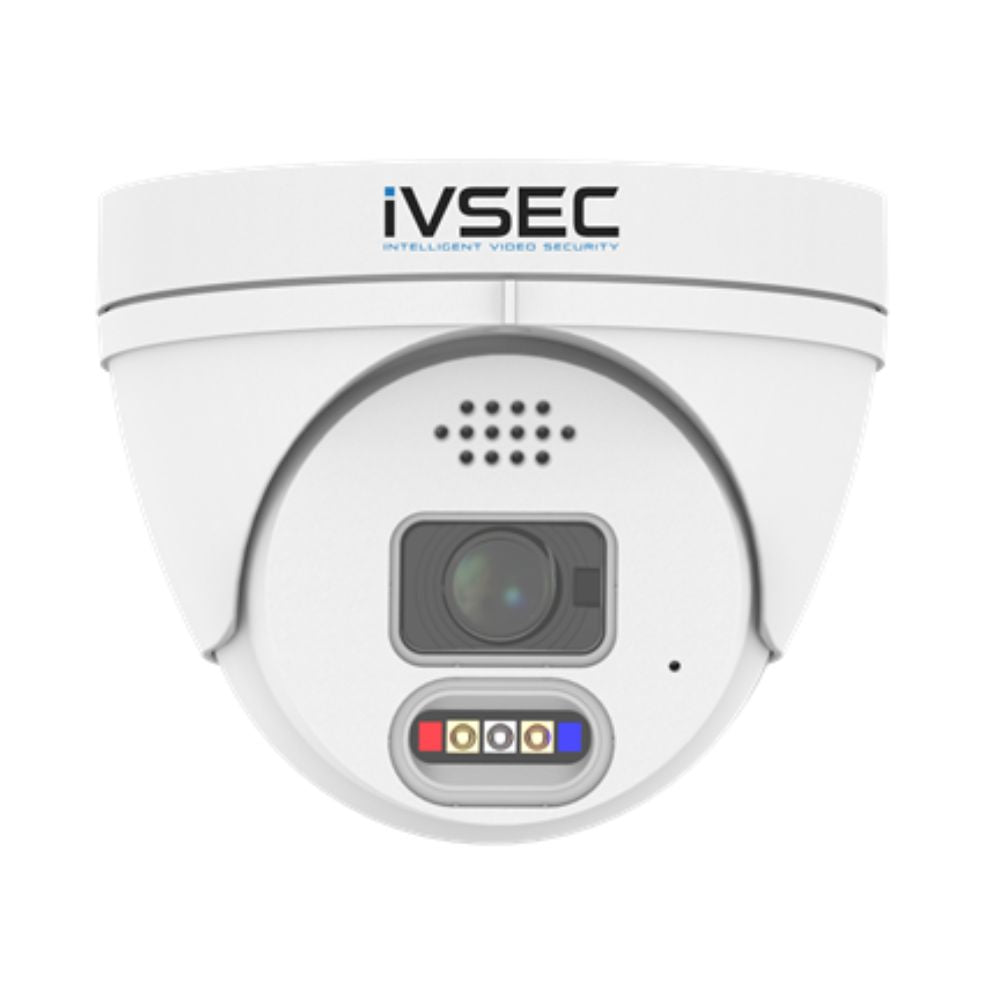

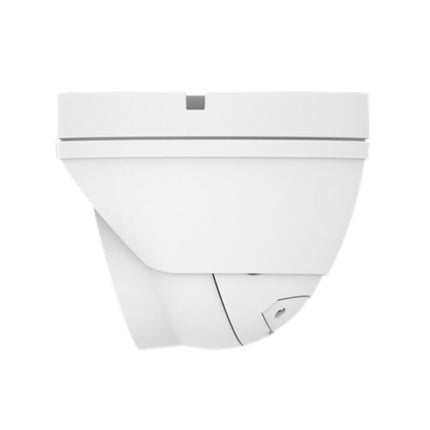

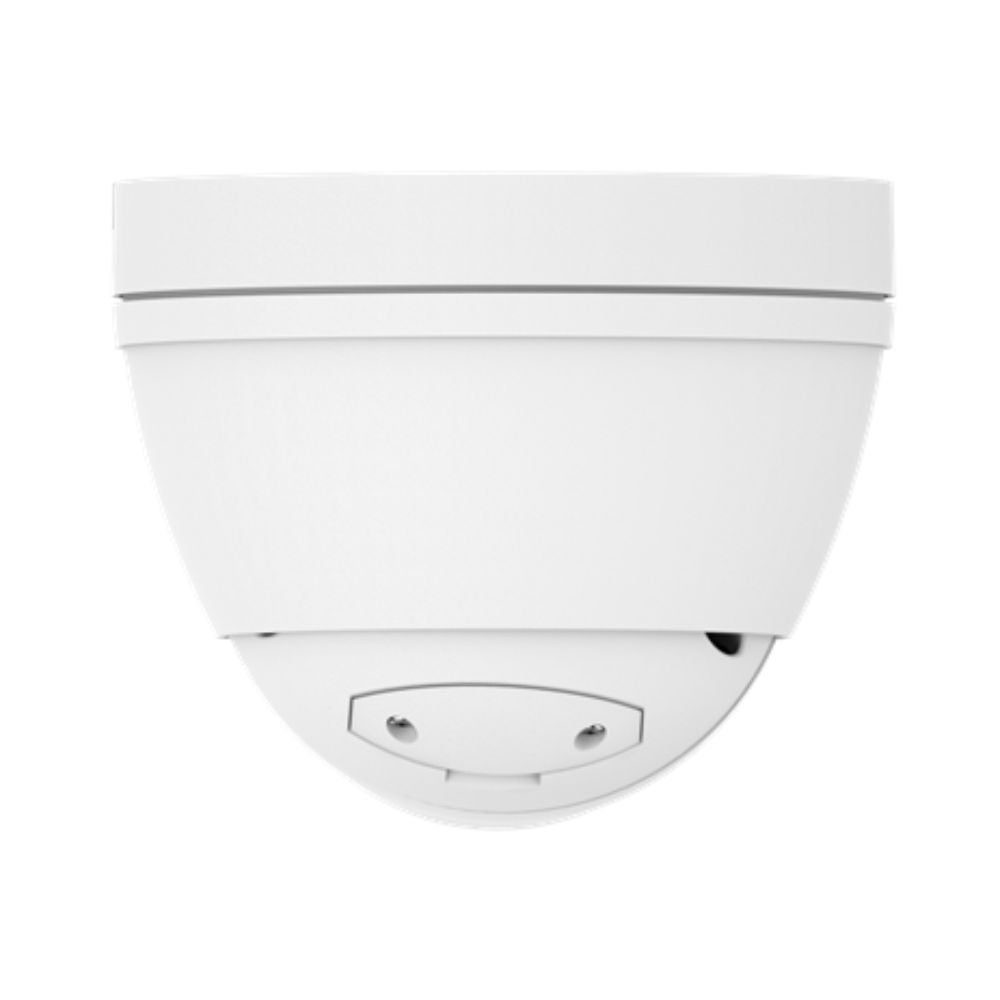

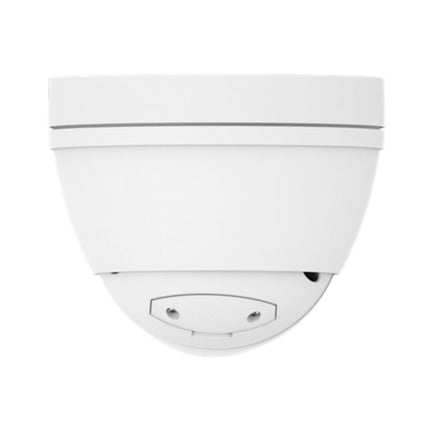

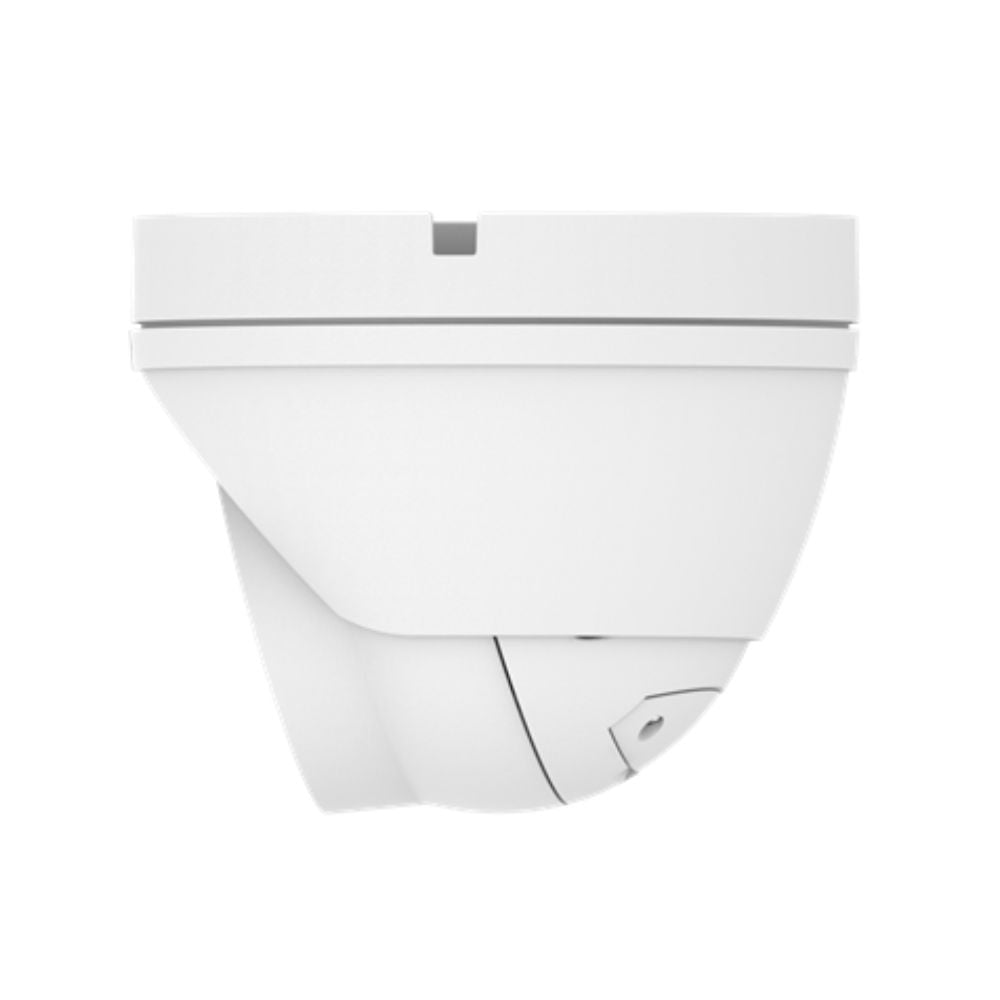

IVSEC NC119XA Security Camera
Tons of features packed into one well priced camera. Excellent proactive deterrent using Red and Blue light to strobe. Speak to talk through the mobile app or set off the siren. This camera has Smart Motion Detection that will pick up humans and vehicles to reduce false alarms.
Camera Features
- 1/3″ Progressive CMOS Sensor. 4MP (2560 x 1440) 25fps.
- Fixed 2.8 mm Lens. 95° Horizontal FoV. 25m Infrared Range.
- Built-in Microphone and Speaker, Two-Way Audio.
- Smart Motion, Perimeter Intrusion, Line Crossing Detection.
- Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
- H.265 Encoding Video Compression.
- Power over Ethernet and DC12V.
- IP66 Weatherproof.
- Vandal Resistant.
- Operating Conditions: -30 – +55°C/less than ≤ 95% RH
- 3 Years Warranty
Recorder Features
- 8 channels, 8 PoE ports, 12MP Resolution.
- Maximum 128 Mbps.
- HDD Bays x 1, Up to 16TB per HDD
- H.265 Encoding Video Compression.
- Connectors: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On-off switch
- Operating Conditions: 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH
- 2 Years Warranty.
More Info
CRYSTAL CLEAR CLARITY
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
CATER TO YOUR SURVEILLANCE NEEDS
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
FULL VIVID COLOUR
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
DETER, DETECT, AND DEFEND
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion triggered smart night vision provides colour even in dark conditions.
MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
VIDEO MANAGEMENT SOFTWARE
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Video Storage Calculator
Seagate Video Storage Calculator
IVSEC cameras and recorders utilize H.265 video compression encoding.
Downloads
Camera Downloads
Recorder Downloads
Tech Specs
Camera Specifications
| Camera Type |
Turret |
| Image Sensor |
1/3″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
4 |
| Maximum Video Resolution |
2560 x 1440 |
| Lens |
2.8 mm (H.FOV: 95°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
25 |
| Video Compression |
H.265, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating |
IP66 |
| Operating Environment |
-30 – +55°C/less than ≤ 95% RH |
| Dimensions |
100×90 mm |
| Weight (Net) |
0.22 |
| Accessories |
IV2422X, IV2477X, IV2433X, IV2444X, IV2455X, IV2457X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<5W |
| Connectors |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
25 |
| Day/Night Mode |
Full color (Auto) |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
2 Streams |
| Audio Streaming |
Yes (microphone and speaker included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) |
Smart Motion Detection, Perimeter Intrusion Detection, Line Crossing Detection |
| Cloud option (camera only) |
Dropbox |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| In The Box |
Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
Recorder Specifications
| Maximum Channels |
8 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1, 4, 6, 8, 9 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
16 |
| HDD Bays, Size |
Bays x 1, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
8 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/2A |
| Power Consumption |
8W （Without HDD） |
| Connectors |
HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Dimensions |
300 x 227 x 53 mm |
| Weight (kg) |
1 kg |
