Description

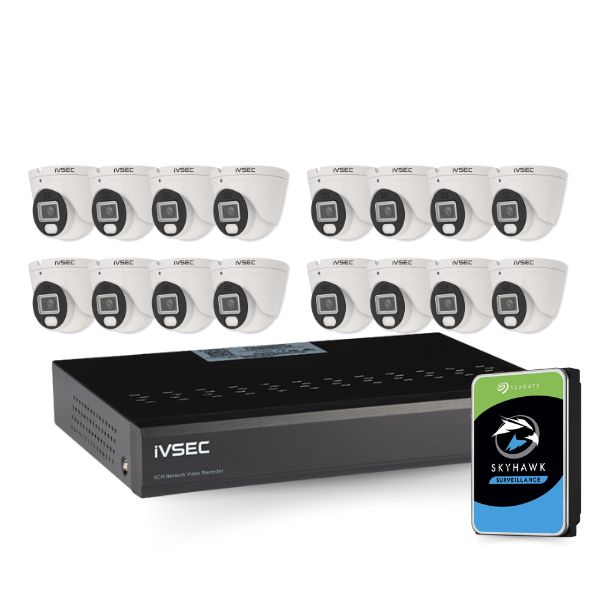

Kit Includes:
16 x IVSEC 8MP Adv. Deter Turret, Full-Colour - NC368ADX
1 x IVSEC 16-Channel 12MP NVR - NR316XC + Selected Hard DriveKit Features:
Full colour at night. Improvements have been made to the image sensor -1/1.8 enlarged image sensor enables more light to be gathered. Together with built-in warm-light LEDS, this creates an excellent full colour image. Quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.
CRYSTAL CLEAR CLARITY
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
CATER TO YOUR SURVEILLANCE NEEDS
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
FULL VIVID COLOUR
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
DETER, DETECT, AND DEFEND
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
PROFESSIONAL AI
Now capable of processing Advanced Al features, thanks to the inclusion of a specifically designed Al Chipset.
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion triggered smart night vision provides colour even in dark conditions.
MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
VIDEO MANAGEMENT SOFTWARE
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Datasheets
IVSEC 8MP Adv. Deter Turret, Full-Colour - NC368ADX - Information | Datasheet
IVSEC 16-Channel 12MP NVR - NR316XC - Information | Datasheet
Tech Specs

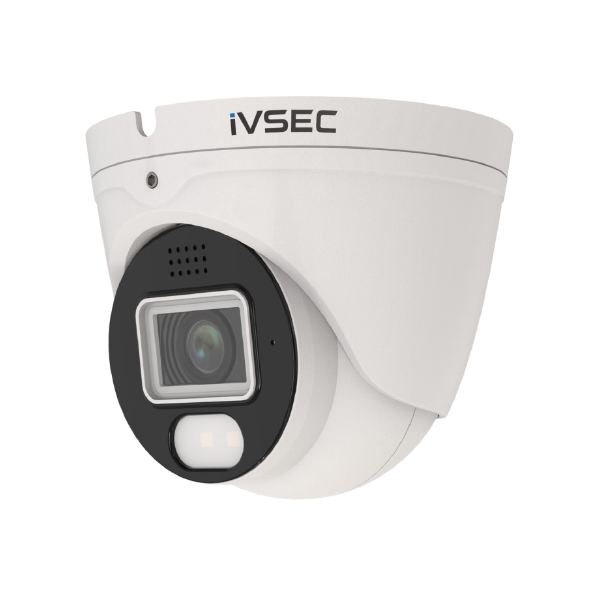

IVSEC 8MP Adv. Deter Turret, Full-Colour - NC368ADX
| Camera Type |
Turret |
| Image Sensor |
1/1.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Frames Per Second (FPS) |
15 |
| Lens |
2.8 mm (H.FOV: 112°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
N/A |
| LED |
Warm White, Red & Blue |
| Video Compression |
H.265, H.264 H.265+, H.264+, MJPGE |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes |
| Day/Night Mode |
Schedule (Time Based), Full colour or Day/Night (Warm White LEDS) |
| Image Enhancement |
Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Face Recognition, Human&Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Lenght Detection, License Plate Detection, Rare Sound Detection |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) |
Dropbox |
| Audio Streaming |
Yes (microphone and speaker included) |
| Ethernet |
Ethernet (10/100 Base-T) |
| Power Over Ethernet |
Yes |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
< 5.4W |
| Connectors |
RJ-45, DC Power Input, Reset Button |
| Operating Environment |
-30ºC to 55ºC (-22ºF-131ºF) Humidity: 20%-80% RH |
| In The Box |
Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs |
| Product Dimensions (H x W x L) mm |
98 x 115 x 115 |
| Packaging Dimensions (H x W x L) mm |
130 x 160 x 160 |
| Weight (Net) kg |
0.40 |
| Weight (Gross) kg |
0.60 |
| Warranty |
3 Year Warranty |

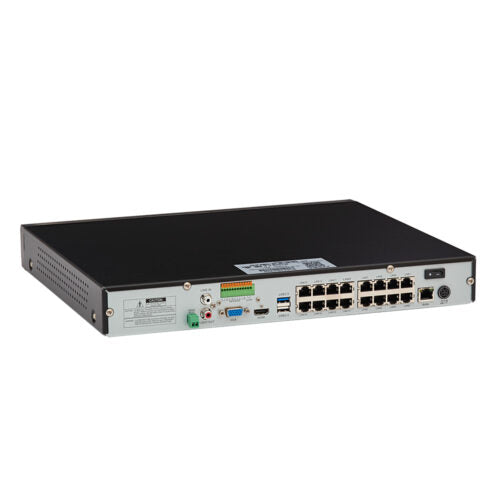

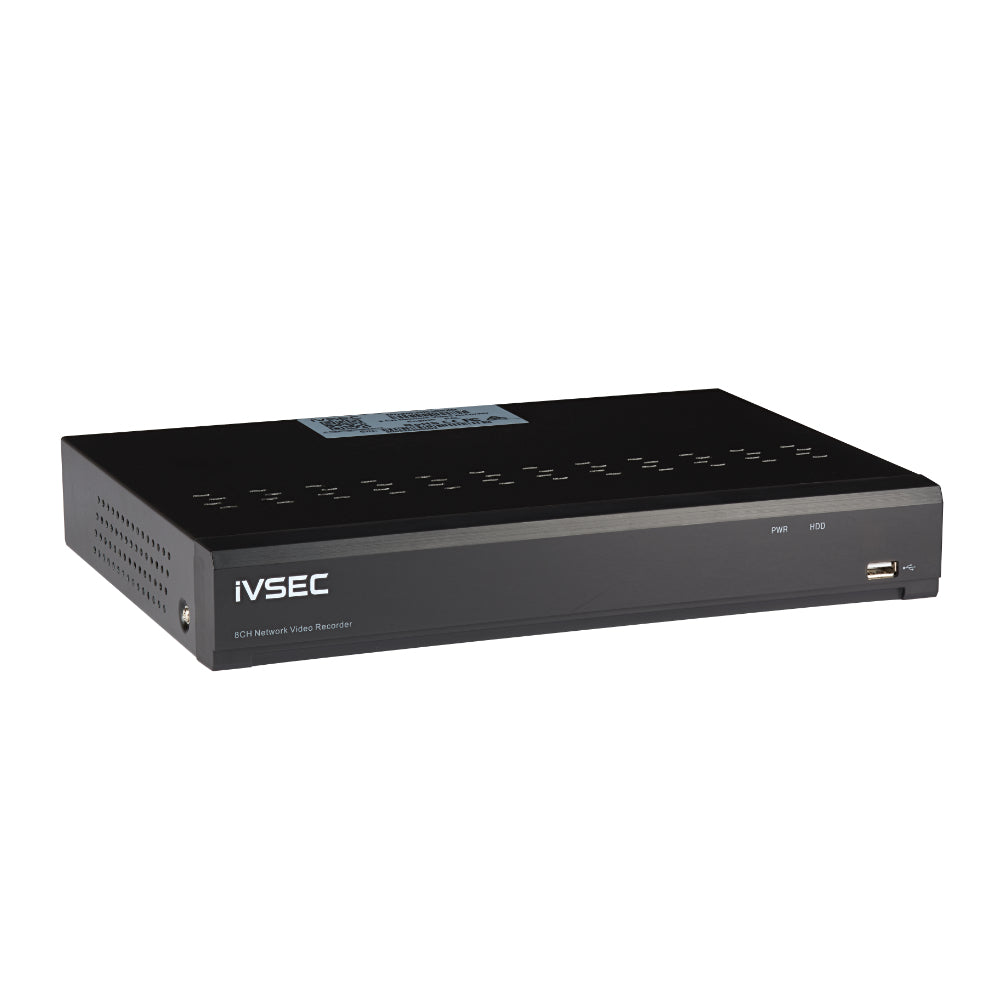

IVSEC 16-Channel 12MP NVR - NR316XC
| Maximum Channels |
16 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1/4/6/8/9/10/13/14/16 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
32 |
| HDD Bays, Size |
Bays x2, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
16 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/3.750A |
| Power Consumption |
10 W （Without HDD） |
| Connectors |
HDD: 3.5″ SATA HDD Slot x 2, USB3 Female x1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 16 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Dimensions |
380 X 320 X 54mm |
| Weight (kg) |
1.54 kg |
