Description

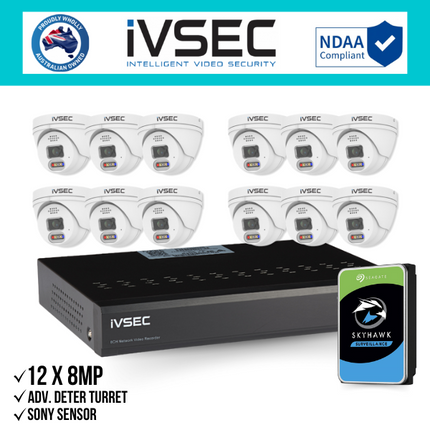

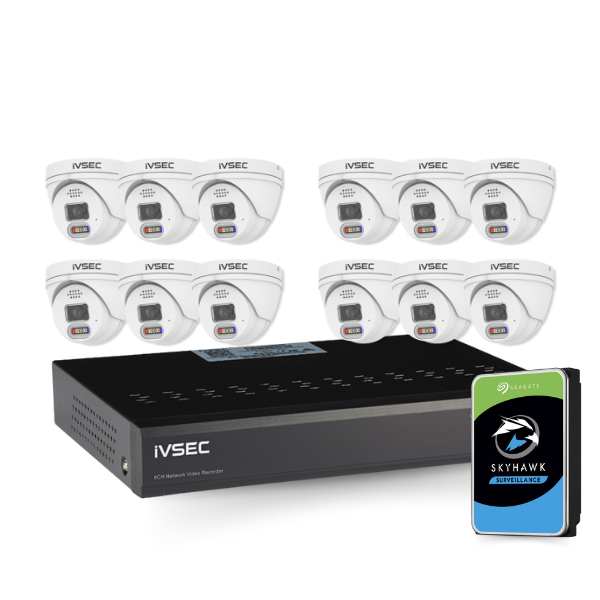

Kit Includes:
12 x IVSEC 8MP Adv. Deter Turret, SONY Sensor - NC323ADX
1 x IVSEC 16-Channel 12MP NVR - NR316XC + Selected Hard DriveKit Features:
SONY 8MP (4K) Sensor at 25 photos per second. Top-tier in fixed lens cameras. There has been a technological leap in AI analytics/intelligent video implemented in this camera. Full colour at night. Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night. Great for general wide-angle view, indoors or outdoors.
CRYSTAL CLEAR CLARITY
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
CATER TO YOUR SURVEILLANCE NEEDS
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
FULL VIVID COLOUR
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
DETER, DETECT, AND DEFEND
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
PROFESSIONAL AI
Now capable of processing Advanced Al features, thanks to the inclusion of a specifically designed Al Chipset.
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion triggered smart night vision provides colour even in dark conditions.
MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Datasheets
IVSEC 8MP Adv. Deter Turret, SONY Sensor - NC323ADX - Information | Datasheet
IVSEC 16-Channel 12MP NVR - NR316XC - Information | Datasheet
Tech Specs

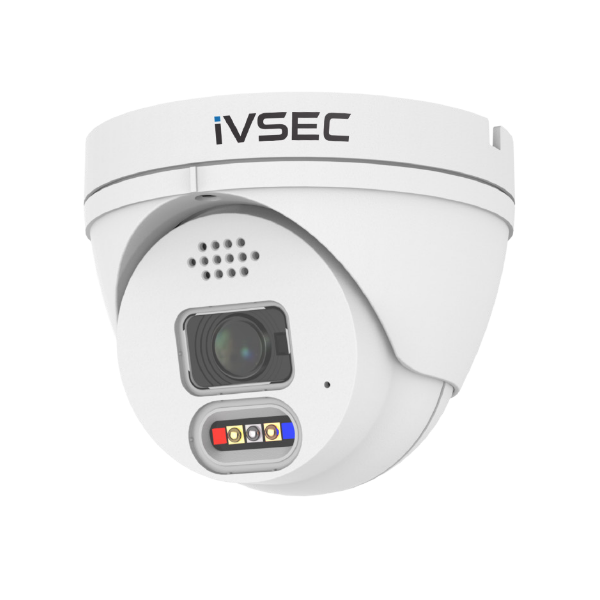

IVSEC 8MP Adv. Deter Turret, SONY Sensor - NC323ADX
| Camera Type |
Turret |
| Image Sensor |
1/2.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Frames Per Second (FPS) |
30 |
| Lens |
2.8 mm (H.FOV: 106°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
25 |
| LED |
IR, Red & Blue, White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T) |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Day/Night Mode |
Full color (Auto) |
| Image Enhancement |
Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Face Recognition, Human&Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Lenght Detection, License Plate Detection, Rare Sound Detection” |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) |
Dropbox |
| Audio Streaming |
Yes (microphone and speaker included) |
| Ethernet |
Ethernet (10/100 Base-T) |
| Power Over Ethernet |
Yes |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
< 14W |
| Connectors |
RJ-45, DC Power Input, Reset Button |
| Operating Environment |
-35~+60°C/less than ≤ 95% RH |
| In The Box |
Free Software available from FTP, Printed quick user guide, installation template, mounting screws and plugs |
| Product Dimensions (H x W x L) mm |
100 x 100 x 100 |
| Packaging Dimensions (H x W x L) mm |
120 x 140 x 140 |
| Weight (Net) kg |
0.44 |
| Weight (Gross) kg |
0.53 |
| Warranty |
3 Year Warranty |

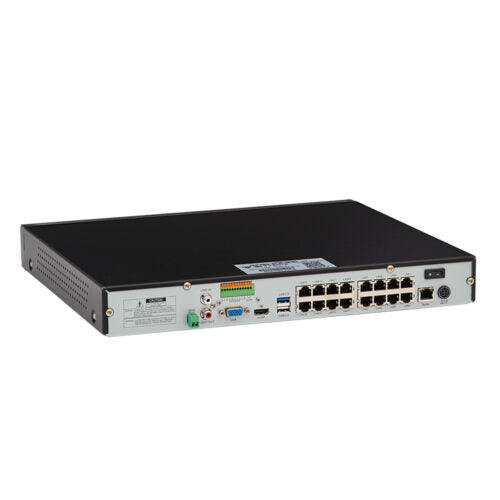

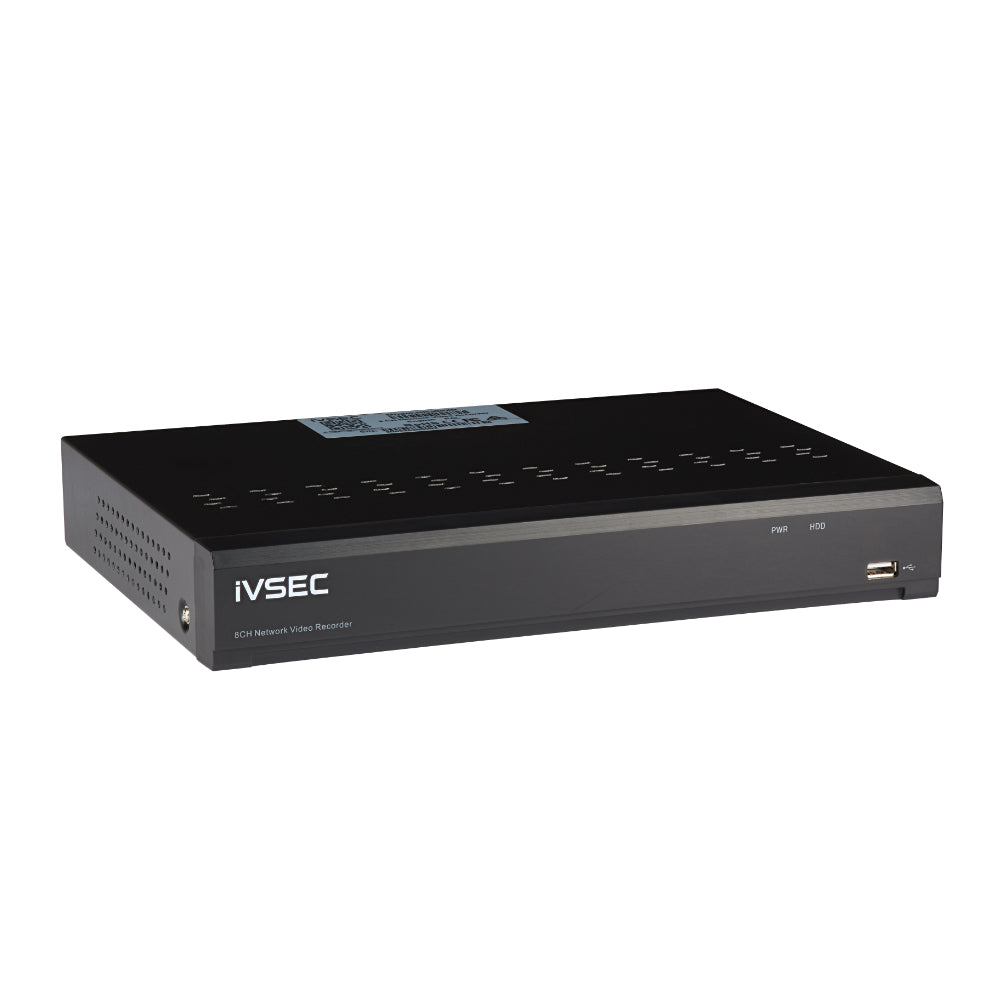

IVSEC 16-Channel 12MP NVR - NR316XC
| Maximum Channels |
16 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1/4/6/8/9/10/13/14/16 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
32 |
| HDD Bays, Size |
Bays x2, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
16 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/3.750A |
| Power Consumption |
10 W （Without HDD） |
| Connectors |
HDD: 3.5″ SATA HDD Slot x 2, USB3 Female x1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 16 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Dimensions |
380 X 320 X 54mm |
| Weight (kg) |
1.54 kg |
