Description

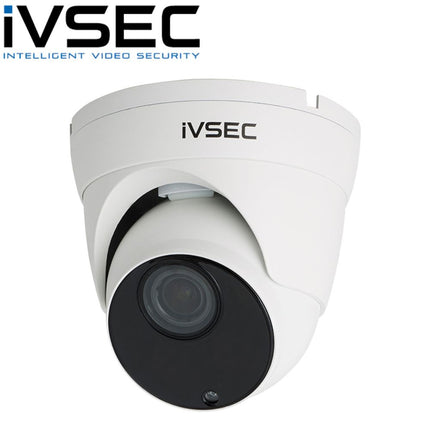

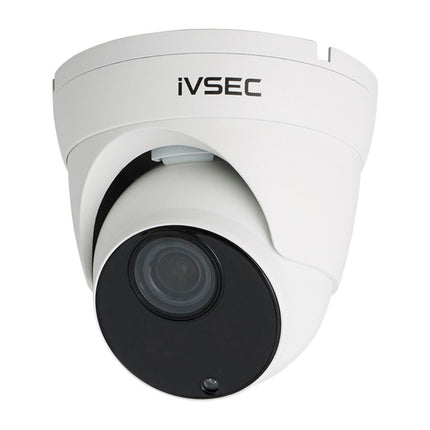

The IVSEC NC512XD with a SONY Sensor - The best dome to capture the event. If it is critical to the get the right shot use the motorised lens and 8MP for digital zoom. 25 FPS for smooth footage and the SONY image sensor make this high-end camera great for POS/Cash and entryways.
The NC512XD IP security camera offers an 8 Megapixel resolution SONY sensor combined with a motorised 3.6-12mm vari-focal lens and a set of advanced features.
The built-in infrared illumination enables night vision at up to 45 metres.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug & Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE (Power over Ethernet).
The IVSEC NC512XD features an IP66 water resistant and anti-vandal dome which means this video surveillance camera can be used both indoors and outdoors.
The NC512XD security camera features H.265 video compression technology, edge recording, triple stream and is fully compatible with the ONVIF standard.
It also offers on board video analytics: Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting.
Datasheet
Tech Specs
IVSEC Security Camera: 8MP Motorised Turret, 3.6-12mm - IVNC512XD
| Camera Type |
Turret |
| Image Sensor |
1/2.5″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Lens |
3.6-12mm |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
45 |
| Image clarity |
5 |
| Connectors |
RJ-45 , Analog Video Out, Audio In, Audio Out, Alarm in or out *4 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
2.6 |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
Ø151 X 113mm |
| Weight (Net) |
0.87 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<9W |
| Connectors (web) |
RJ-45 , DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *4, reset button |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
25 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Rotate, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card |
Yes |
| Video Compression |
H.265, H.264 (3 streams) |
| Audio Streaming |
Yes – input connector for external mic |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Intelligent Video |
Video Analytics (Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, Installation template, Mounting screws and plugs |
| Warranty |
3 Year Warranty |
