Description

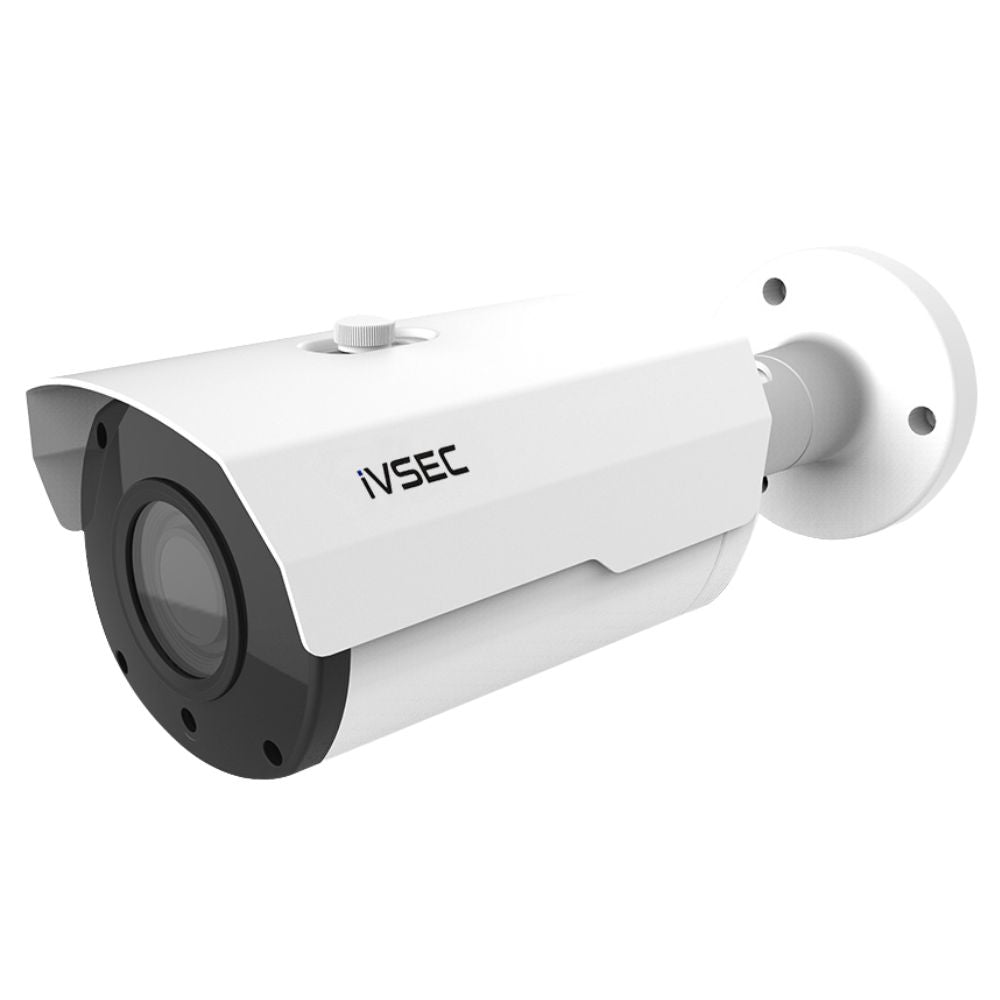

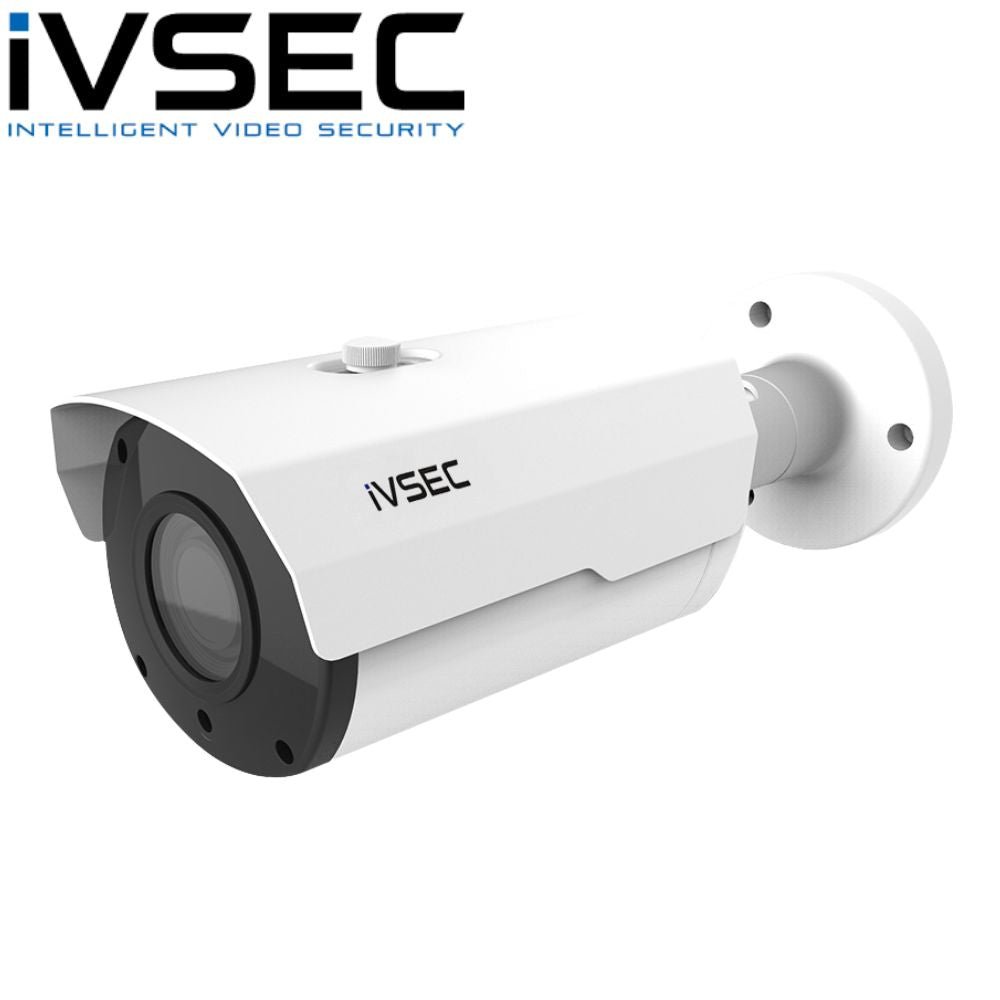

The IVSEC NC317XA IP security camera offers a 5 Megapixel resolution sensor combined with a2.8-12 mm vari-focal motorised lens(116 to 34 field of view).
The built-in infrared illumination enables night vision at up to 40 metres.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug &Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE(Power over Ethernet).
The IVSEC NC317XA features anIP66water resistant and anti-vandal bullet housing which means this video surveillance camera can be used both indoors and outdoors.
The NC317XA security camera featuresH.265video compression technology and is fully compatible with the ONVIF 2.6 standard.
Datasheet
Tech Specs
IVSEC Security Camera: 5MP Motorised Bullet, 2.8-12mm - IVNC317XA
| Camera Type |
Bullet |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
5 |
| Maximum Video Resolution |
2592 x 1944 |
| Lens |
2.8-12 mm (H.FOV: 116 to 34°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
40 |
| Image clarity |
3.5 |
| Connectors |
RJ-45 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
2.6 |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
Ø84 X 240mm |
| Weight (Net) |
0.94 |
| Accessories |
IV2422X, IV2477X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<7W |
| Connectors (web) |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
15 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Video Compression |
H.265, H.264 (2 streams) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
