Description

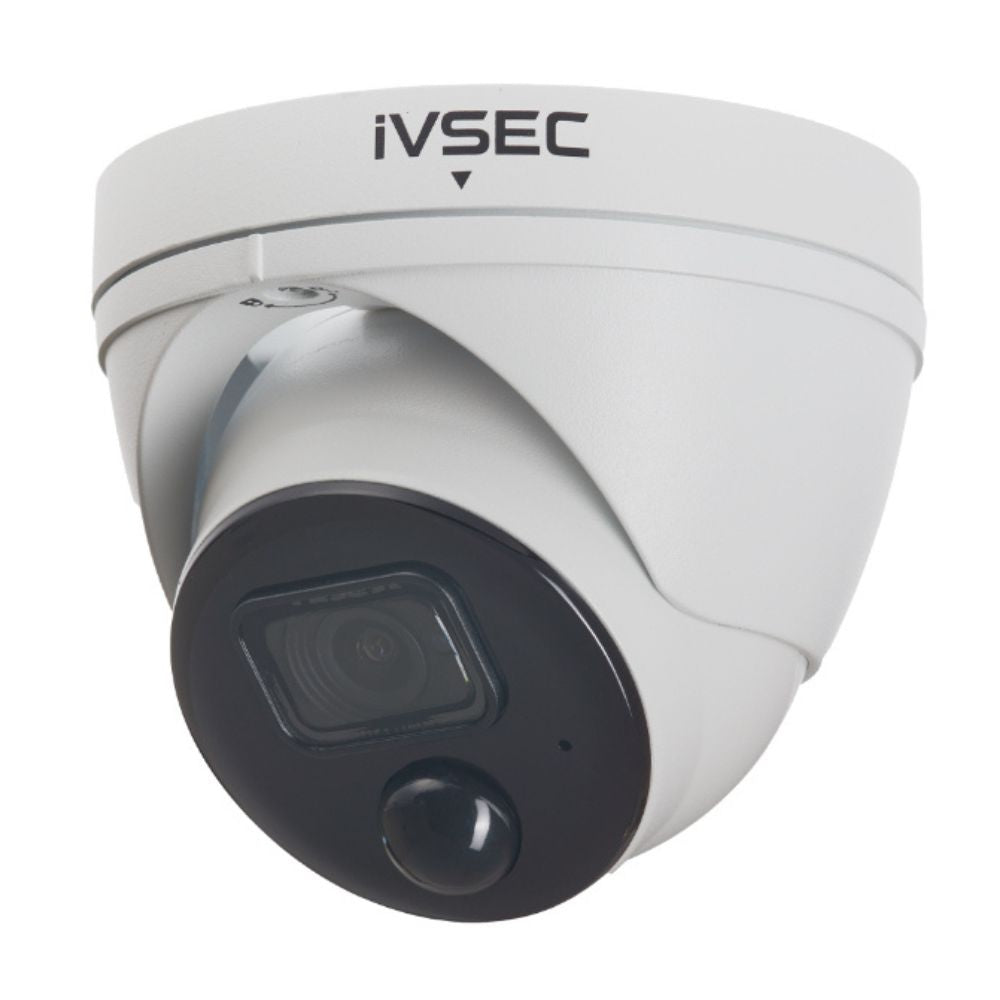

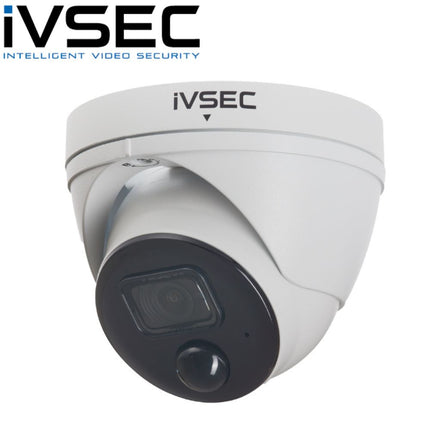

The IVSEC NC110XB IP security camera offers 5 Megapixel resolution combined with a built-in PIR sensor which can be used to trigger recording.
Most cameras can only record on movement detection, but this creates a lot of unnecessary recording with moving branches or cars’ headlights ...
With this IVSEC security camera, you have the choice of using either motion detection or the built-in PIR sensor to trigger recording.
This can save a huge amount of storage and, by not having to sift through unnecessary recordings, it will make it faster to find the events which really matter.
The built-in infrared illumination enables night vision at up to 30 metres.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug & Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE (Power over Ethernet).
The IVSEC NC110XB features an IP66 water resistant dome which means this video surveillance camera can be used both indoors and outdoors.
The NC110XB features H.265 video compression technology and is fully compatible with the ONVIF standard.
Datasheet
Tech Specs
IVSEC Security Camera: 5MP Turret fixed, 2.8mm - IVNC110XB
| Camera Type |
Turret |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
5 |
| Maximum Video Resolution |
2592 x 1944 |
| Lens |
2.8 mm (H.FOV: 99°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
30 |
| Image clarity |
3.5 |
| Connectors |
RJ-45 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
ONVIF( Profile S/G/T) |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
100×100 mm |
| Weight (Net) |
0.4 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<7W |
| Connectors (web) |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
20 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card |
Yes |
| Video Compression |
H.265, H.264 (3 streams) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
| Weight (Packaged) |
0.55 |
