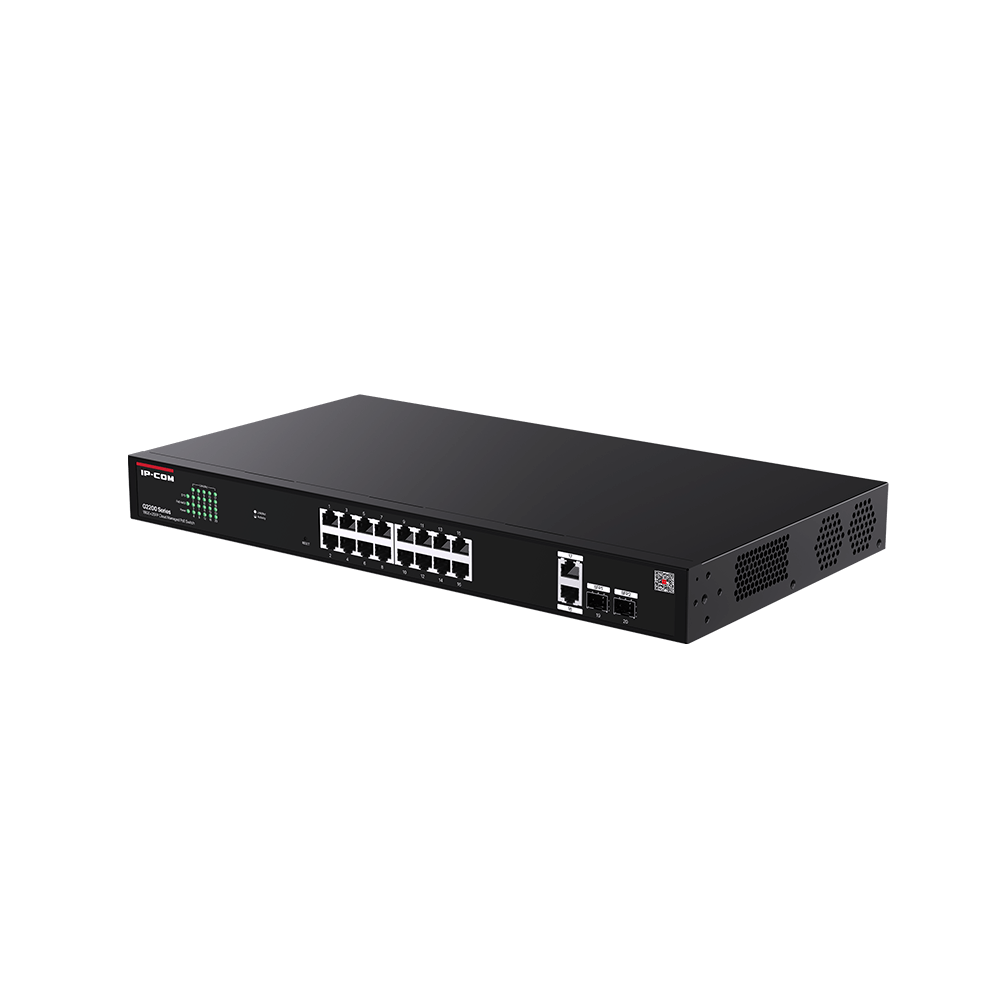

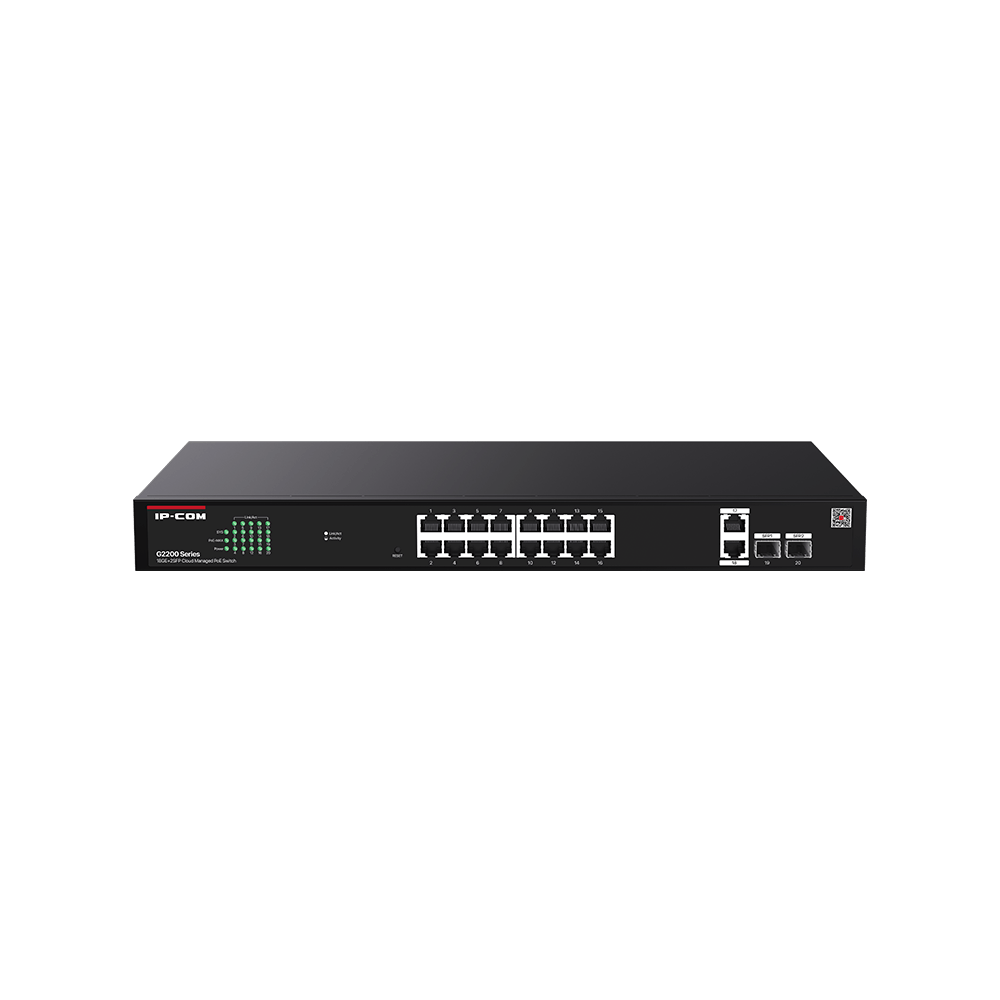

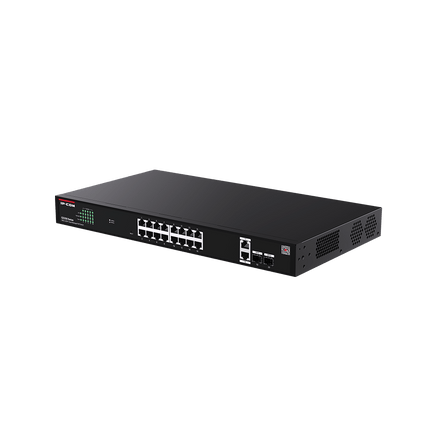

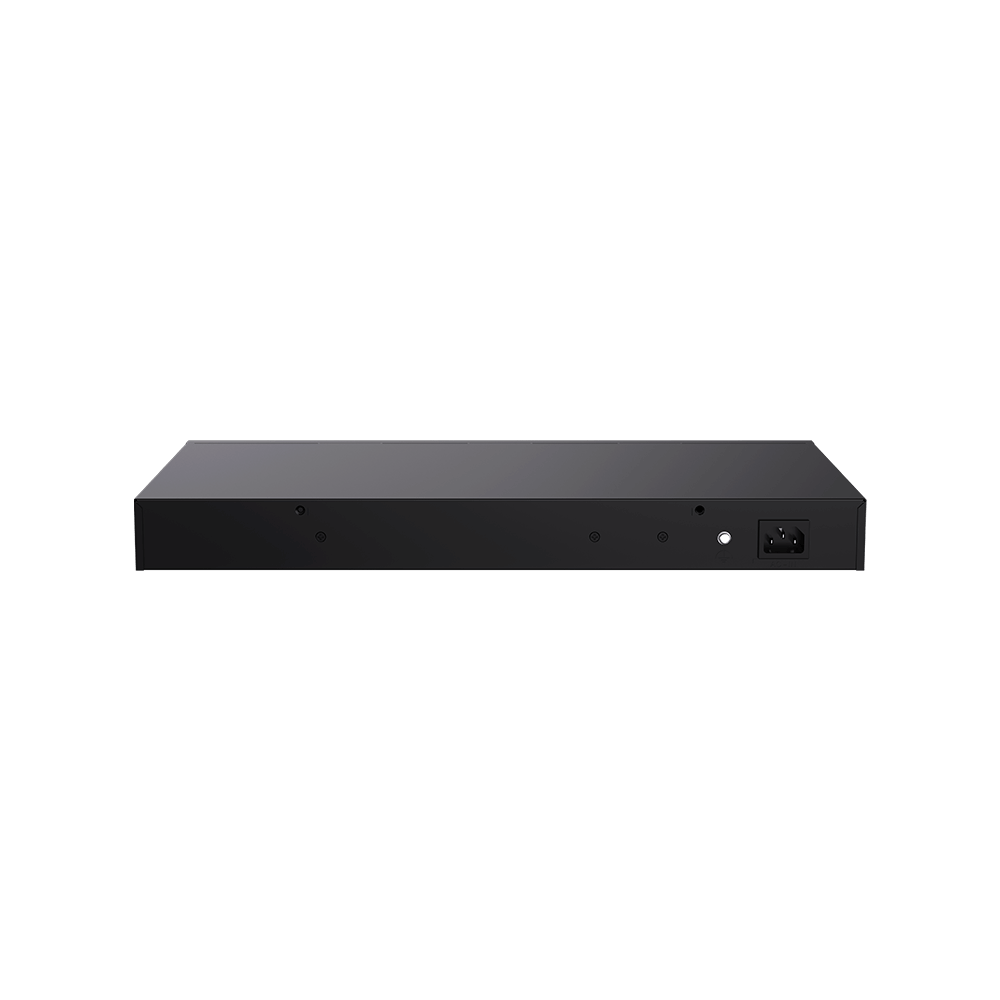

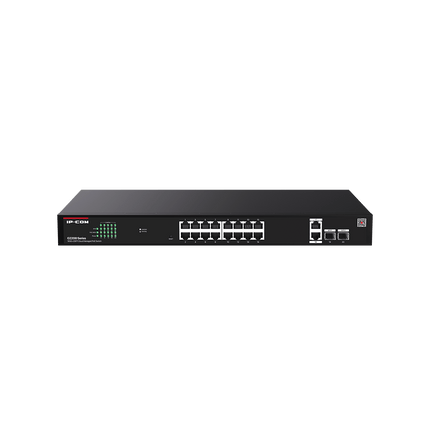

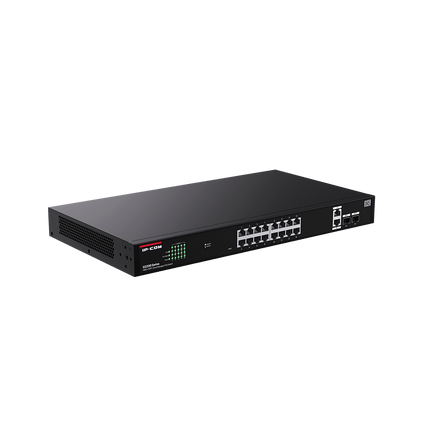

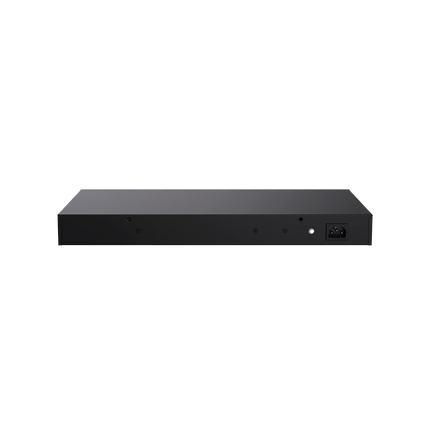

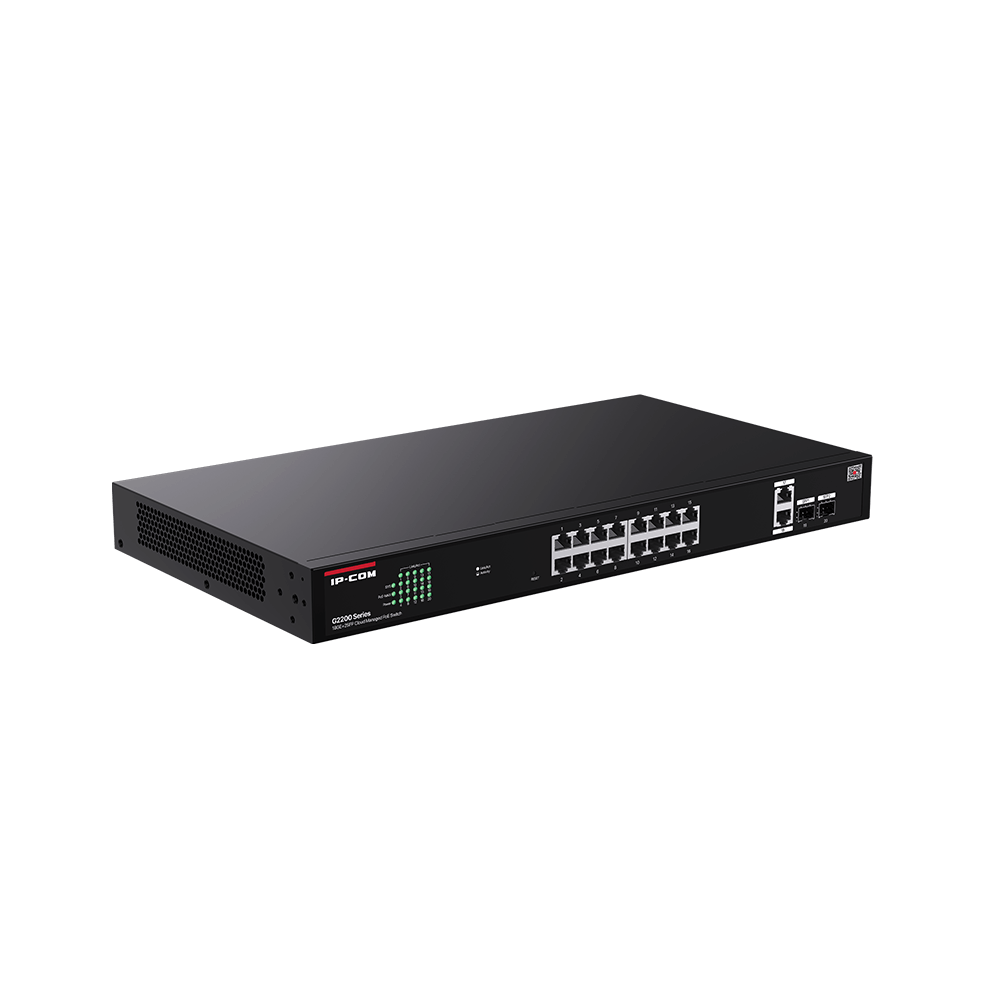

G2220P-16-250W Overview
G2220P-16-250W is a 20-port intelligent cloud-managed PoE switch independently designed by IP-COM. Supports cloud WEB platform management and APP management, supports 802.3AF/AT,single port maximum output 30W, whole machine 250W, automatically detects loops and private routers at the same time, network maintenance is more efficient, and after-sales costs are affordable.User-configured switch,supports watchdog, 7*24 hours automatic operation and maintenance, and is an ideal choice for accessing PD devices such as APs, cameras, and IP phones.
Key Features:
- Comply with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at, IEEE802.3x,IEEE802.3z,IEEE802.1p,IEEE802.1q standards
- 18 10/100/1000 Base-T Ethernet ports, 2 1000 Base-X SFP optical ports
- 8 K MAC address table and MAC address auto learning
- 16 PoE ports, single port output power 30W, Total power budget 230W
- 40Gbps non-blocking wire-speed forwarding
- Web platform remote management, mobile APP management
- 4M large cache
- Support QVLAN, DHCP Snooping, anti-loop, PoE timing, watchdog, etc.
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 16PORT ( 20P) GIGABIT SWITCH 230W POE BUDGET 16x POE+ PLUS 2x 1G SFP/ FIBRE PORT 2x1G UPLINK COMBO 40Gbps SWITCHING CAPACITY 29.8Mbps FORWARDING RATE L2 CLOUD MANAGED OPERATE TEMP 0 ~ +45° BLACK METAL RACK MOUNT 240VAC 44Hx440Wx178D (MM)
Cloud management platform
It supports engineering Baoyun Web platform and mobile APP management. You can scan the QR code in batches through the APP to add switches, automatically configure and go online. The cloud platform automatically generates a visual network topology,and you can check the operating status of the equipment anytime and anywhere.
PoE timing
Supports setting port PoE to turn on or off at fixed times to save energy during idle periods
Flexible installation
Supports desktop, wall-mounted, rack and other installation methods
Rich management features
Provides management functions such as QVLAN, VLAN transparent transmission,traffic statistics, port loop prevention, MAC address binding, etc., suitable for a variety of network scenarios
"
