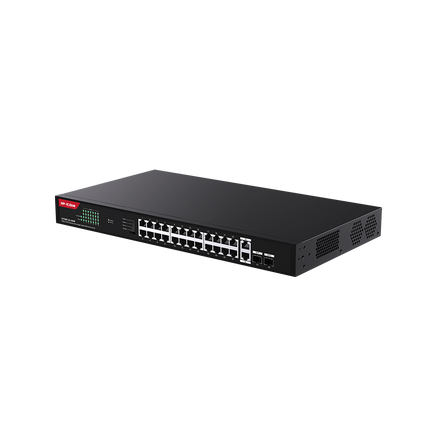

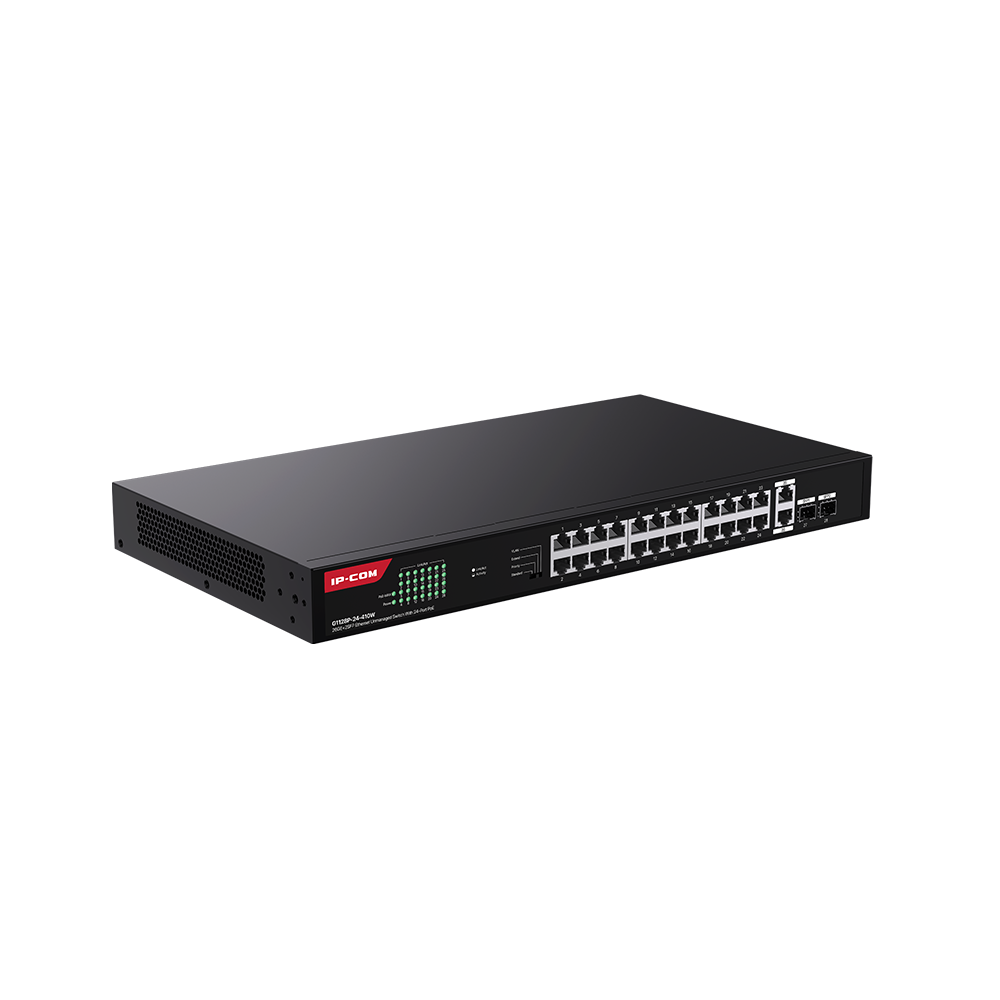

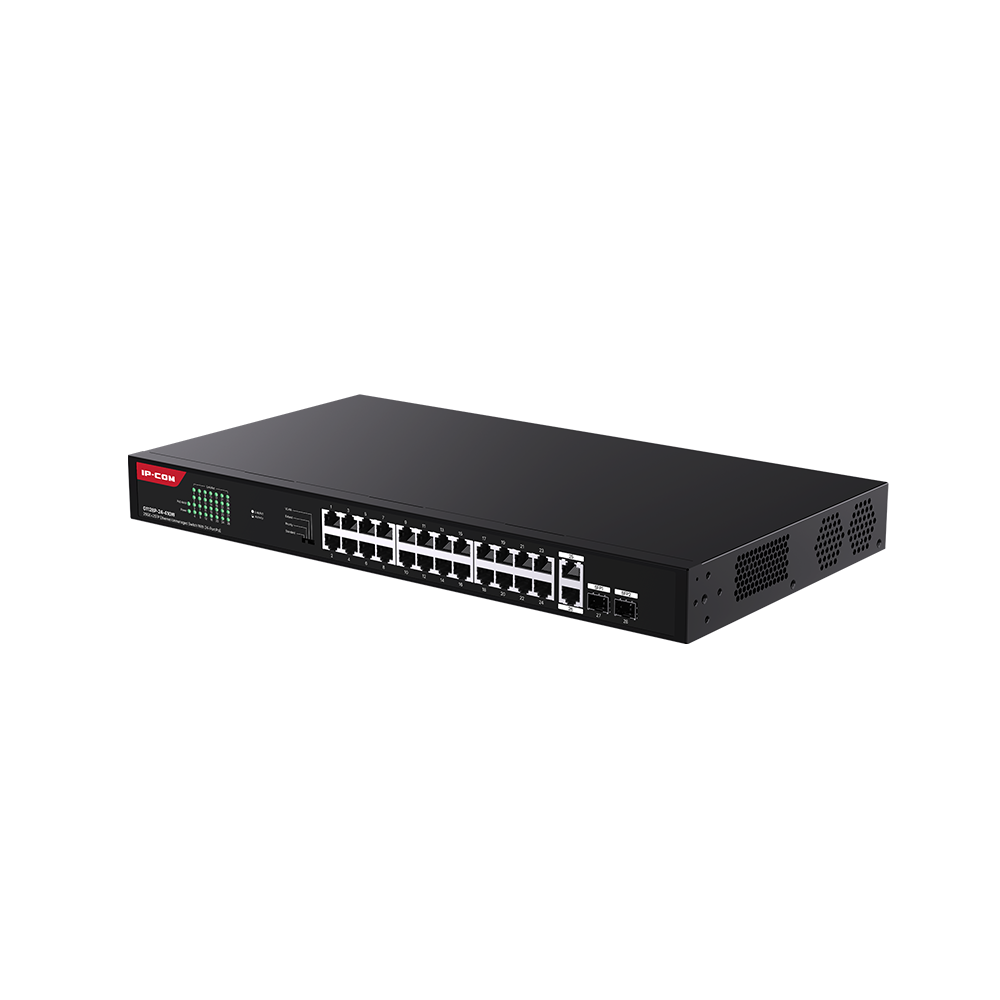

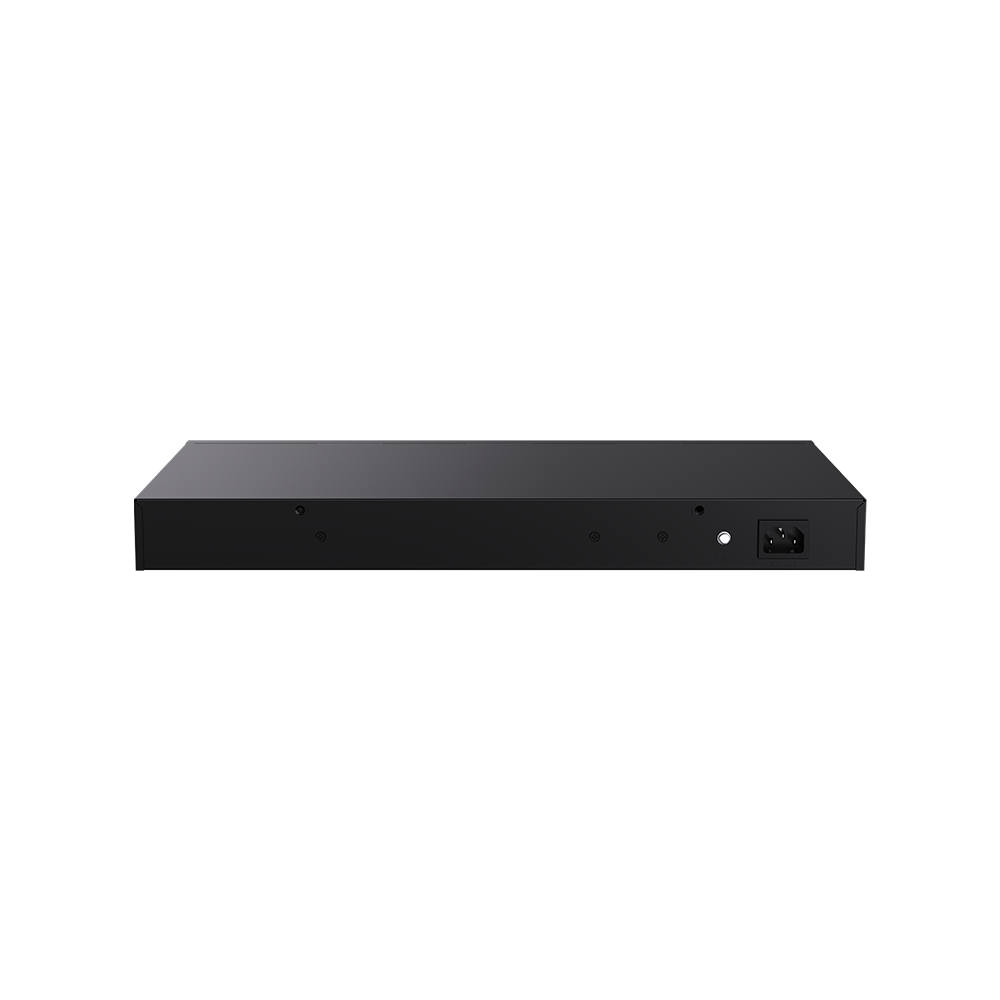

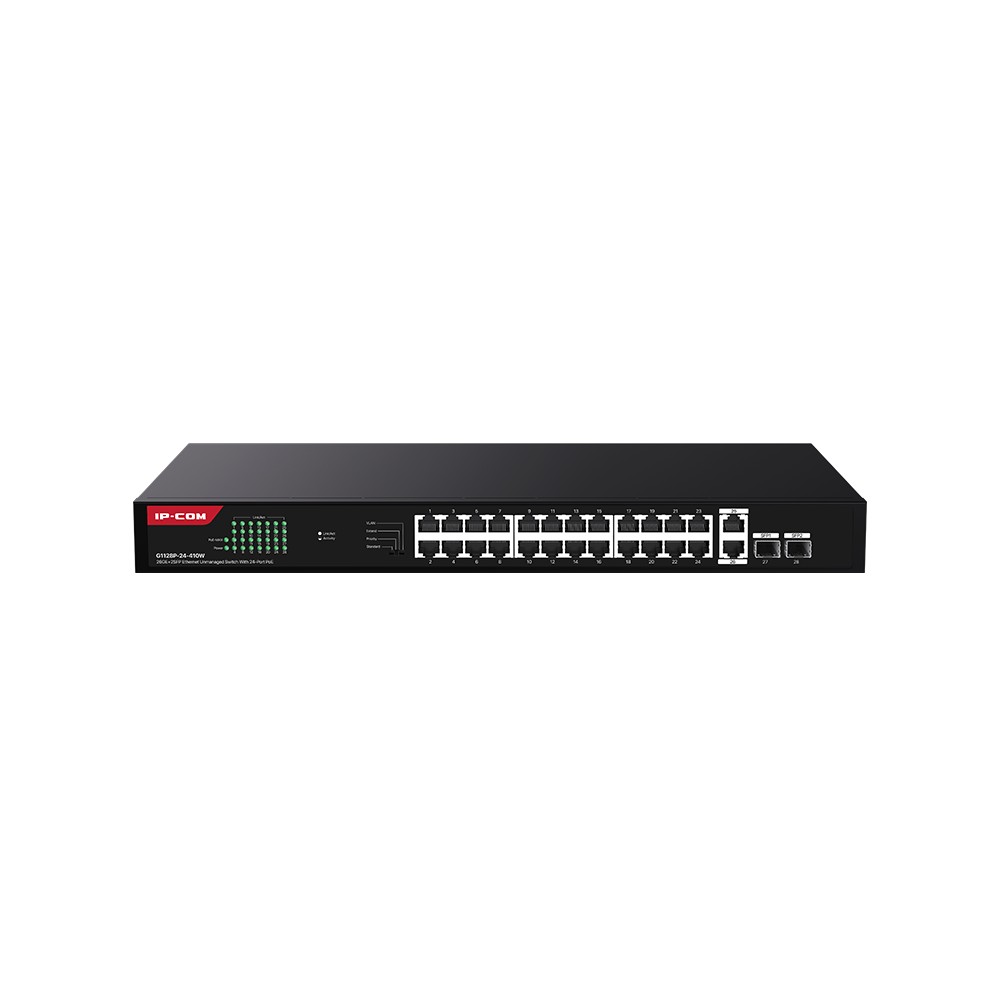

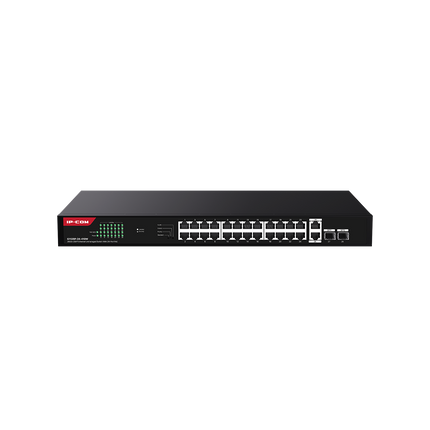

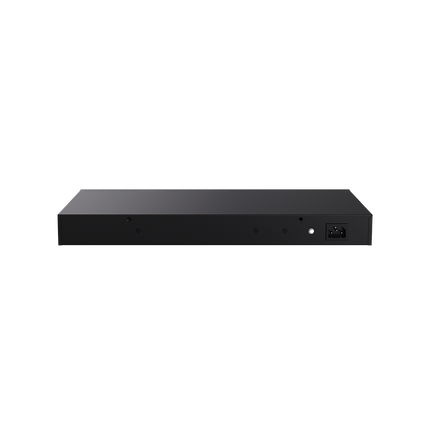

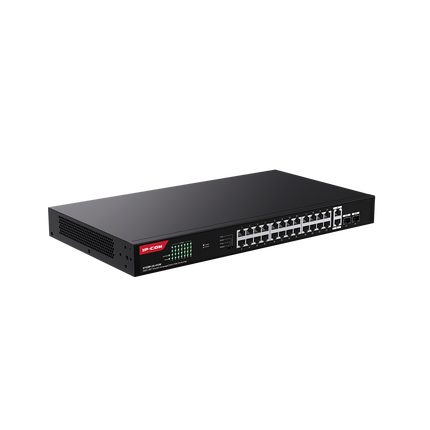

G1128P-24-410W Overview
G1128P-24-410W is a gigabit Unmanaged Ethernet PoE switch designed by IP-COM. The switch provides 24 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 410W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements.
Key Features:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z， IEEE802.3x, IEEE802.3af/at
- 24 * 10/100/1000 Base-T Ethernet ports (Data/Power)
- 2 * 10/100/1000 Base-T Ethernet ports (Data)
- 2 * 100/1000 Base-X SFP optical ports
- 8K MAC address and MAC address automatic learning
- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
- 56 Gbps non-blocking wire-speed forwarding backplane bandwidth
- The maximum output power of the PoE port is 30 W. The maximum output power of the switch PoE port is 370W.
- 4 Mb large buffer design
- Standard 1U height, rack mounted switch
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 24PORT ( 28P) GIGABIT SWITCH 370W POE BUDGET 24x POE+ PLUS 2x 1G SFP/ FIBRE PORT 2x1G UPLINK 56Gbps SWITCHING CAPACITY 41.7Mbps FORWARDING RATE L2 UNMANAGED OPERATE TEMP 0 ~ +45° BLACK METAL RACK MOUNT 240VAC EXTENDED POE 44Hx240Wx440D (MM)
Four-Mode Toggle
Support four modes of Standard, Priority, Extend and VLAN.
Rack Design
With standard 19-inch metal body design, support rack and wall mounting.
Intelligent PoE Power Supply
It provides 24 gigabit PoE ports that comply with IEEE802.3af/at standards, the power of the whole switch is 410W, and the maximum output power of a single port is 30W, which can provide stable power supply and data transmission for high-definition PoE cameras and APs.
RJ45&SFP Uplink
There are two independent uplink RJ45&SFP ports, which meet the requirements of both security and network scenarios.
"
