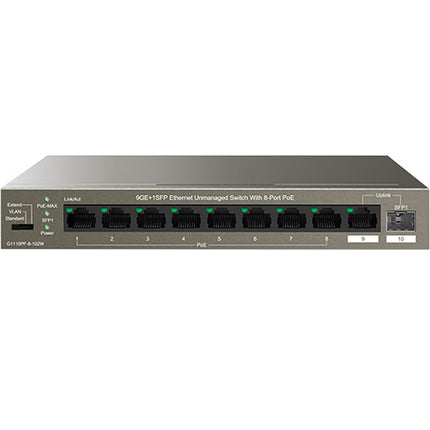

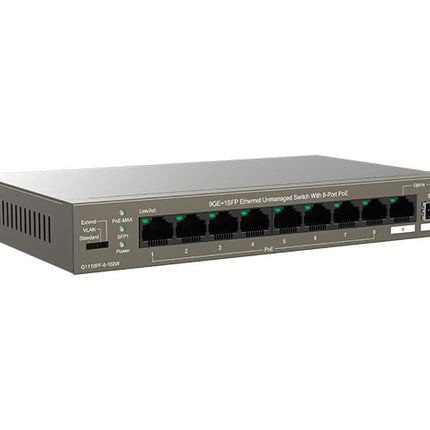

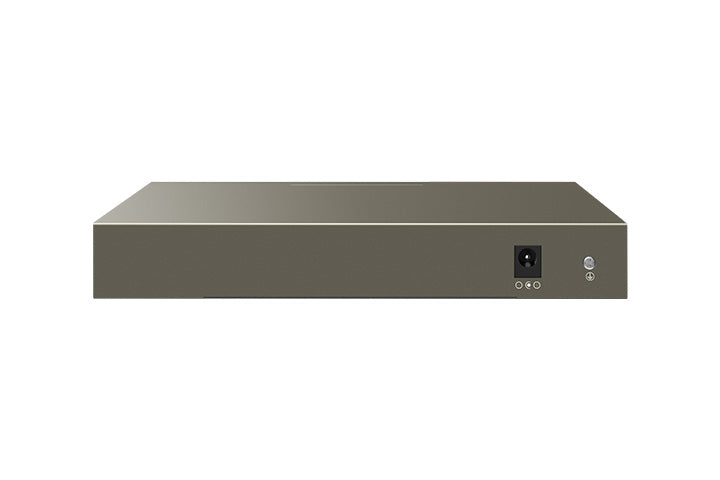

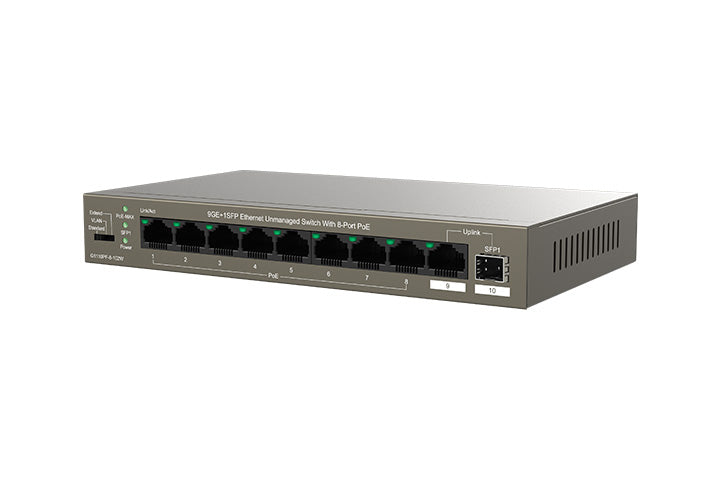

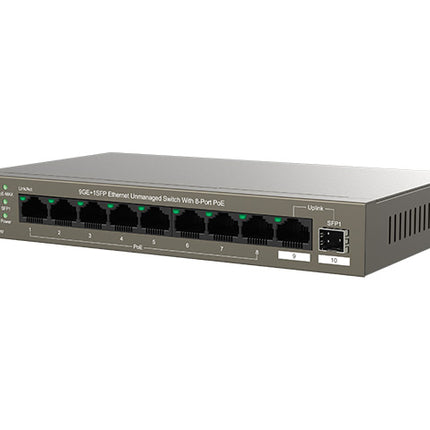

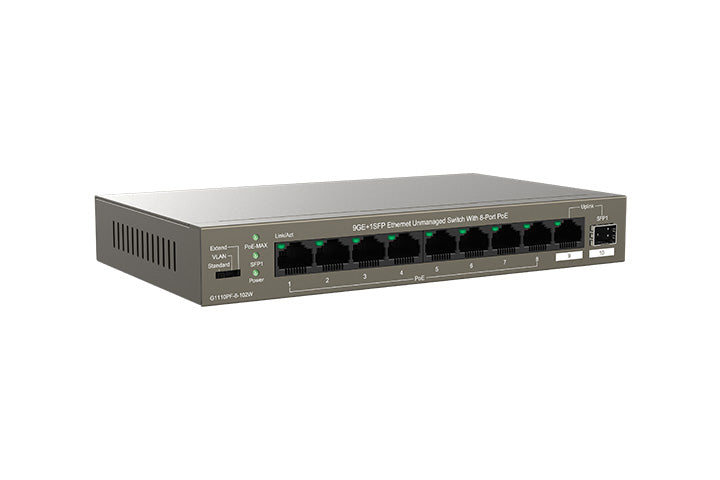

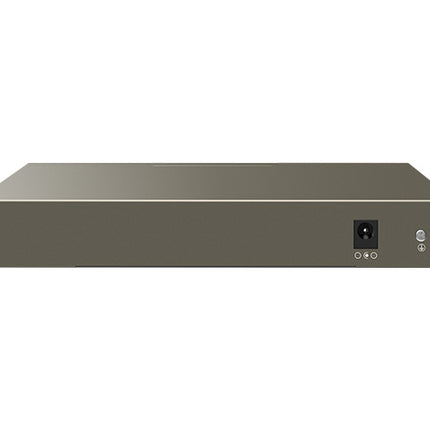

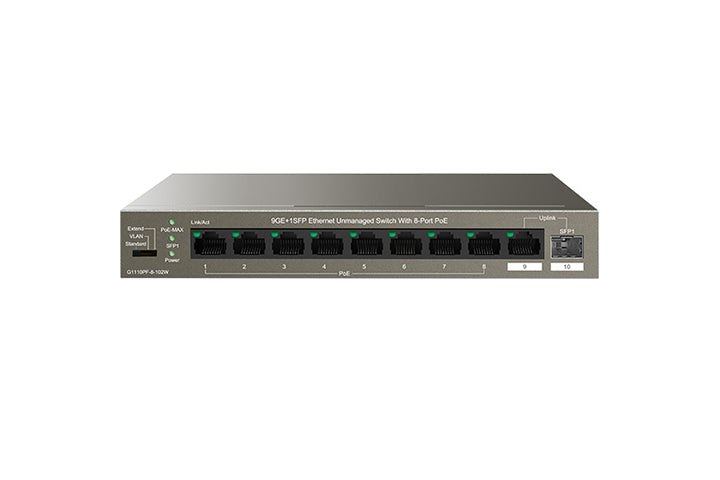

G1110PF-8-102W Overview
G1110PF-8-102W, 9GE+1SFP Ethernet unmanaged switch with 8-port PoE, is independently designed by IP-COM. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102 W. Supporting three-mode toggle, G1110PF-8-102W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas, industrial parks, hotels and schools.
Key Features:
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at standards
- 8*10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
- 1*10/100/1000 Mbps Base-T Ethernet port (Data), 1*100/1000 Mbps Base-X SFP port
- 16 K MAC address table and MAC address auto-learning
- IEEE 802.3x full duplex flow control and backpressure half duplex flow control
- 20 Gbps switching fabric for non-blocking line-speed forwarding
- Maximum PoE output of a single port: 30 W
- Total power consumption of the switch: 102 W
- Three-mode toggle: Standard, VLAN
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 8PORT ( 10P) GIGABIT SWITCH 92W POE BUDGET 8x POE+ PLUS 1x 1G SFP/ FIBRE PORT 1x1G UPLINK 20Gbps SWITCHING CAPACITY 14.9Mbps FORWARDING RATE L2 UNMANAGED OPERATE TEMP 0 ~ +45° BROWN METAL WALL MOUNT 240VAC EXTENDED POE 26Hx104Wx177.5D (MM)
Three-Mode Toggle
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
6 kV Lightning Protection
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
Smart PoE Power Supply
The switch provides 8 gigabit PoE ports compliant with IEEE 802.3af/at standards, capable of transmitting data and supplying power for HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102 W.
