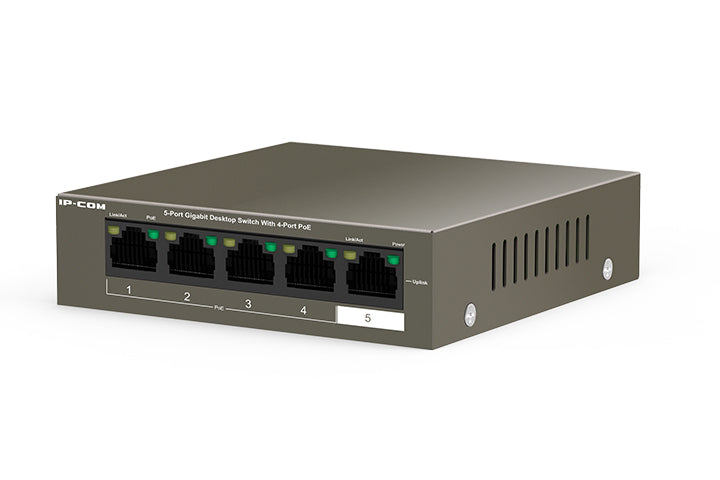

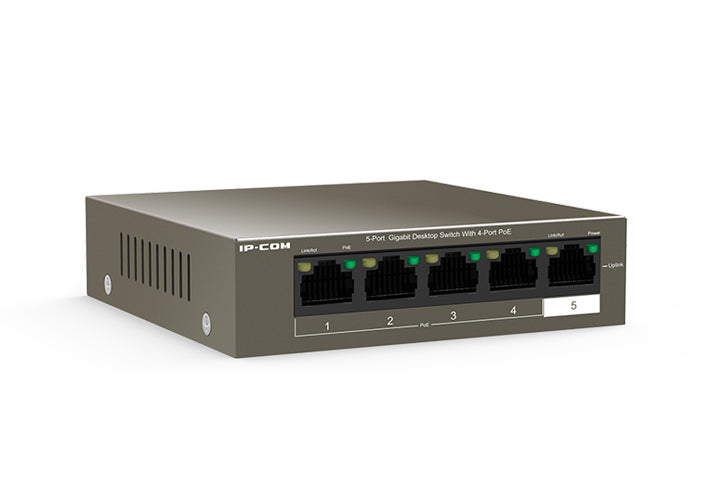

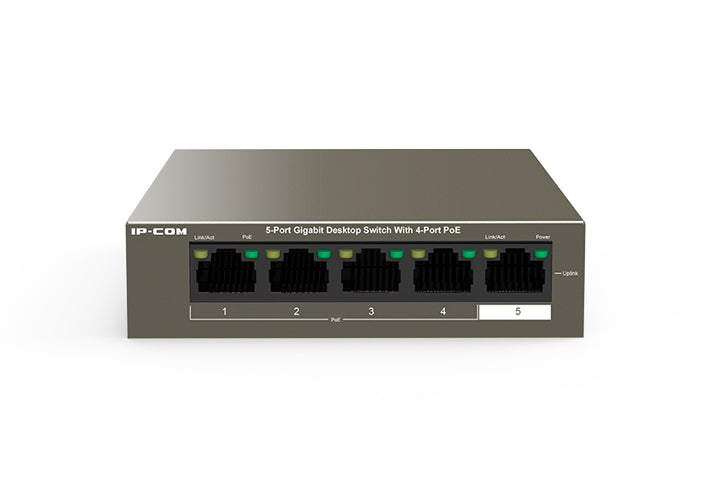

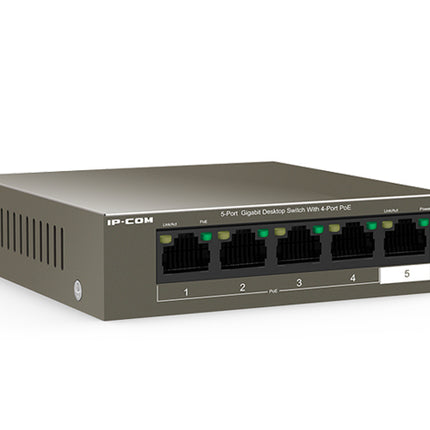

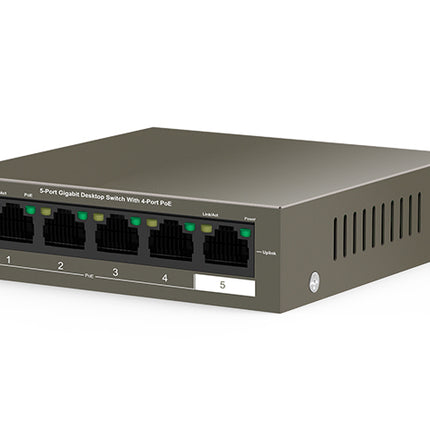

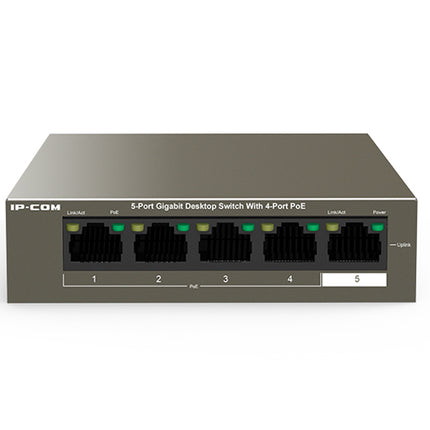

G1105P-4-63W Overview
G1105P-4-63W is a IP-COM PoE switch that offers 5 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as VLAN, to help reduce cabling costs of IP terminals like APs and IP cameras.
Key Features:
- 5 10/100/1000 Mbps Base-T RJ45 port
- Ports 1-4: IEEE 802.3af/at PoE ports
- maximum power output of each PoE port: 30 W maximum power output of the switch: 58 W
- Desktop size,Power Adapter Output 63W
- Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 port
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 5PORT GIGABIT SWITCH 58W POE BUDGET 4x POE+ 10Gbps SWITCHING CAPACITY 7.4Mbps FORWARDING RATE L2 UNMANAGED OPERATE TEMP 0 ~ +45° BROWN METAL 240VAC/51VDC 26Hx100Wx100D (MM)
Lightning Protection 6KV
The ports and embedded power can provide lightning protection of up to 6kV. It also provides PSE shortcircuiting protection, PoE overloading, power over temperature, over voltage and surge current protection.
58W PoE power supply
Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

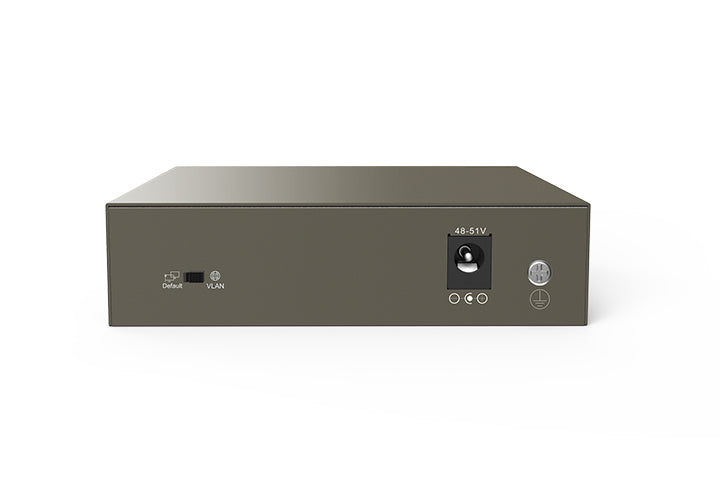

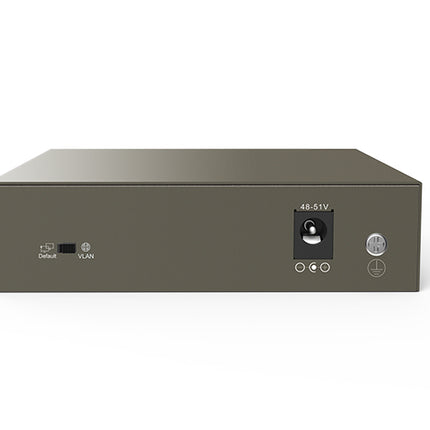

One-Key VLAN
If ""vlan mode"" is enabled, Port 1-4 will be isolated respectively but can communicate with the 5 port. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.
"
