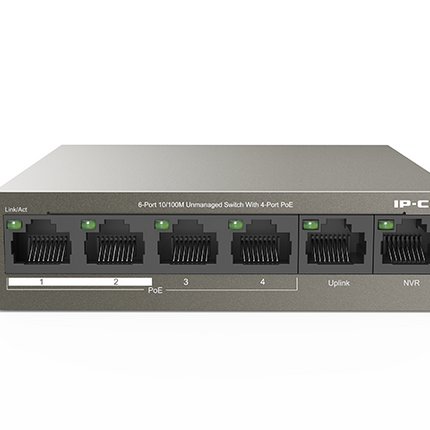

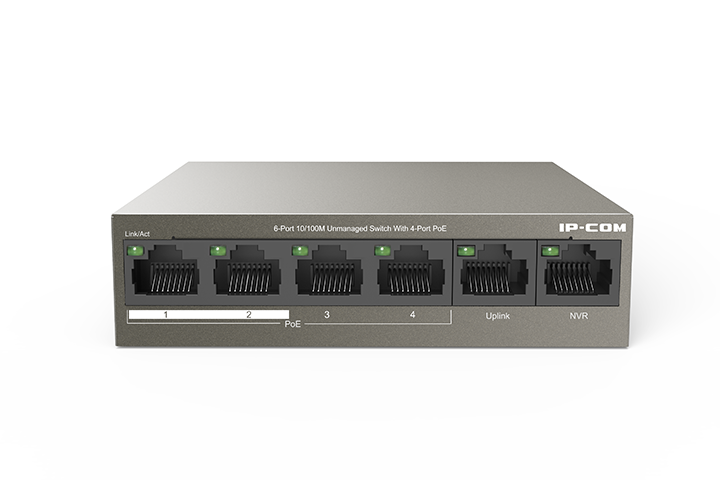

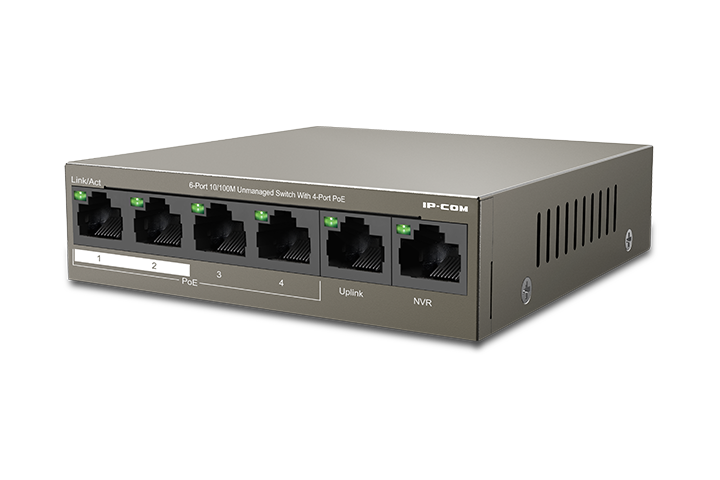

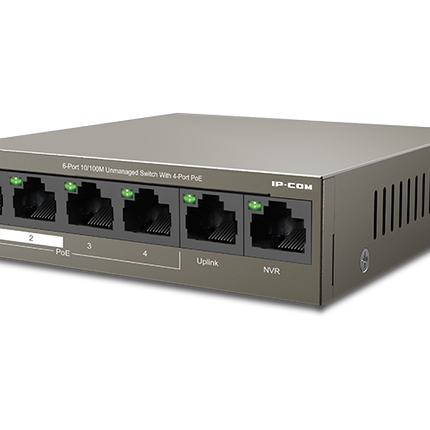

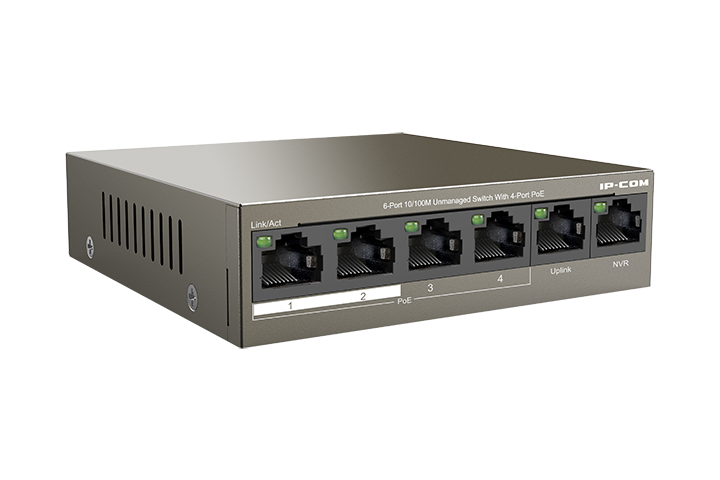

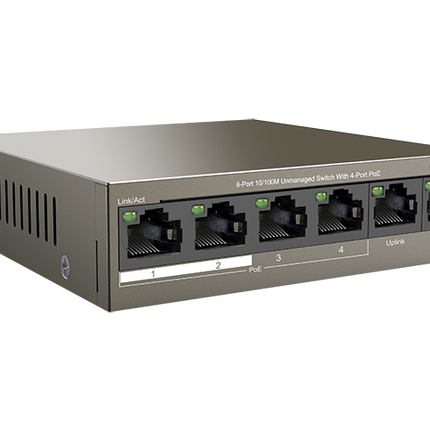

F1106P-4-63W Overview
F1106P-4-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by IP-COM. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode and QoS function, F1106P-4-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Key Features:
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
- 4*10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
- 2*10/100 Mbps Base-TX RJ45 ports for data transmission
- 1 K MAC address table and MAC address auto-learning
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
- 1.2 Gbps backplane bandwidth
- Maximum power consumption of a single port:30W
- Maximum power consumption of the switch: 58W
- Supports extend mode and QoS function
- Supports desktop and wall-mounting, plug and play
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 4PORT SWITCH 63W POE BUDGET 4x POE+ 2x100M UPLINK 1.2Gbps SWITCHING CAPACITY 148800pps FORWARDING RATE L2 UNMANAGED OPERATE TEMP 0 ~ +45° BROWN METAL WALL MOUNT 51VDC EXTENDED POE INCLUDED POWER SUPPLY 26Hx100Wx100D (MM)
6 kV lightenning protection
The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc.
Dual uplink port
With two 10/100 Mbps uplink ports, the switch can meet the current demand for uplink bandwidth with NVR and router connection.
Standard PoE power supply
The switch features 4 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers a maximum PoE power output of 58 W, and 30 W for a single port, to supply power to and data transmission with IP cameras.
