Description

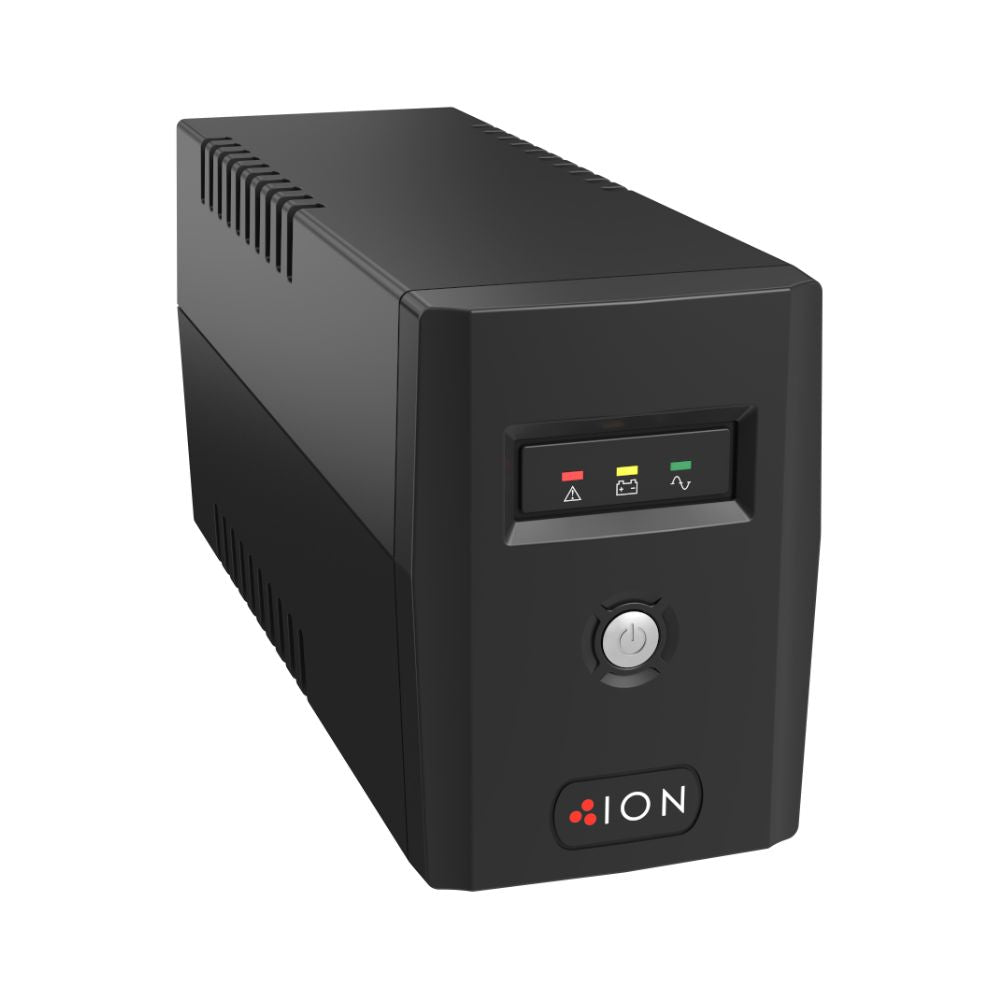

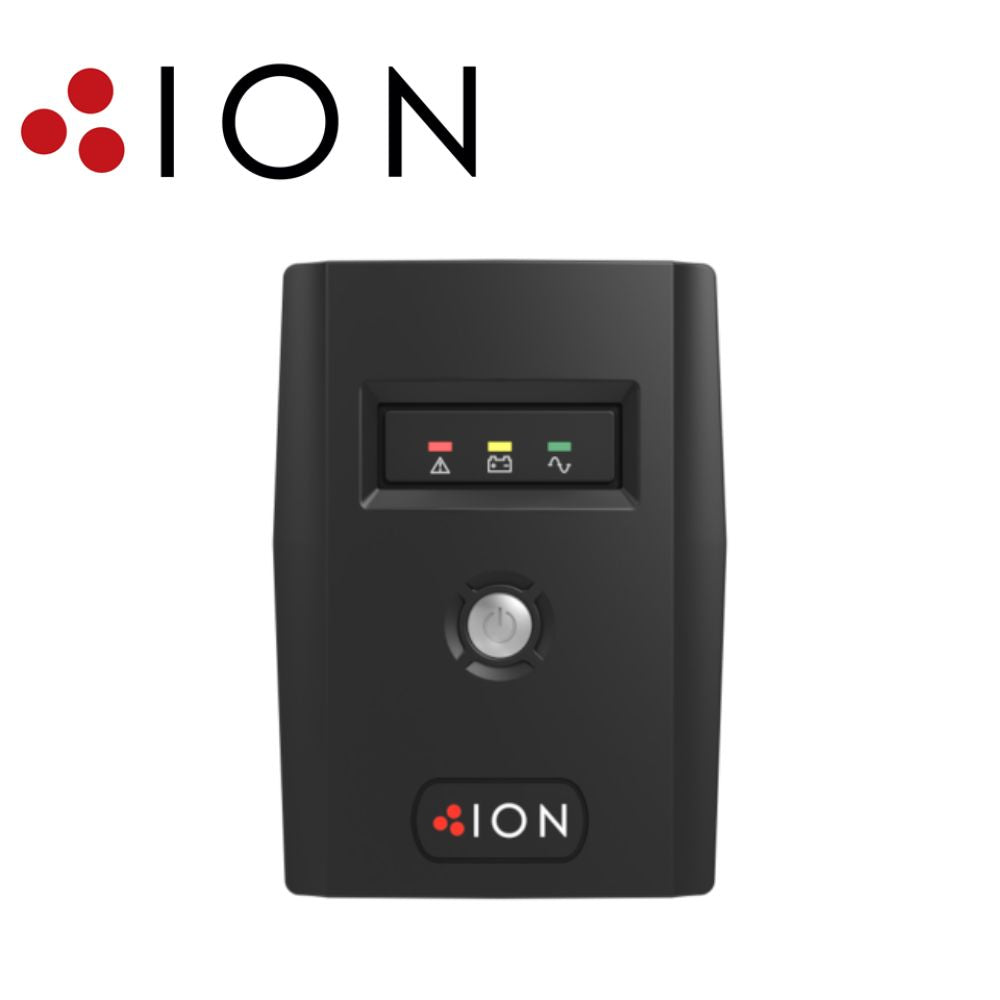

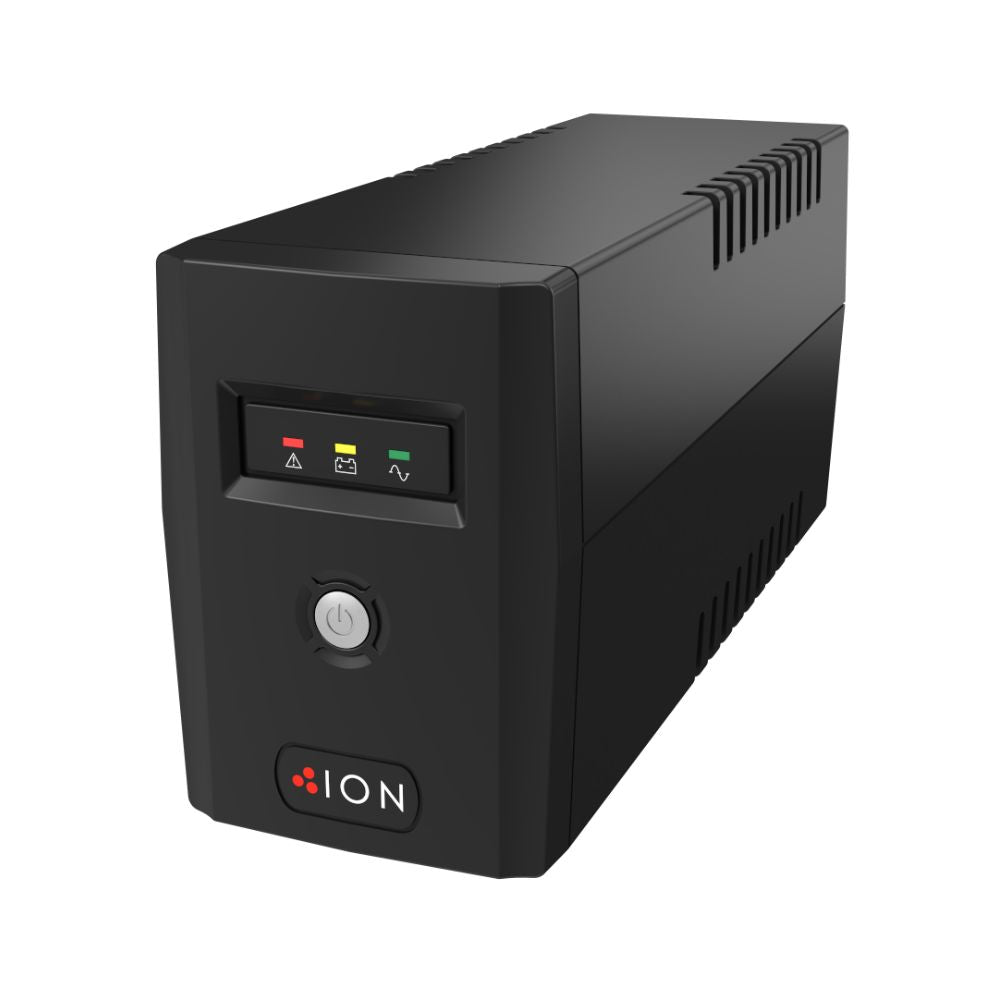

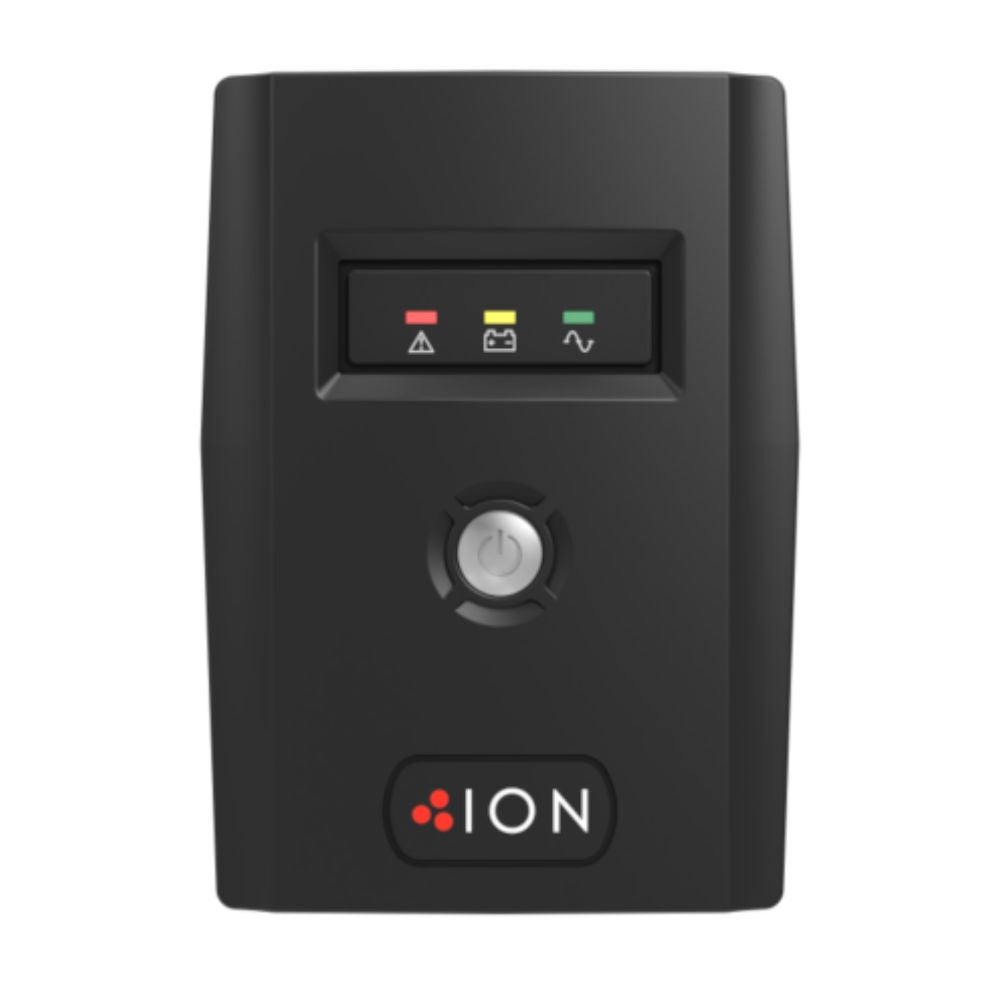

ION F11-LE is a compact and cost efficient line interactive UPS that offers protection from power surges and failures in the home, office or small business. Ideally suited to protecting computers and POS devices the ION F11-LE provides clean, reliable power delivery. Presented in a stylishly engineered unit, it is compact to fit in tight spaces and provides multiple power receptacles, HID, SLS, USB communications port on the 650VA, 1600VA and 2200VA.
Features
- 3 year advanced replacement warranty*
- HID (Human Interface Device) No software installation required
- SLS / Small Load Sensing
- LED display
- Automatic Voltage regulation stabilises fluctuating power
- Easy battery replacement
- USB connection for local interface and communications
- Free software for real time monitoring and safe shutdown of connected equipment
- Auto-charge even when UPS is off
- Auto-restart in AC power recovery
- Modem/phone line surge protection
- Discharge, overcharge and overload protection
Downloads
Line Interactive UPS - F11- LE-650 - Datasheet
Line Interactive UPS- F11-LE-650 Brochure
Tech Specs
Line Interactive UPS F11-650
| Output |
| Output Power Capacity |
360Watts / 650VA |
900Watts / 1600VA |
1200Watts / 2200VA |
| Max Configurable Power |
360Watts / 650VA |
900Watts / 1600VA |
1200Watts / 2200VA |
| Nominal Output Voltage |
230V |
Output Voltage Tolerance |
+/- 10% |
| Output Frequency (sync to mains) |
50 / 60 Hz (auto sensing) |
| Topology |
Line Interactive, AVR |
| Output Connections |
(2) Australian 3 pin 10Amp |
(4) Australian 3 pin 10Amp |
| Transfer Time |
Typical 2-6ms |
| Input |
| Nominal Input Voltage |
230VAC |
| Input Frequency |
50 /60 Hz (auto sensing) |
| Input Connections |
IEC to Australian 3 pin plug |
| Input Voltage Range for Main Operations |
162 - 290VAC |
| Batteries & Runtime |
| Battery Type |
Maintenance-free sealed Lead-Acid battery |
| Typical Recharge Time |
| 4-6 hours to 90% capacity |
6-8 hours to 90% capacity |
|
| Communications & Management |
| Interface Port(s) |
USB |
| Control Panel |
LED display: AC Mode, Battery Mode, Overload, Fault |
| Audible Alarm |
Battery Mode, Low Battery, Overload, Battery Replacement Alam, Fault |
| Surge Protection and Filtering |
| Surge Energy Rating |
320 Joules |
| Data Line Protection |
RJ-11 Surge Protection |
| Physical |
| Maximum Height |
142mm |
198mm |
| Maximum Width |
101mm |
158mm |
| Maximum Depth |
298mm |
380mm |
| Color |
Black |
| Environmental |
| Operating Environment |
0 - 40 °C |
| Operating Relative Humidity |
0 - 90 % |
| Storage Temperature |
-15 - 45 °C |
| Storage Relative Humidity |
0 - 95 % |
| Conformance |
| Approvals |
CE |
| Standard Warranty |
3 Year Advanced Replacement* |
