Description
ION F11 is a compact line interactive UPS that offers protection from power surges and failures in the home, office or small business. Ideally suited to protecting computers and POS devices the ION F11 provides clean, reliable power delivery. Presented in a stylishly engineered unit, it is compact to fit in tight spaces and provides multiple power receptacles, HID, SLS, USB communications port on the 650VA, 1200VA and 2200VA.
Features
- 3 year advanced replacement warranty*
- HID (Human Interface Device) No software installation required
- SLS / Small Load Sensing
- LCD display
- Boost and Buck Automatic Voltage regulation stabilises fluctuating power
- Easy battery replacement
- USB connection for local interface and communications
- Free software for real time monitoring and safe shutdown of connected equipment
- Auto-charge even when UPS is off
- Auto-restart in AC power recovery
- Modem/phone line surge protection
- Discharge, overcharge and overload protection
Downloads
Line Interactive UPS - F11-1200 - Datasheet
Tech Specs
Line Interactive UPS F11-1200
| Output |
| Output Power Capacity |
360Watts / 650VA |
600Watt / 1200VA |
1200Watts / 2200VA |
| Max Configurable Power |
360Watts / 650VA |
600Watts / 1200VA |
1200Watts / 2200VA |
| Nominal Output Voltage 230V |
| Output Voltage Distortion Less than 5% at full load |
| Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
| Topology Line Interactive |

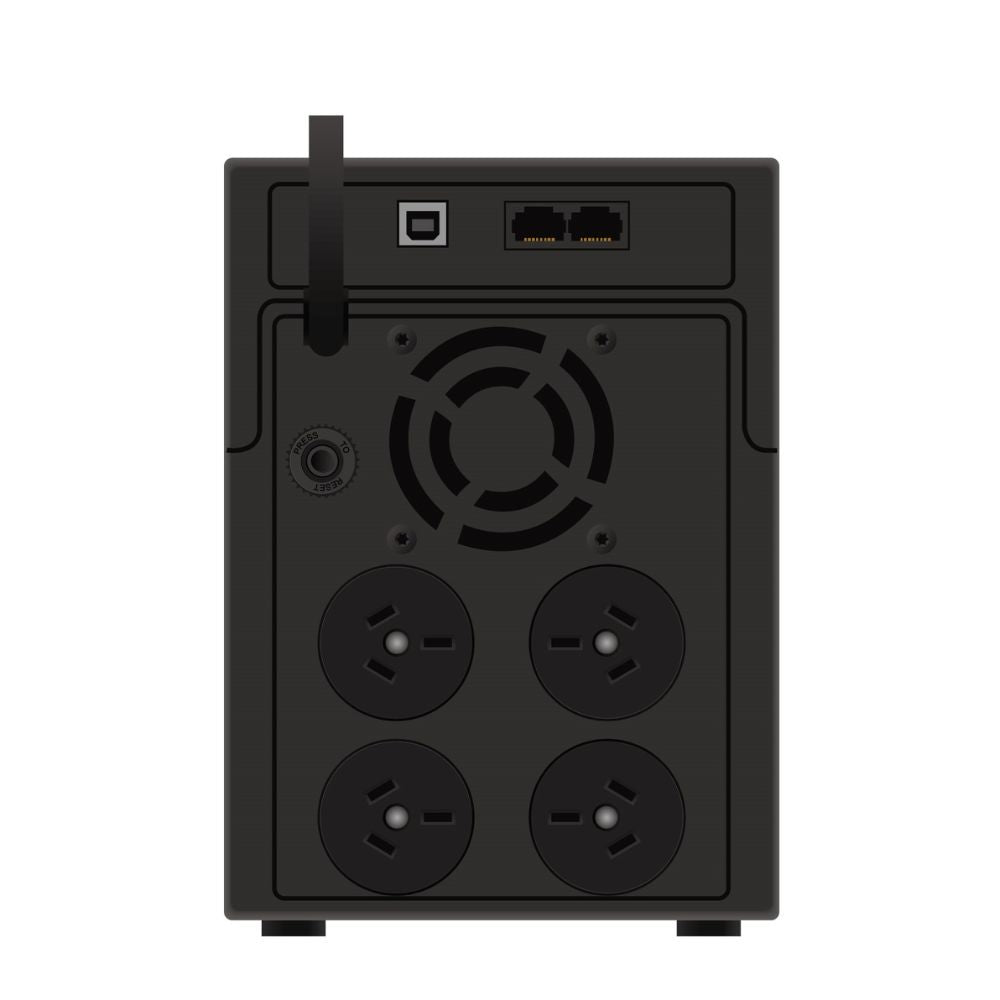

| Output Connections |
2) Australian 3 pin 10Amp |
4) Australian 3 pin 10Amp |
| Input |
| Nominal Input Voltage |
230V |
| Input Frequency |
2m IEC to Australian 3 pin plug |
| Input Connections |
IEC-320 C14 |
| Input Voltage Range for Main Operations |
170 - 280V |
| Batteries & Runtime |
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical Recharge Time |
3 hour(s) |
| Expected Battery Life |
3 - 5 years |
| Communications & Management |
| Interface Port(s) |
USB |
| Control Panel |
LCD status display with On Line : On Battery : Replace Battery and Overload indicators |
| Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering |
| Surge Energy Rating |
320 Joules |
| Data Line Protection |
RJ-11 Surge Protection |
| Physical |
| Maximum Height |
143mm |
195mm |
| Maximum Width |
100mm |
139mm |
| Maximum Depth |
290mm |
364mm |
| Net Weight |
4.4kg |
8.9kg |
10.4kg |
| Shipping Weight |
5.5kg |
10kg |
11.5kg |
| Shipping Height |
220mm |
| Shipping Width |
140mm |
| Shipping Depth |
340mm |
| Color |
Black |
| Environmental |
| Operating Environment |
0 - 40 °C |
| Operating Relative Humidity |
0 - 95 % |
| Operating Elevation |
0-3000 meters |
| Storage Temperature |
-15 - 45 °C |
| Storage Relative Humidity |
0 - 95 % |
| Storage Elevation |
0-15000 meters |
| Audible Noise at 1 meter from surface of unit |
40.0dBA |
45.0dBA |
| Conformance |
| Approvals |
CE |
| Standard Warranty |
3 Year Advanced Replacement* |
