Description
Maintenance Bypass Switch
Designed for hardwired UPS solutions

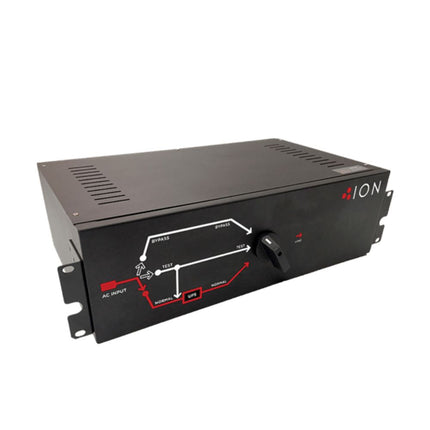

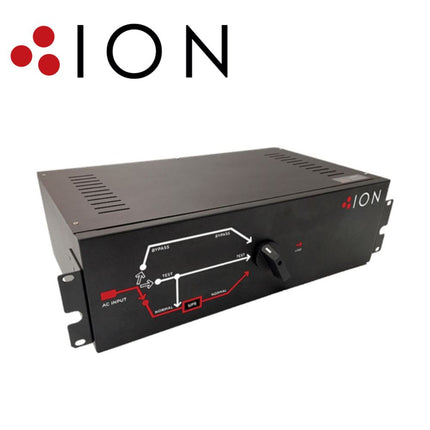

The ION F-MBP63 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 10kVA where uptime is essential. With IEC outlets to make installation easy as well as a hard wired output the F-MBP63 provides all options to connect your essential equipment for peace of mind.
Features
- 3 Year Advanced Replacement Warranty*
- IEC and Hardwired Output
- Compact Rack Mounted Solution
- Wrap Around System Bypass
- Ruggedized Metal Enclosure
Downloads
Maintenance Bypass Switch F-MBP63 - Datasheet
Tech Specs
Maintenance Bypass Switch - F-MBP63
| Output |
| Nominal Output Voltage |
230V |
| Overload Protection |
Yes |
| Maximum Total Current Draw |
63 |
| Output Connections |

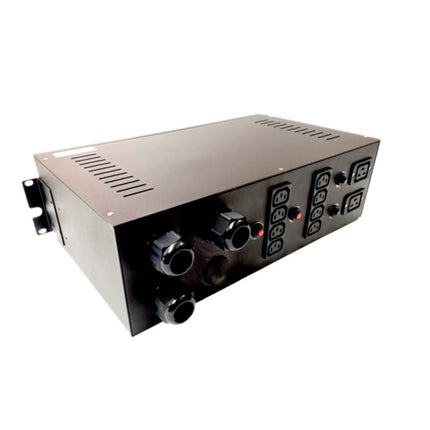

(2) IEC 320 C19, (8) IEC 320 C13, Hard Wire 3 wire (1PH+N+E) |
| Input |
| Nominal Input Voltage |
230V |
| Input Frequency |
50/60 Hz |
| Input Connections |
Hard Wire 3 wire (1PH+N+E) |
| Load Power Factor Range |
0 to 1 |
| Load Capacity |
10000VA |
| Maximum Input Current |
63A |
| Maximum Line Current |
63A |
| Physical |
| Maximum Height |
130mm |
| Maximum Width |
43mm |
| Maximum Depth |
260mm (290mm with Rear Terminals |
| Rack Height |
3U |
| Net Weigh |
5kg |
| Color |
Black |
| Environmental |
| Operating Temperature |
20 - 50 °C |
| Operating Relative Humidity |
0 - 95 % |
| Operating Elevation |
0-4500 meters |
| Storage Temperature |
40 - 65 °C |
| Storage Relative Humidity |
0 - 95 % |
| Storage Elevation |
0-15000 meters |
| Certifications |
| Standard Warranty |
3 Year Advanced Replacement Warranty* |
