Description
Maintenance Bypass

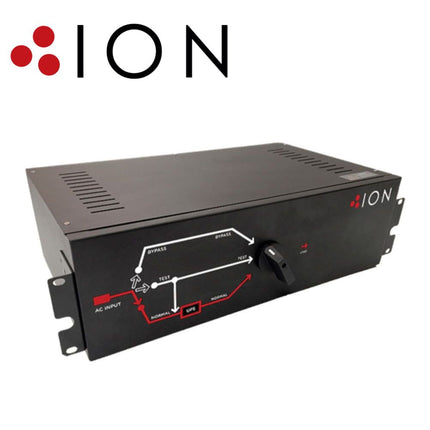

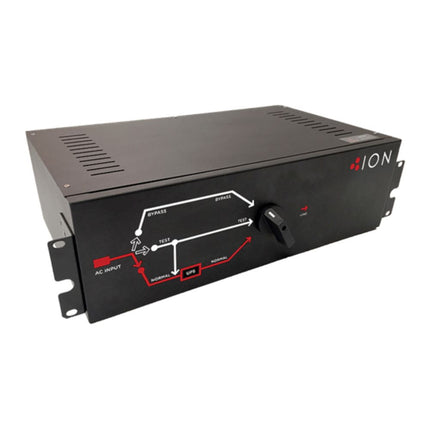

The ION F-MBP32 is a reliable compact rack mounted maintenance bypass designed for hardwired UPS solutions up to 6kVA where uptime is essential. With IEC outlets to make installation easy as well as a hard wired output the F-MBP32 provides all options to connect your essential equipment for peace of mind. ION’s Rackmount Bypass Switch is the perfect way to enable real time live bypassing of your UPS system without causing any interruption to IT equipment or a connected load. Using the rotary switch, anybody can transfer equipment load from the UPS to mains supply. The ION Rackmount Bypass Switch enables maintenance to be undertaken on a UPS system during business hours and provides a backup option to quickly restore power to equipment if the UPS fails. ION’s Rackmount Bypass Switch delivers cost effective reliable redundancy to your IT infrastructure’s power supply.
Features
- 3 Year Advanced Replacement Warranty*
- IEC and Hardwired Output
- Compact Rack Mounted Solution
- Wrap Around System Bypass
- Ruggedized Metal Enclosure
Downloads
Maintenance Bypass - F-MBP32 -Datasheet
Tech Specs
Maintenance Bypass - F-MBP32
| Output |
| Nominal Output Voltage |
230V |
| Overload Protection |
Yes |
| Maximum Total Current Draw |
32 |
| Output Connections |
(2) IEC 320 C19, (8) IEC 320 C13, Hard Wire 3 wire (1PH+N+G) |
| Input |
| Nominal Input Voltage |
230V |
| Input Frequency |
50/60 Hz |
| Input Connections |
Hard Wire 3 wire (1PH+N+E) |
| Load Power Factor Range |
0 to 1 |
| Load Capacity |
000VA |
| Maximum Input Current |
32A |
| Maximum Line Current |
32A |
| Physical
|
| Maximum Height |
178mm, 13CM |
| Maximum Width |
432mm, 43CM |
| Maximum Depth |
673mm, 26CM (29CM with Rear Terminals |
| Rack Height |
3U |
| Net Weight |
5kg |
| Color |
Black |
| Environmental |
| Operating Temperature |
-20 - 50 °C |
| Operating Relative Humidity |
0 - 95% |
| Operating Elevation |
0-4500 meters |
| Storage Temperature |
40 - 65 °C |
| Storage Relative Humidity |
0 - 95 % |
| Storage Elevation |
0-15000 meters |
| Certifications |
| Standard Warranty |
3 Year Advanced Replacement Warranty* |
