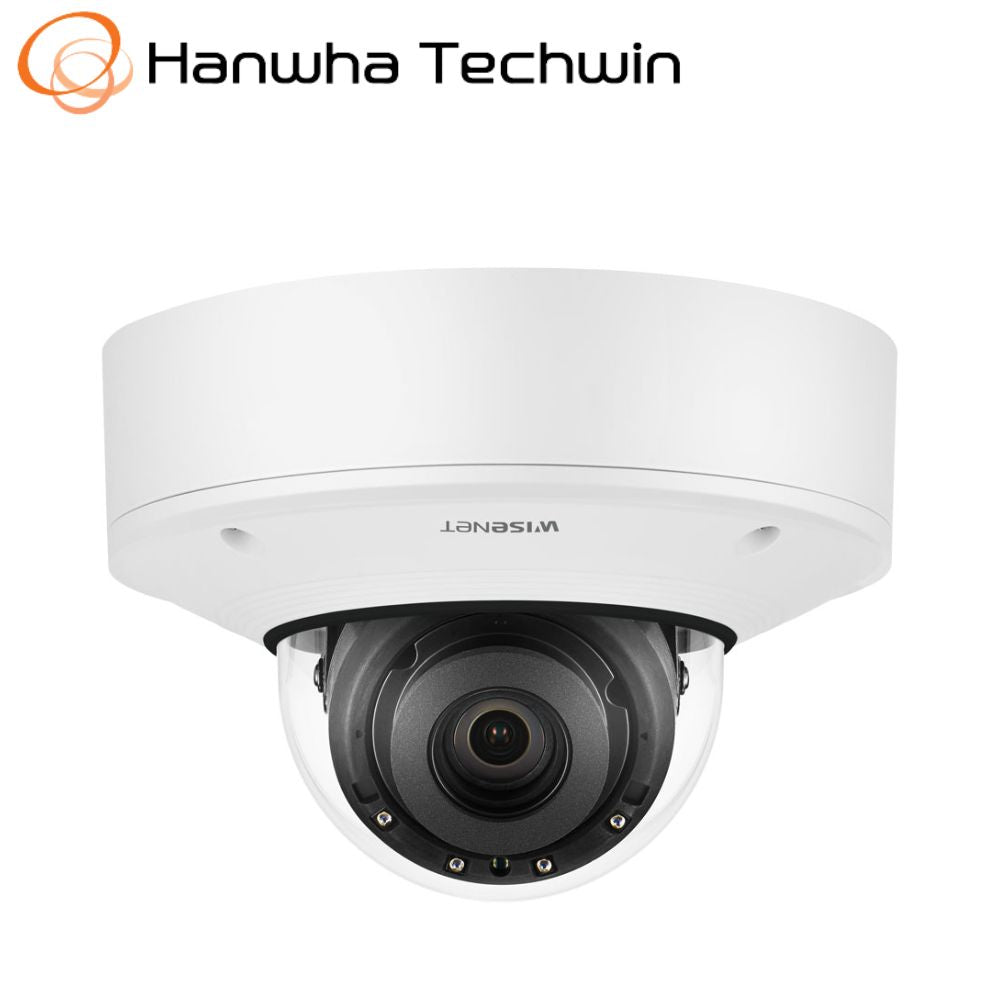

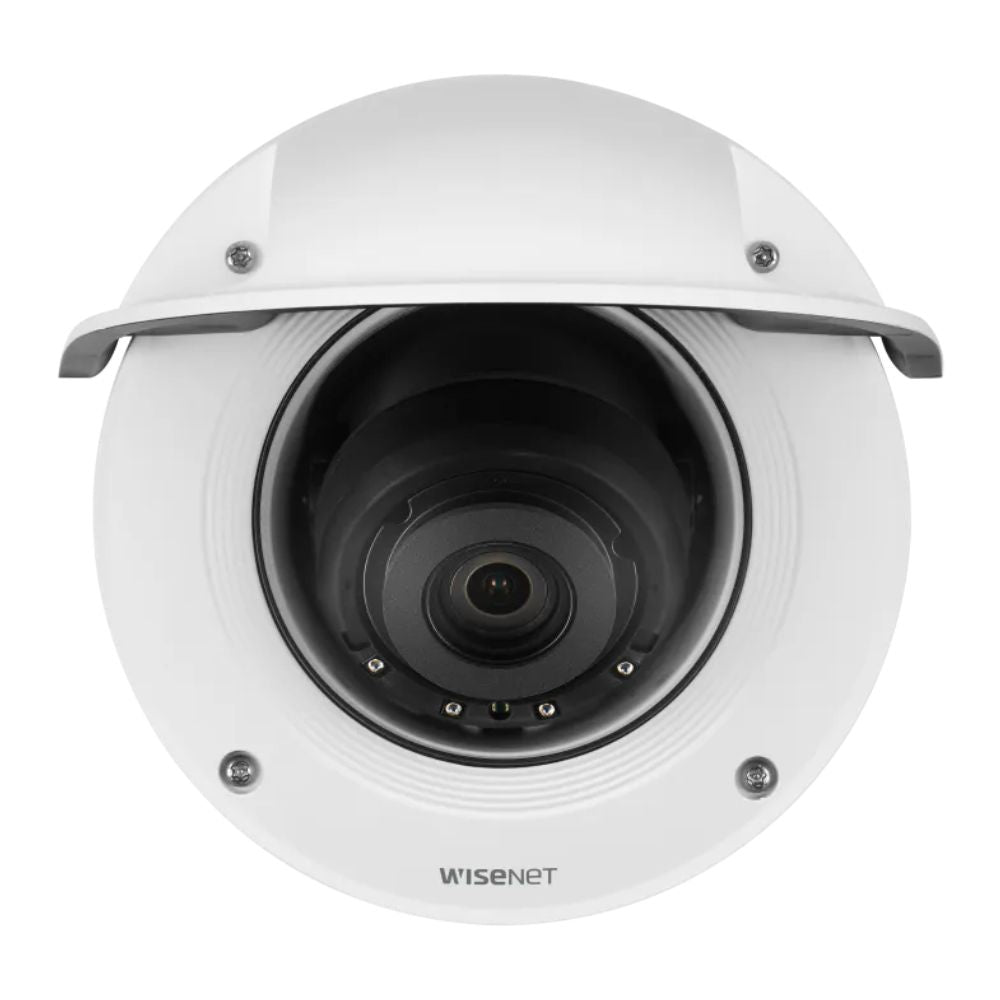

Hanwha Wisenet X Plus 5MP Outdoor Dome Camera, H.265, 50m IR, WDR, 3.6-9.4mm - HAN-XNV-8081R

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

With cutting-edge WDR technology, the Hanwha HAN-XNV-8081R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X Plus series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-8081R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality.

Features

  • Max. 5MP resolution
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & night (ICR), WDR (120dB)
  • Modular structure
  • Hallway view, WiseStream II support
  • Video and audio analytics, audio playback
  • DIS and shock detection with built-in gyro sensor
  • IP66/IP67, IK10
Datasheet
Tech Specs

Camera

Sensor

6 MP 1/1.8" CMOS

Focal Length

3.9 to 9.4mm

Maximum Aperture

f/1.3

Zoom

Optical: 2.4x
Digital

Lens Field of View

Horizontal: 92.1 to 38.7°
Vertical: 67.2 to 29.0°
Diagonal: 119.9 to 48.6°

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.07 Lux
B&W: 0 Lux

Shutter Speed

1/12,000 to 2 Seconds

Camera Angle Adjustment

Horizontal: 0 to 360°
Vertical: -45 to 85°

Video

Streaming Resolution

2560 x 1920 at 30 fps

Supported Video Compression

H.264, H.265, MJPEG

Multi-View Streaming

Yes, 10 Streams

Audio

1- or 2-Way Audio

Two-Way

Audio Formats

AAC, ADPCM, G.711, G.726

Built-In Mic

No

Built-In Speaker

No

Networking

Security

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

Supported Protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)

SUNAPI (HTTP API)

Analytics

Defocus Detection, Directional Detection, Fog Detection, Face Detection, Motion Detection, Digital Auto Tracking, Appear, Disappear, Enter, Exit, Loitering, Tampering, Virtual Line, Audio Detection, Sound Classification, and Shock Detection

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

System Requirements

Windows OS Support

Windows 7, 8.1, 10

Mac OS Support

macOS 10.12, OS X 10.11, OS X 10.10

Environmental

Operating Temperature

-58 to 140°F / -50 to 60°C

Startup Temperature

-31°F / -35°C

Storage Temperature

-58 to 140°F / -50 to 60°C

Operating Humidity

0 to 89%

IP Rating

IP67

IK Rating

IK10

General

Memory

1024 MB RAM / 256 MB Flash

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

Pan/Tilt

None

Alarm I/O

1 / 1

I/O Connections

1 x RJ45
1 x Power

IR Range

164.04' / 50 m

Supported Languages

Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish

Certifications

EAC, UL, as per Manufacturer

Internal Storage

None

External Storage Options

NAS

Power Source

DC, PoE 802.3af (15 W)

Power Consumption

PoE: 12.95 W
DC: 11.7 W

Material of Construction

Aluminum

Dimensions

ø: 7.1 x H: 4.9" / ø: 180.0 x H: 125.0 mm

Weight

3.85 lb / 1750 g

Packaging Info

Package Weight

7.44 lb

Box Dimensions (LxWxH)

14.3 x 11.1 x 9.4"

Read more

Hanwha Wisenet X Plus 5MP Outdoor Dome Camera, H.265, 50m IR, WDR, 3.6-9.4mm - HAN-XNV-8081R

Product form

SKU: XNV-8081R

$1,660.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Product Information

    Description

    Description

     Special Order

    This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

    With cutting-edge WDR technology, the Hanwha HAN-XNV-8081R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X Plus series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-8081R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality.

    Features

    • Max. 5MP resolution
    • H.265, H.264, MJPEG codec supported, multiple streaming
    • Day & night (ICR), WDR (120dB)
    • Modular structure
    • Hallway view, WiseStream II support
    • Video and audio analytics, audio playback
    • DIS and shock detection with built-in gyro sensor
    • IP66/IP67, IK10
    Datasheet
    Tech Specs

    Camera

    Sensor

    6 MP 1/1.8" CMOS

    Focal Length

    3.9 to 9.4mm

    Maximum Aperture

    f/1.3

    Zoom

    Optical: 2.4x
    Digital

    Lens Field of View

    Horizontal: 92.1 to 38.7°
    Vertical: 67.2 to 29.0°
    Diagonal: 119.9 to 48.6°

    IR Cut Filter

    Mechanical

    Day/Night

    Yes

    Minimum Illumination

    Color: 0.07 Lux
    B&W: 0 Lux

    Shutter Speed

    1/12,000 to 2 Seconds

    Camera Angle Adjustment

    Horizontal: 0 to 360°
    Vertical: -45 to 85°

    Video

    Streaming Resolution

    2560 x 1920 at 30 fps

    Supported Video Compression

    H.264, H.265, MJPEG

    Multi-View Streaming

    Yes, 10 Streams

    Audio

    1- or 2-Way Audio

    Two-Way

    Audio Formats

    AAC, ADPCM, G.711, G.726

    Built-In Mic

    No

    Built-In Speaker

    No

    Networking

    Security

    Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

    Supported Protocols

    ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

    System Integration

    Application Programming Interface (API)

    SUNAPI (HTTP API)

    Analytics

    Defocus Detection, Directional Detection, Fog Detection, Face Detection, Motion Detection, Digital Auto Tracking, Appear, Disappear, Enter, Exit, Loitering, Tampering, Virtual Line, Audio Detection, Sound Classification, and Shock Detection

    Event Trigger

    Yes

    Event Action

    Recording, Notification, Alarm

    System Requirements

    Windows OS Support

    Windows 7, 8.1, 10

    Mac OS Support

    macOS 10.12, OS X 10.11, OS X 10.10

    Environmental

    Operating Temperature

    -58 to 140°F / -50 to 60°C

    Startup Temperature

    -31°F / -35°C

    Storage Temperature

    -58 to 140°F / -50 to 60°C

    Operating Humidity

    0 to 89%

    IP Rating

    IP67

    IK Rating

    IK10

    General

    Memory

    1024 MB RAM / 256 MB Flash

    Media/Memory Card Slot

    Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

    Pan/Tilt

    None

    Alarm I/O

    1 / 1

    I/O Connections

    1 x RJ45
    1 x Power

    IR Range

    164.04' / 50 m

    Supported Languages

    Czech
    Dutch
    English
    French
    German
    Greek
    Hungarian
    Italian
    Japanese
    Korean
    Polish
    Portuguese
    Russian
    Spanish
    Swedish
    Traditional Chinese
    Turkish

    Certifications

    EAC, UL, as per Manufacturer

    Internal Storage

    None

    External Storage Options

    NAS

    Power Source

    DC, PoE 802.3af (15 W)

    Power Consumption

    PoE: 12.95 W
    DC: 11.7 W

    Material of Construction

    Aluminum

    Dimensions

    ø: 7.1 x H: 4.9" / ø: 180.0 x H: 125.0 mm

    Weight

    3.85 lb / 1750 g

    Packaging Info

    Package Weight

    7.44 lb

    Box Dimensions (LxWxH)

    14.3 x 11.1 x 9.4"

    Read more
