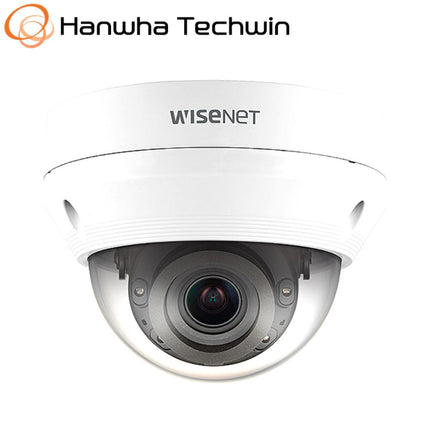

Hanwha Wisenet New-Q 5MP Outdoor VF Dome Camera, H.265, 30m IR, IP66, IK10, 3.2-10mm - QNV-8080R

Description

Description

Hanwha’s 5MP QNV-8080R Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices.

Features

  • Max. 5 Megapixel (2592 x 1944) resolution
  • 3.2~10mm(3.1x) motorized varifocal lens
  • 0.15Lux (Color), 0Lux (B/W, IR LED on)
  • Max. 30fps@5MP (H.265 / H.264)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night, WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 30m
  • IP66, IK10, PoE
Datasheet
Tech Specs

Hanwha Wisenet NEW-Q 5MP Outdoor VF Dome Camera, H.265, 30m IR, IP66, IK10, 3.2-10mm - QNV-8080R

VIDEO
Imaging Device 1/2.8" 5MP CMOS
Effective Pixels 2592(H) x 1944(V)
Min. Illumination Color : 0.15Lux (F1.6, 1/30sec)
BW : 0Lux (IR LED on)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation
LENS
Focal Length (Zoom Ratio) 3.2~10mm (3.1x) motorized varifocal
Max. Aperture Ratio F1.6 (Wide)~F2.9 (Tele)
Angular Field of View H : 100.3°(Wide)~31.2°(Tele) / V : 72.3°(Wide)~23.5°(Tele) / H : 133.1°(Wide)~38.8°(Tele)
Focus Control Simple focus
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚
OPERATIONAL
IR Viewable Length 30m (98.42ft)
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90˚/270˚)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm events File upload via FTP and e-mail, Notification via e-mail,
SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Resolution 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480,
640 x 480, 640 x 360
Max. Framerate H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz)
MJPEG : Max. 15fps/12fps (60Hz/50Hz)
Smart Codec WiseStream II
Video Quality Adjustment H.264/H.265 : Target bitrate level control / MJPEG : Quality level control
Bitrate Control H.264/H.265 : CBR or VBR / MJPEG : VBR
Streaming Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) login authentication, Digest login authentication, IP address filtering,
User access log, 802.1X authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Application Programming Interface ONVIF Profile S/G/T
SUNAPI (HTTP API)
Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14
Recommended Browser : Google Chrome
Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only),
Apple Safari (Mac OS X only)
Memory 512MB RAM, 256MB Flash
ENVIRONMENTAL
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
ELECTRICAL
Input Voltage PoE (IEEE802.3af, Class3)
Power Consumption PoE : Max 8.9W, typical 6.6W
MECHANICAL
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Ø137.0 x 106.1mm (Ø5.39 x 4.18"), 700g (1.543 lb)

Video

Read more
