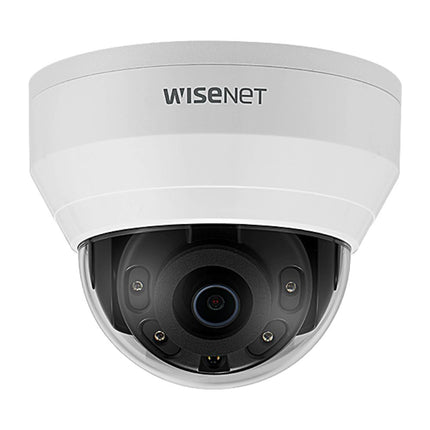

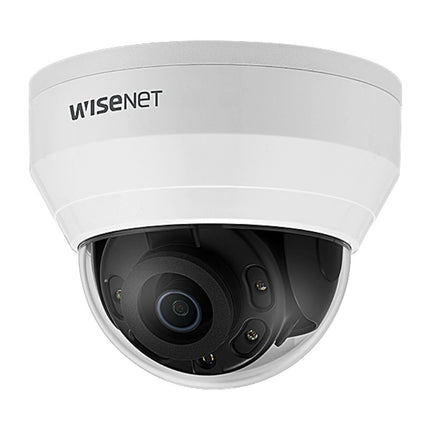

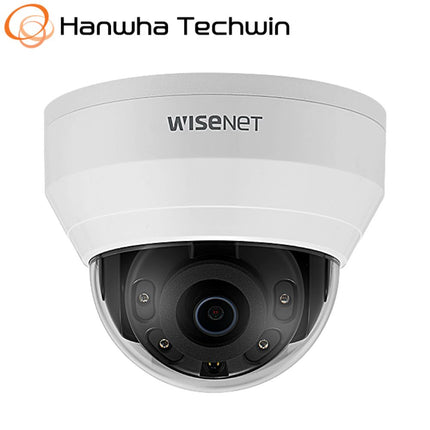

Hanwha Wisenet New-Q 5MP Outdoor Dome Camera, H.265, WDR, 20m IR, IP66, IK10, 2.8mm - QNV-8010R

Description

Description

Hanwha’s 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the HAN-QNV-8010R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha HAN-QNV-8010R offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.

Features

  • Max. 5Megapixel (2592 x 1944) resolution
  • Built-in 2.8mm fixed lens
  • 0.15Lux (Color), 0Lux (B/W, IR LED on)
  • Max. 30fps@5MP (H.265 / H.264)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night, WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 20m
  • IP66, IK10, PoE
Datasheet
Tech Specs

Hanwha Wisenet NEW-Q 5MP Outdoor Dome Camera, H.265, WDR, 20m IR, IP66, IK10, 2.8mm - QNV-8010R

VIDEO
Imaging Device 1/2.8" 5MP CMOS
Effective Pixels 2592(H) x 1944(V)
Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
BW : 0Lux (IR LED on)		 Color : 0.15Lux (F1.6, 1/30sec)
BW : 0Lux (IR LED on)		 Color : 0.15Lux (F2.0, 1/30sec)
BW : 0Lux (IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation
LENS
Focal Length (Zoom Ratio) 2.8mm fixed focal 4.0mm fixed focal 6.0mm fixed focal
Max. Aperture Ratio F2.0 F1.6 F2.0
Angular Field of View H : 104.7°/ V : 76.5°/ D : 136.0° H : 79.8°/ V : 58.1°/ D : 105.9° H : 49.4°/ V : 37.4°/ D : 61.0°
Focus Control Fixed
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚
OPERATIONAL
IR Viewable Length 20m (65.62ft) 25m (82.02ft) 30m (98.42ft)
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90˚/270˚)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm events File upload via FTP and e-mail, Notification via e-mail,
NETWORK
Ethernet SRJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Resolution 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480,
640 x 480, 640 x 360
Max. Framerate H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz) / MJPEG : Max. 15fps/12fps (60Hz/50Hz)
Smart Codec WiseStream II
Video Quality Adjustment H.264/H.265 : Target bitrate level control
MJPEG : Quality level control
Bitrate Control H.264/H.265 : CBR or VBR / MJPEG : VBR
Streaming Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) login authentication, Digest login authentication, IP address filtering,
User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Application Programming Interface ONVIF Profile S/G/T
SUNAPI (HTTP API)
Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14
Recommended Browse r: Google Chrome
Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only),
Apple Safari (Mac OS X only)
Memory 512MB RAM, 256MB Flash
ENVIRONMENTAL
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity * Start up should be done at above -20°C
Certification -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage IP66, IK10
Power Consumption PoE : Max 7.5W, typical 5.8W PoE : Max 7.2W, typical 5.4W PoE : Max 7.2W, typical 5.4W
MECHANICAL
Color / Materia White / Aluminum
RAL Code RAL9003
Product dimensions / weight Ø120.3 x 91.7mm (Ø4.74 x 3.61"), 510g (1.124 lb)

Video

Read more

Hanwha Wisenet New-Q 5MP Outdoor Dome Camera, H.265, WDR, 20m IR, IP66, IK10, 2.8mm - QNV-8010R

Product form

SKU: QNV-8010R

$412.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Product Information

    Description

    Description

    Hanwha’s 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the HAN-QNV-8010R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha HAN-QNV-8010R offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.

    Features

    • Max. 5Megapixel (2592 x 1944) resolution
    • Built-in 2.8mm fixed lens
    • 0.15Lux (Color), 0Lux (B/W, IR LED on)
    • Max. 30fps@5MP (H.265 / H.264)
    • H.265, H.264, MJPEG codec support, Multiple streaming
    • Day & Night, WDR (120dB)
    • Tampering, Motion detection, Defocus detection
    • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
    • Hallway view, WiseStream II support
    • IR Viewable length 20m
    • IP66, IK10, PoE
    Datasheet
    Tech Specs

    Hanwha Wisenet NEW-Q 5MP Outdoor Dome Camera, H.265, WDR, 20m IR, IP66, IK10, 2.8mm - QNV-8010R

    VIDEO
    Imaging Device 1/2.8" 5MP CMOS
    Effective Pixels 2592(H) x 1944(V)
    Min. Illumination Color : 0.15Lux (F2.0, 1/30sec)
    BW : 0Lux (IR LED on)    		 Color : 0.15Lux (F1.6, 1/30sec)
    BW : 0Lux (IR LED on)    		 Color : 0.15Lux (F2.0, 1/30sec)
    BW : 0Lux (IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation
    LENS
    Focal Length (Zoom Ratio) 2.8mm fixed focal 4.0mm fixed focal 6.0mm fixed focal
    Max. Aperture Ratio F2.0 F1.6 F2.0
    Angular Field of View H : 104.7°/ V : 76.5°/ D : 136.0° H : 79.8°/ V : 58.1°/ D : 105.9° H : 49.4°/ V : 37.4°/ D : 61.0°
    Focus Control Fixed
    PAN / TILT / ROTATE
    Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚
    OPERATIONAL
    IR Viewable Length 20m (65.62ft) 25m (82.02ft) 30m (98.42ft)
    Camera Title Displayed up to 85 characters
    Day & Night Auto (ICR)
    Backlight Compensation BLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNR
    Motion Detection 4ea, polygonal zones
    Privacy Masking 6ea, rectangular zones
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view (90˚/270˚)
    Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm events File upload via FTP and e-mail, Notification via e-mail,
    NETWORK
    Ethernet SRJ-45 (10/100BASE-T)
    Video Compression H.265/H.264 : Main/High, MJPEG
    Resolution 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480,
    640 x 480, 640 x 360
    Max. Framerate H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz) / MJPEG : Max. 15fps/12fps (60Hz/50Hz)
    Smart Codec WiseStream II
    Video Quality Adjustment H.264/H.265 : Target bitrate level control
    MJPEG : Quality level control
    Bitrate Control H.264/H.265 : CBR or VBR / MJPEG : VBR
    Streaming Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP,
    SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) login authentication, Digest login authentication, IP address filtering,
    User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
    Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI (HTTP API)
    Wisenet open platform
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
    Portuguese, Czech, Polish, Turkish, Dutch
    Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14
    Recommended Browse r: Google Chrome
    Supported Browser : MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only),
    Apple Safari (Mac OS X only)
    Memory 512MB RAM, 256MB Flash
    ENVIRONMENTAL
    Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity * Start up should be done at above -20°C
    Certification -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
    ELECTRICAL
    Input Voltage IP66, IK10
    Power Consumption PoE : Max 7.5W, typical 5.8W PoE : Max 7.2W, typical 5.4W PoE : Max 7.2W, typical 5.4W
    MECHANICAL
    Color / Materia White / Aluminum
    RAL Code RAL9003
    Product dimensions / weight Ø120.3 x 91.7mm (Ø4.74 x 3.61"), 510g (1.124 lb)
