Description

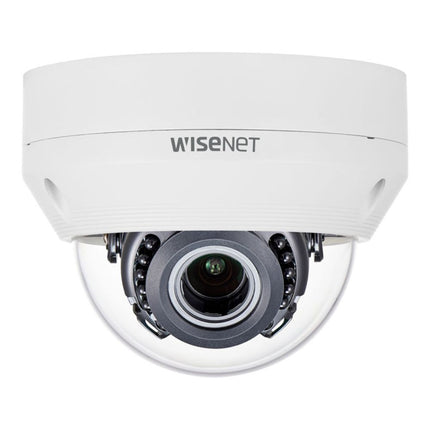

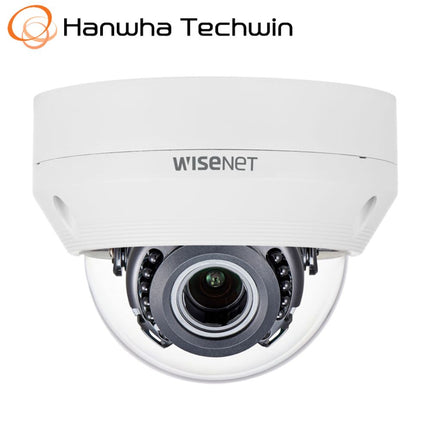

Get HD video over legacy coaxial cable with the HCV-6080RW 2MP Outdoor Analog HD Dome Camera with Night Vision from Hanwha Techwin. This camera uses a 1/2.8" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 3.2-10mm motorized varifocal lens delivers a 110.2 to 32° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported.
Features
- Full HD resolution, 2MP
- Colour: White
- Day and night (ICR), WDR (120dB)
- SSNRIV, motion detection
- IP66, IK10 support
- Transmission distance max. 500m
- Easy Installation (plug and play), dual power
Datasheet
Tech Specs
- 1/2.8" 2M CMOS progressive scan
- 3.2 - 10mm (3.1x) motorised varifocal lens
- DC auto iris
- Colour: 0.11lux (F1.6, 1/30sec)
- B/W: 0 lux (IR LED on)
- Pan range: 0 - 350 degrees
- Tilt range: 0 - 67 degrees
- Rotate range 0 - 355 degrees
- 30m IR
- Dual 24V AC and 12V DC
- Max. 5.8W power
- White, aluminium
- Dimensions: 137 x 106.1mm
- Weight: 725g
