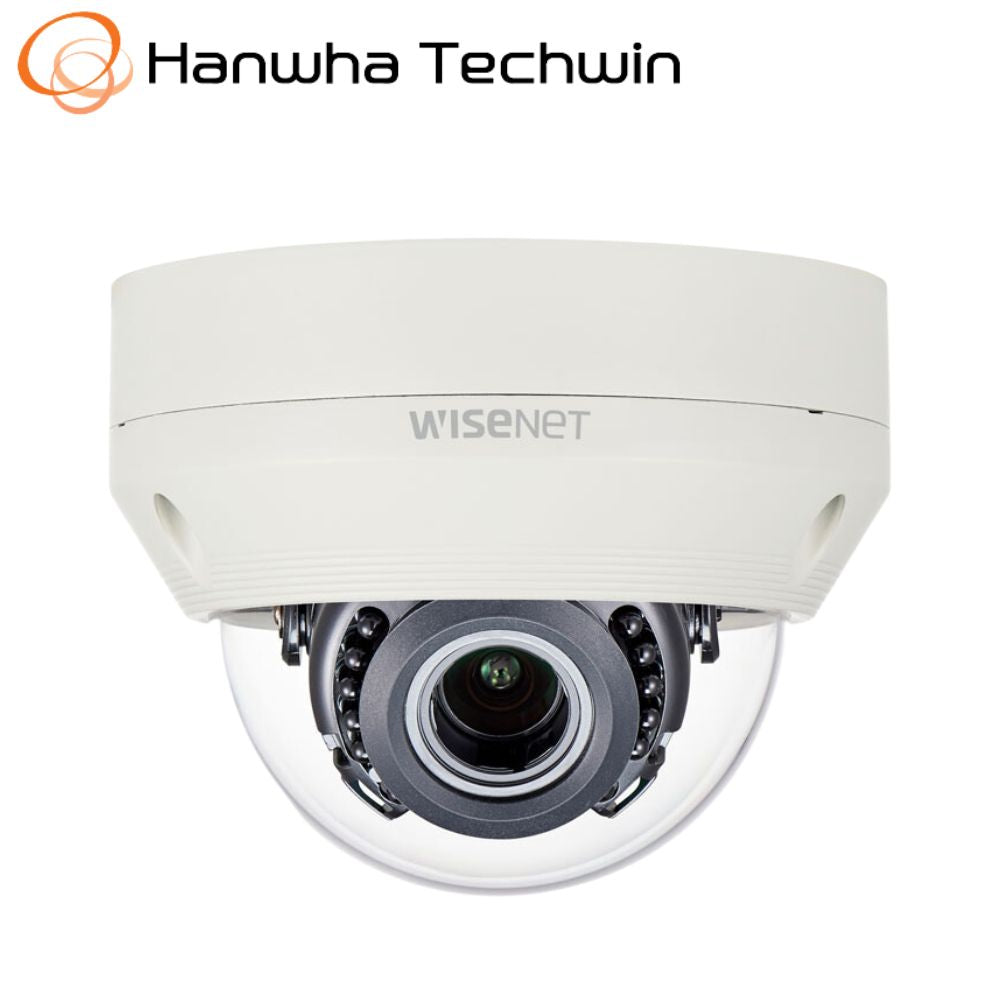

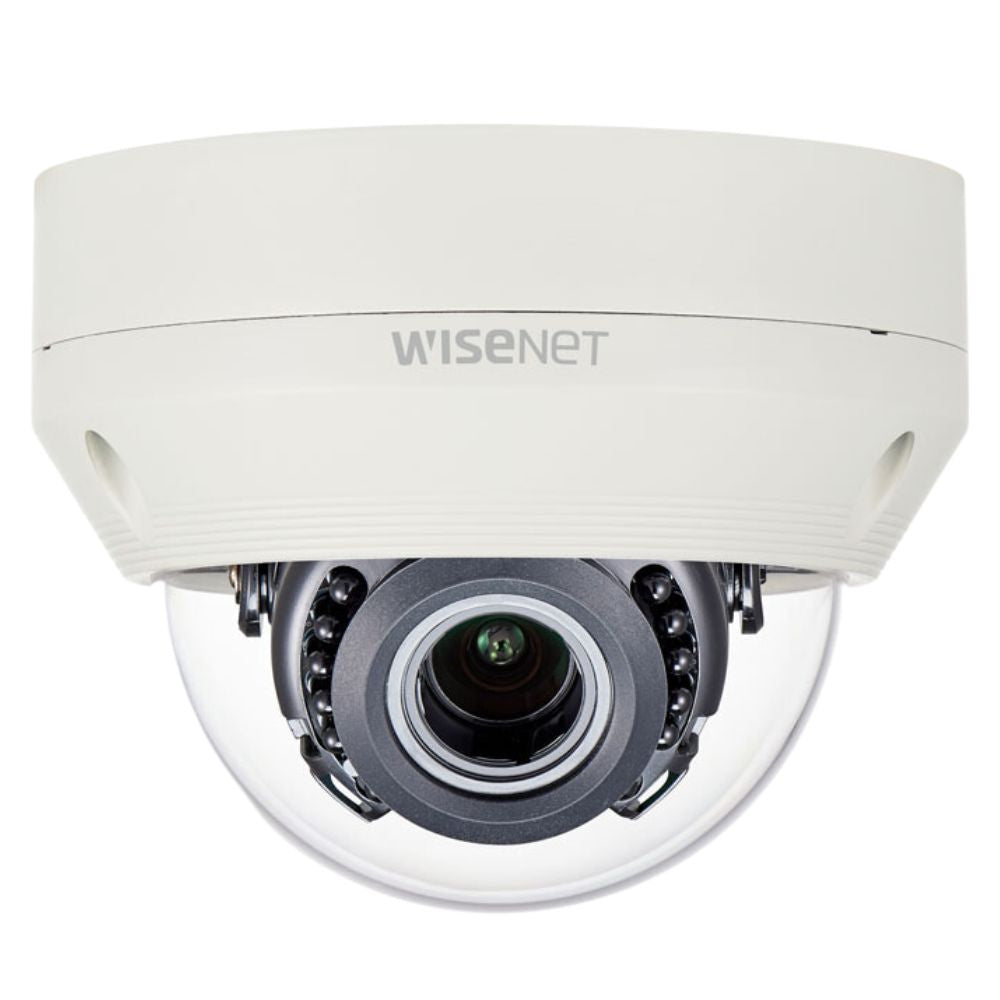

Name: Hanwha Wisenet HD+ 2MP AHD Outdoor Dome, WDR, IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-6080R
Brand: Hanwha
SKU: HCV-6080R
Price: 322.0 AUD

Hanwha Wisenet HD+ 2MP AHD Outdoor Dome, WDR, IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-6080R

VendorHanwha
Share
- WhatsApp
- Deel
- Messenger
- Email

Hanwha Wisenet HD+ 2MP AHD Outdoor Dome, WDR, IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-6080R

VendorHanwha
Share
- WhatsApp
- Deel
- Messenger
- Email

Product form

SKU: HCV-6080R

$322.00 Incl. GST

Guaranteed secure & safe checkout.

FREE Express Courier Shipping for all orders over $100

30-Day Returns Policy

Back to Base Australian Warranty & Tech Support

Australian Stock, No Grey Import Products

Product Datasheet

Product Information

Imaging Device	1/2.8" 2M CMOS
Total Pixels	1,945(H) x 1,109(V) 2.16M pixels
Effective Pixels	1,945(H) x 1,097(V) 2.13M pixels
Scanning System	Progressive Scan
Min. Illumination	Color : 0.11 Lux (F1.6, 1/30sec) B/W : 0 Lux (IR LED on)
S / N Ratio	52dB (AGC Off, Weight On)
Video Output	BNC (AHD / TVI / CVI / CVBS selectable)
Resolution	1920 x 1080
Max. Framerate	30fps@1080p(N)	25fps@1080p(P)

Focal Length (Zoom Ratio)	3.2 ~ 10mm (3.1x) motorized varifocal
Max. Aperture Ratio	F1.6
Angular Field of View	H : 110.2˚(Wide) ~ 32˚(Tele) / V : 55.4˚(Wide) ~ 18˚(Tele) / D : 128.4˚(Wide) ~ 36.6˚(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual
Lens Type	DC Auto Iris
Mount Type	Board-in Type

On Screen Display	Multi-language support (16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Camera Title	Off / On (Displayed 15 Characters)
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / User BLC / HLC / WDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRⅣ (Off / On)
Defog	Off / Auto / Manual
Motion Detection	Off / On (4 zones)
Privacy Masking	Off / On (8 zones rectangle)
Gain Control	Off / Low / Middle / High / Very High
White Balance	ATW / Outdoor / Indoor (4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
Electronic Shutter Speed	1sec ~ 1/12,000sec
Reverse	Off / H-Rev / V-Rev / HV-Rev
Profile	Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm	(MD) Output 1
Remote Control Interface	Coaxial
Protocol	AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), CCP (CVI Coax Protocol), TCP (TVI Coax Protocol)
IR Distance	30m (98.43ft)
Video Transmission Distance	500m (5C2V Coaxial Cable)

Input Voltage / Current	Dual (24V AC ±10% & 12V DC ±10%)
Power Consumption	Max. 4.2W
