Description

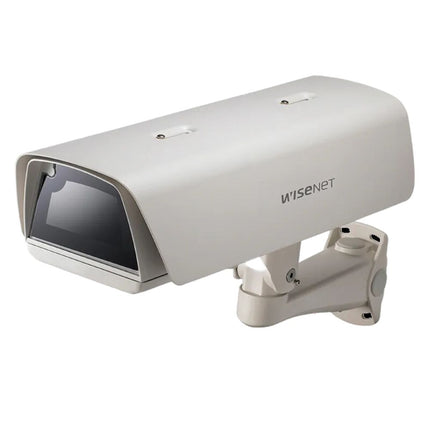

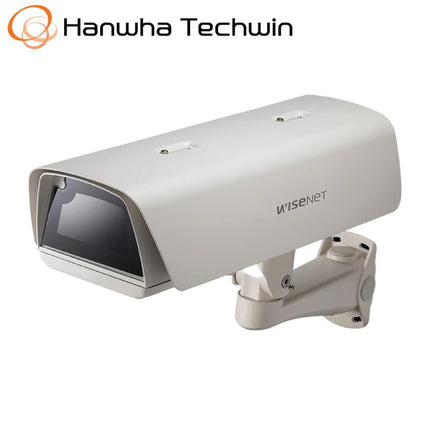

The HAN-SHB-4300HP is a camera housing that is designed for use with box cameras.
Features
- IP66
- 25W power consumption
- PoE power (IEEE802.3at)
- Dimensions: 184 x 127 x 460mm
- Weight: 2.5kg
Datasheet
Tech Specs
| Environmental |
|---|
| Operationg Temperature / Humidity |
-35˚C ~ +50˚C (-31˚F ~ +122˚F) / Less than 90% RH |
| Storage Temperature / Humidity |
None |
| Fan/Heater |
Support (Heater : 5˚C ± 5˚C on / Blower : 35˚C ± 5˚C on) |
| Certification |
IP66, CE (Class A) |
| Electrical |
|---|
| Input Voltage |
PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption |
16W FAN(2W) : 2W * 1EA HEATER(9W) : 9W * 1EA |
| Mechanical |
|---|
| Color |
Ivory |
| Material |
Aluminum |
| RAL code |
None |
| Product dimensions / weight |
Outside : 184(W)x127(H)x460(D)mm Inside : 91(W)x78(H)x250(D)mm |
| Pan / Tilt / Rotate Range |
0˚~360˚ / 0˚~90˚ |
| Tile thickness |
None |
| Mount Screw size |
None |
| Max. load |
None |
| Conduit hole |
None |
| Supported products |
Box cameras (Network) ※ For further compatible models, please visit our website or use Toolbox |
