Description
Special Order
This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

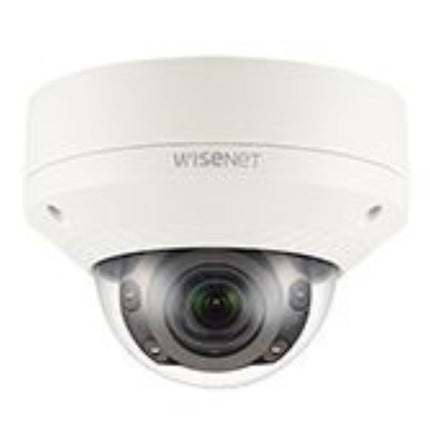

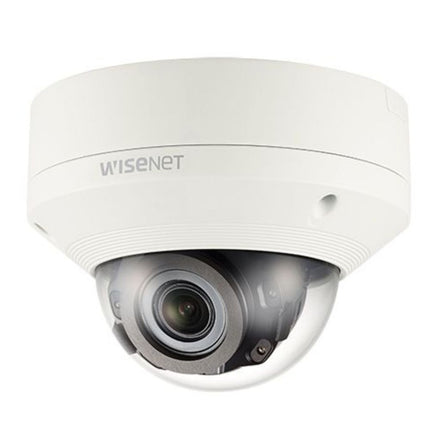

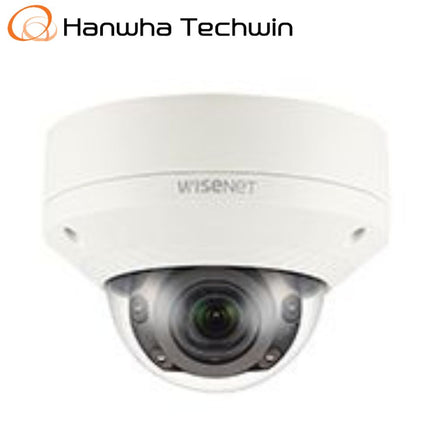

With cutting-edge WDR technology, the Hanwha HAN-XNV-8080R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-8080R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNV-8080R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.
Features
- 3.9 ~ 9.4mm (2.4x) motorized varifocal lens
- Max. 30fps@all resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover
- Dual SD slots (Max. 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
Datasheet
Tech Specs
Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 50m IR, 3.9-9.4mm - XNV-8080R
| Imaging Device |
1/1.8" 6M CMOS |
| Total Pixels |
3,096(H) x 2,094(V) |
| Effective Pixels |
2,616(H) x 1,976(V) |
| Scanning System |
Progressive Scan |
| Min. Illumination |
Color : 0.07Lux (F1.3, 1/30sec), B/W : 0Lux (IR LED on) |
| S / N Ratio |
50dB |
| Video Out |
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : micro USB type B, 1280 x 720 for installation |
| Focal Length (Zoom Ratio) |
3.9 ~ 9.4mm (2.4x) motorized varifocal |
| Max. Aperture Ratio |
F1.3 |
| Angular Field of View |
H : 92.1˚ ~ 38.7˚ / V : 67.2˚ ~ 29.0˚ / D : 119.9˚ ~ 48.6˚ |
| Min. Object Distance |
0.5m (1.64ft) |
| Focus Contro |
Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens / Mount Type |
DC auto iris, P-Iris / Board-in type |
| Pan / Tilt / Rotate Range |
0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| IR Viewable Length |
50m (164.04ft) |
| Camera Title |
Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution |
| Day & Night |
Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation |
Off / BLC / HLC (Masking / Dimming), WDR |
| BWide Dynamic Range |
120dB |
| Contrast Enhancement |
SSDR (Off / On) |
| Digital Noise Reduction |
SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization |
Off / On |
| Defog |
Off / Auto (Input from fog detection) / Manual |
| Motion Detection |
Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking |
Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Gain Control |
Off / Low / Middle / High / Manual |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| Contrast |
Level adjusment |
| LDC (Lens Distortion Correction) |
Off / On (5 levels with min / max) |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ |
24x, Digital PTZ (Preset, Group) |
| Flip / Mirror |
Off / On, Hallway view : 90˚/270˚ |
| Video & Audio Analytics |
Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual
line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection,
Digital auto tracking, Sound classification |
| Alarm I/O |
Input 1ea / Output 1ea |
| Alarm Triggers |
Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events |
File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter |
Support |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Video Compression Format |
H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution |
2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate |
H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec |
Manual mode (Area-based : 5ea) |
| WiseStream II |
Support |
| Video Quality Adjustment |
H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control |
| Bitrate Control Method |
H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability |
Multiple streaming (Up to 10 profiles) |
| Audio In |
Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out |
Line out, Max output level : 1Vrms |
| Audio Compression Format |
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz |
| Audio Communication |
Bi-directional (2-way) |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Security |
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
20 users at unicast mode |
| Edge Storage |
SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording |
| Application Programming Interface |
ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greeklore 11, Apple Safari 9 * Mac OS X only |
| Web Viewer |
Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer
- Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only Plug-in Webviewer
- Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only |
| Central Management Software |
SmartViewer, SSM |
| Operating Temperature / Humidity |
-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity |
-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance |
IP67, IP66, NEMA 4X / IK10 |
| Input Voltage / Current |
24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af) |
| Power Consumption |
Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC) |
| Color / Material |
Ivory / Aluminum |
| Dimensions (WxH) |
Ø160.0 x 118.5mm (Ø6.3" x 4.67") |
| Weight |
1.01Kg (2.23lb) |
