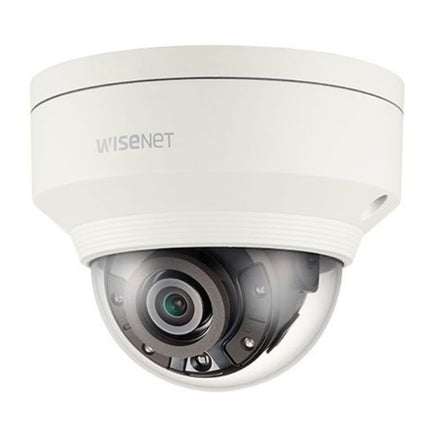

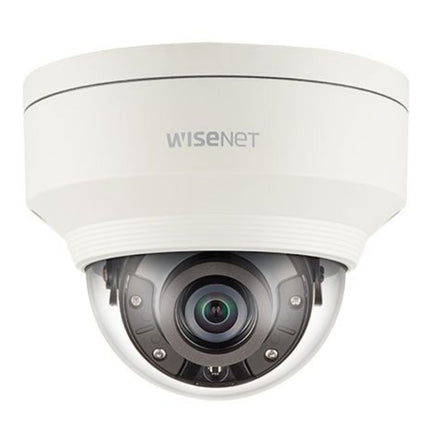

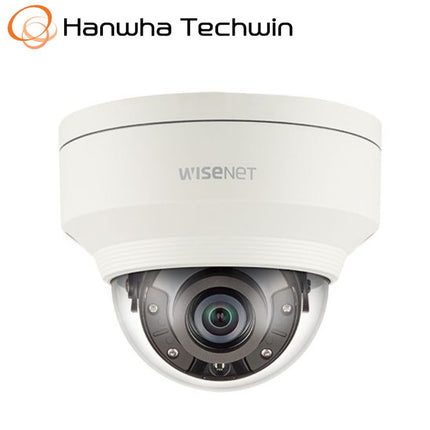

Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.7mm - XNV-8020R

Description

Description

Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the XNV-8020R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The XNV-8020R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features

  • Built-in 3.7mm/4.6mm/7mm fixed lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • Hallway view, WiseStreamII support
  • IR viewable length 30m, IP67/IP66, IK10
Datasheet
Tech Specs

Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.7mm - XNV-8020R

Video
Imaging Device 1/1.8" 6M CMOS
Total Pixels 3,096(H) x 2,094(V)
Effective Pixels 2,616(H) x 1,976(V)
Scanning System Progressive Scan
Min. Illumination Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
S / N Ratio 50dB
Video Out CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio) 3.7mm fixed (XNV-8020R), 4.6mm fixed (XNV-8030R), 7mm fixed (XNV-8040R)
Max. Aperture Ratio F1.6
Angular Field of View H : 97.5˚ / V : 71.9˚ / D : 126.2˚ (XNV-8020R), H : 77.9˚ / V : 57.9˚ / D : 98.7˚ (XNV-8030R),
H : 50.7˚ / V : 37.8˚ / D : 63.8˚ (XNV-8040R)
Min. Object Distance 0.4m (1.31ft)
Focus Control Manual
Lens / Mount Type Fixed / Board-in type
Pan / Tilt / Rot
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°
Operationl
IR Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (Input from fog detection) / Manual
Motion Detection Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
Contrast Level adjusment
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway view : 90˚/270˚
Video & Audio Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection,
Digital auto tracking, Sound classification, Heatmap, People counting, Queue management
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
SDXC) or NAS recording at event triggers, External output, DPTZ preset
Pixel Counter Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea)
WiseStream II Support
Video Quality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out, Max output level : 1Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at unicast mode
Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer
- Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only Plug-in Webviewer
- Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity 30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP67, IP66 / IK10
Electrical
Input Voltage / Current 12V DC ±10%, PoE (IEEE802.3af)
Power Consumption 12V DC ±10%, PoE (IEEE802.3af)
Mechanical
Color / Material Ivory / Metal
Dimensions (WxH) Ø120.0 x 97.5mm (Ø4.72" x 3.84")
Weight 615g (1.36lb)

Video

Read more

Hanwha Wisenet 5MP Outdoor Dome Camera, H.265, 30fps, 120dB WDR, 30m IR, 3.7mm - XNV-8020R

Product form

SKU: XNV-8020R

$832.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
