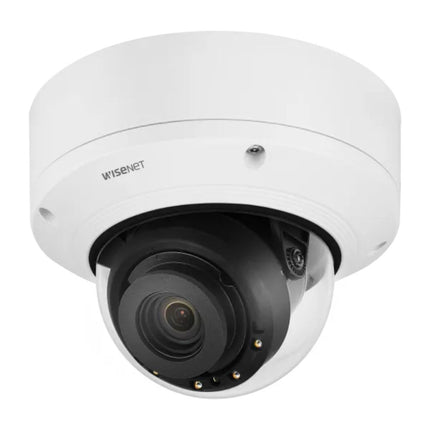

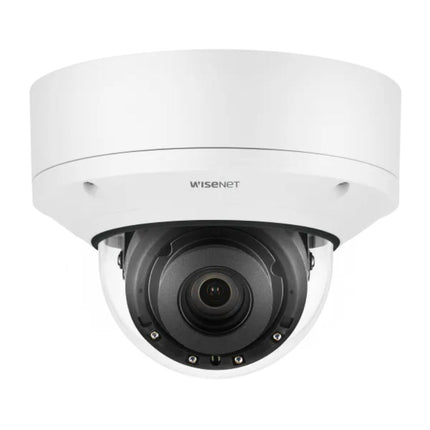

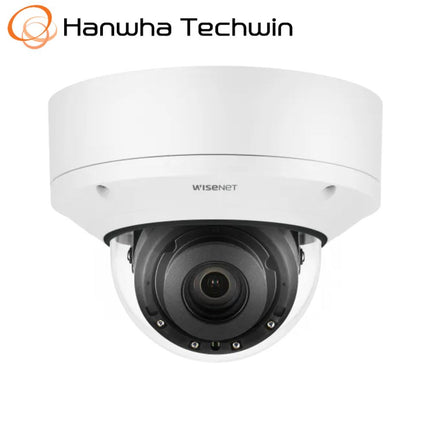

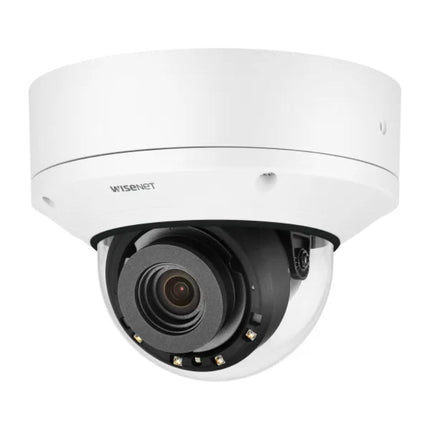

Hanwha Wisenet 4K AI Indoor Dome Camera, H.265, 30fps, WDR, IR, IP52, 4.5-10mm - HAN-PND-A9081RV

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

Hanwha's HAN-PND-A9081RV categorises what it sees into broad categories such as 'person', 'face', 'vehicle' and 'licence plate'. Delving deeper, Wisenet artificial intelligence algorithms are quickly and accurately able to identify the different attributes of the objects within the camera's field of view. This camera is also equipped with a BestShot feature which ensures that only the most suitable images of classified objects are sent to the storage server. Users have the option to set the image resolution at 2MP for full video streaming or use the BestShot feature to minimise bandwidth and storage requirements. Store operators are able to combine the HAN-PND-A9081RV with the Retail Insight v2.0 business intelligence application, to analyse what is happening within their stores, with the camera using attribution identification to help track customer demographics, age and gender. All of these features make this camera suitable for a range of applications.

Features
  • Max. 4K resolution
  • 0.05Lux at F1.6 (colour), 0Lux (B/W, IR LED on)
  • Day and night (ICR), WDR (120dB)
  • H.265, H.264, MJPEG codec, WiseStream II
  • Video analytics based on AI: object detection and classification (person, face, vehicle, licence plate)
  • Compatible with Wisenet Retail Insight v2.0 for business intelligence
  • BestShot
  • Age/gender based people counting
  • Heatmap
  • Queue management
  • Modular structure for easy installation
Datasheet
Tech Specs
Video
Imaging Device 1/1.8" CMOS
Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.65(Tele)
Angular Field of View H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Digital Noise Reduction SSNRⅤ, WiseNR Ⅱ(using AI engine)
Digital Image Stabilization Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones - Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection
Business Intelligence People counting, Queue management, Heatmap based on AI engine
Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 30m(98.42ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) Secure boot
Application Programming Interface ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP52, IK10
Input Voltage PoE+(IEEE802.3at), 12VDC
Power Consumption PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø160x125mm(6.30x4.92"), Weight : 1.60Kg (3.53lb)
Compatible Conduit hole / Gangbox 1/2"(M20) single, double, 4"octagon, 4"square
Hanging Mount (Dome) SBP-167HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft)
Observe (63PPM/ 19PPF) Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft)
Recognize (125PPM/ 38PPF) Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft)
Identify (250PPM/ 76PPF) Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft)

Read more

Hanwha Wisenet 4K AI Indoor Dome Camera, H.265, 30fps, WDR, IR, IP52, 4.5-10mm - HAN-PND-A9081RV

Product form

SKU: PND-A9081RV

$1,798.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Product Information

    Description

    Description

     Special Order

    This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

    Hanwha's HAN-PND-A9081RV categorises what it sees into broad categories such as 'person', 'face', 'vehicle' and 'licence plate'. Delving deeper, Wisenet artificial intelligence algorithms are quickly and accurately able to identify the different attributes of the objects within the camera's field of view. This camera is also equipped with a BestShot feature which ensures that only the most suitable images of classified objects are sent to the storage server. Users have the option to set the image resolution at 2MP for full video streaming or use the BestShot feature to minimise bandwidth and storage requirements. Store operators are able to combine the HAN-PND-A9081RV with the Retail Insight v2.0 business intelligence application, to analyse what is happening within their stores, with the camera using attribution identification to help track customer demographics, age and gender. All of these features make this camera suitable for a range of applications.

    Features
    • Max. 4K resolution
    • 0.05Lux at F1.6 (colour), 0Lux (B/W, IR LED on)
    • Day and night (ICR), WDR (120dB)
    • H.265, H.264, MJPEG codec, WiseStream II
    • Video analytics based on AI: object detection and classification (person, face, vehicle, licence plate)
    • Compatible with Wisenet Retail Insight v2.0 for business intelligence
    • BestShot
    • Age/gender based people counting
    • Heatmap
    • Queue management
    • Modular structure for easy installation
    Datasheet
    Tech Specs
    Video
    Imaging Device 1/1.8" CMOS
    Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
    Max. Aperture Ratio F1.6(Wide)~F2.65(Tele)
    Angular Field of View H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type P iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, WDR, SSDR
    Digital Noise Reduction SSNRⅤ, WiseNR Ⅱ(using AI engine)
    Digital Image Stabilization Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, polygonal zones
    Privacy Masking 6ea, rectangle zones - Color: Gray/Black/White
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection
    Business Intelligence People counting, Queue management, Heatmap based on AI engine
    Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
    Audio In Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 30m(98.42ft)
    Network
    Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
    Video Compression H.265/H.264: Main/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
    Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
    Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
    Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) Secure boot
    Application Programming Interface ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform
    General
    Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Web Viewer Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
    Memory 4096MB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP52, IK10
    Input Voltage PoE+(IEEE802.3at), 12VDC
    Power Consumption PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø160x125mm(6.30x4.92"), Weight : 1.60Kg (3.53lb)
    Compatible Conduit hole / Gangbox 1/2"(M20) single, double, 4"octagon, 4"square
    Hanging Mount (Dome) SBP-167HMW
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft)
    Observe (63PPM/ 19PPF) Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft)
    Recognize (125PPM/ 38PPF) Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft)
    Identify (250PPM/ 76PPF) Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft)

    Read more
