| Video |
|---|
| Imaging Device |
1/1.8" 8MP CMOS |
| Effective Pixels |
3864(H)x2180(V) |
| Min. Illumination |
Color: 0.03Lux(F1.2, 1/30sec) |
| Video Out |
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation |
| Lens |
|---|
| Focus Control |
Simple focus |
| Lens Type |
DC auto iris, P iris, Manual, I-CS |
| Mount Type |
C mount, CS mount |
| Operational |
|---|
| Camera Title |
Off / On (Up to 85 characters) |
| Day & Night |
Auto(ICR) |
| Backlight Compensation |
BLC, WDR, SSDR |
| Wide Dynamic Range |
120dB |
| Digital Noise Reduction |
SSNRⅤ |
| Digital Image Stabilization |
Support(built-in gyro sensor) |
| Motion Detection |
8ea, polygonal zones |
| Privacy Masking |
6ea, rectangle zones
- Color: Grey/Green/Red/Blue/Black/White |
| Gain Control |
Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
| LDC |
Support |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation |
Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics |
- Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object
- Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line
- Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection |
| Business Intelligence |
People counting, Queue management, Heatmap based on AI engine |

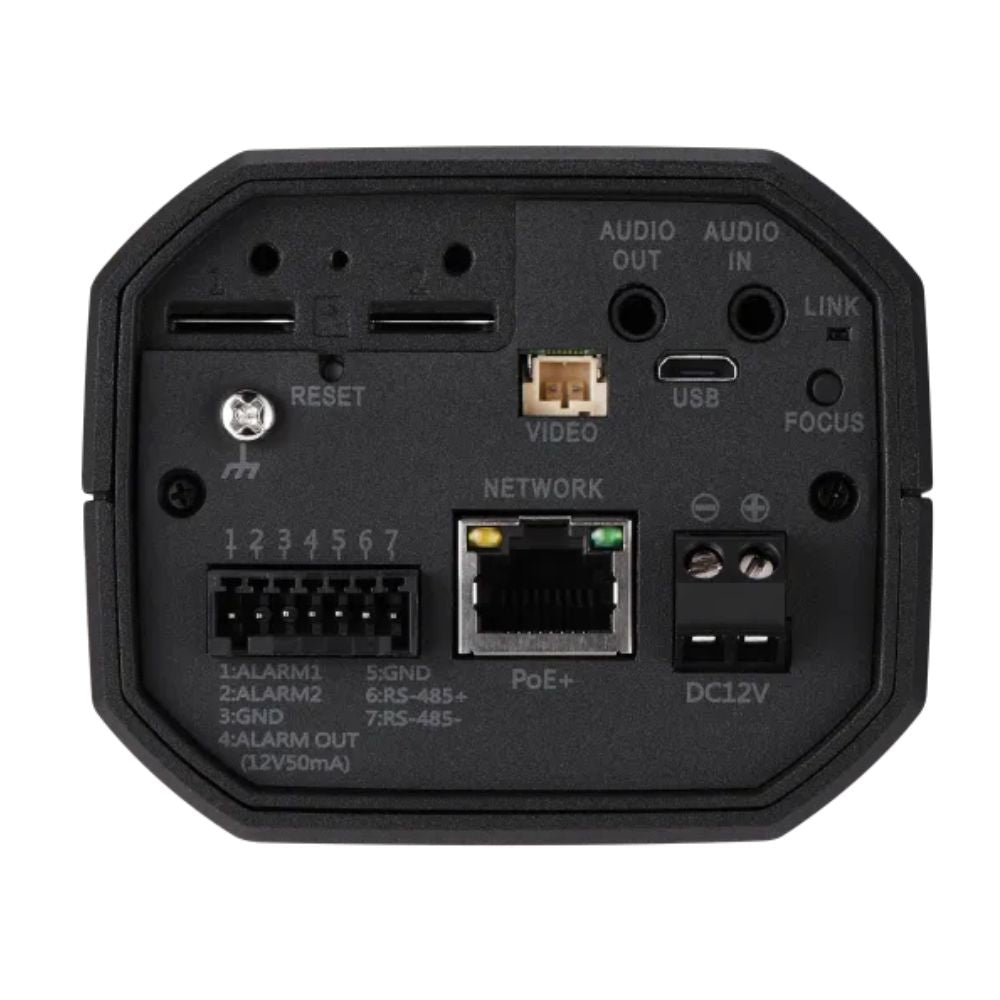

| Serial Interface |
RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O |
Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input |
| Alarm Events |
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover |
| Audio In |
Selectable(mic in/line in/Built in MIC)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out |
Line out, Max.output level: 1Vrms |
| Network |
|---|
| Ethernet |
RJ-45(10/100/1000BASE-T) |
| Video Compression |
H.265/H.264: Main/High, MJPEG |
| Resolution |
3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
| Max. Framerate |
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec |
Manual(5ea area), WiseStreamⅡ |
| Bitrate Control |
H.264/H.265: CBR or VBR
MJPEG: VBR |
| Streaming |
Unicast(20 users) / Multicast
Multiple streaming(Up to 3 profiles) |
| Audio Compression |
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security |
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA) |
| Edge Storage |
Micro SD/SDHC/SDXC 2slots 512GB |
| Application Programming Interface |
ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform |
| Web Viewer |
Supported OS: Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory |
4096MB RAM, 512MB Flash |
| Environmental |
|---|
| Operating Temperature / Humidity |
-10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity |
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Electrical |
|---|
| Input Voltage |
PoE+(IEEE802.3at), 12VDC |
| Power Consumption |
PoE+: Max 16.50W, typical 12.50W
12VDC: Max 13.50W, typical 10.80W |
| Mechanical |
|---|
| Color / Material |
Body: Black / Aluminum |
| Product dimensions / weight |
81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb) |
