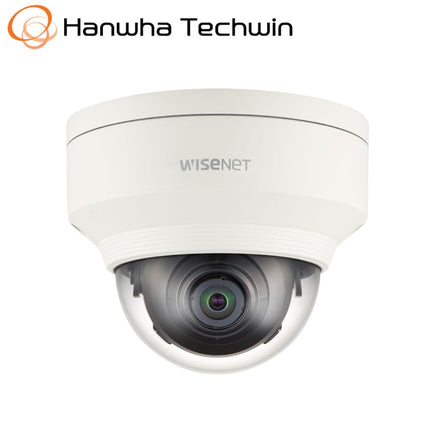

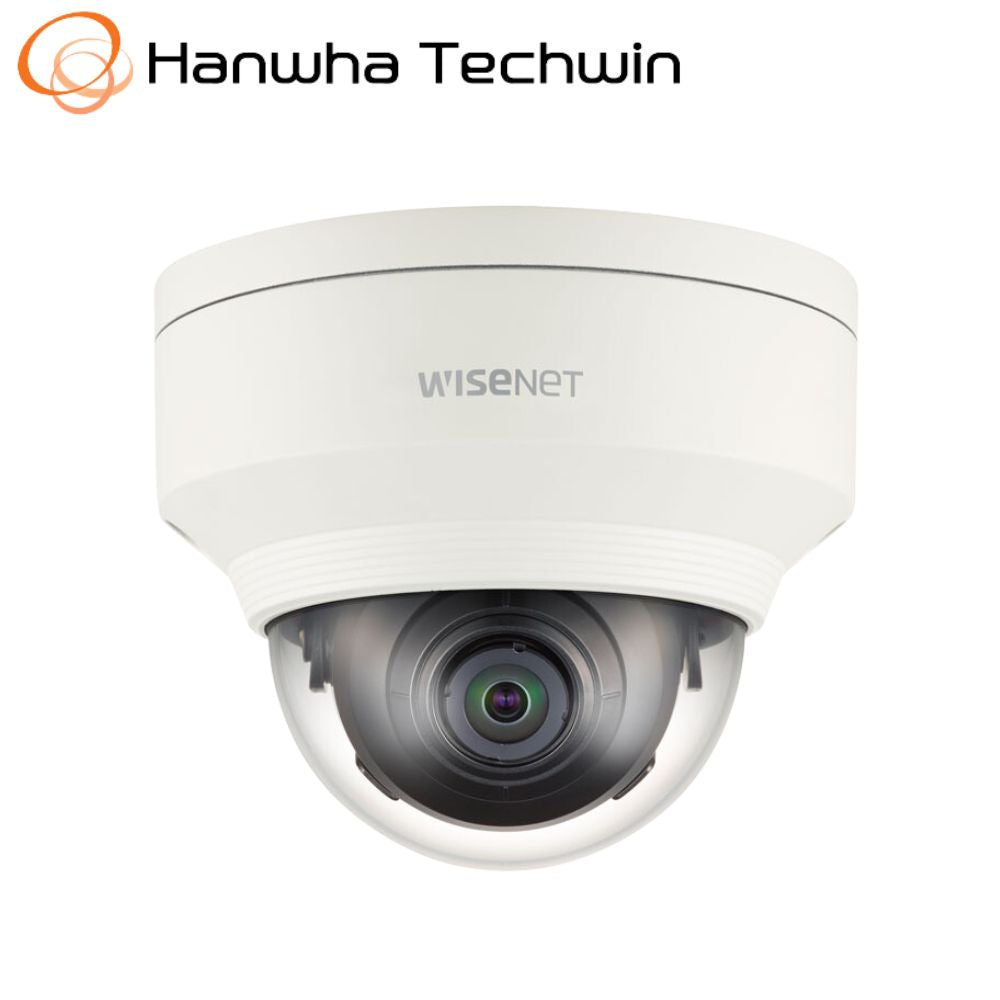

Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.4mm - HAN-XNV-6010

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

With cutting-edge WDR technology, the Hanwha HAN-XNV-6010 conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNV-6010 reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNV-6010 is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features
  • Max. 2MP (1920 x 1080) resolution
  • Built-in 2.4mm fixed lens
  • Max. 60fps at all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • WiseStream support
  • Day and night (ICR), WDR (150dB), defog
  • Loitering, directional detection, fog detection, defocus detection, digital auto tracking, heatmap, people counting
  • Queue management, tampering
  • Motion detection, handover
  • SD / SDHC / SDXC memory slot
  • IP66/IP67, IK10, NEMA 4X
  • LDC support (lens distortion correction)
Datasheet
Tech Specs
Video
Imaging Device 1/2.8" 2 MP CMOS
Total Pixels (H x V) 1945 x 1109 (2.16 MP)
Effective Pixels (H x V) 1945 x 1097 (2.13 MP)
Scanning System Progressive
Minimum Illumination Color: 0.055 lux (1/30 sec, f/2)
B&W: 0.0055 lux (1/30 sec, f/2)
S/N Ratio 50 dB
Video Output CVBS: 1.0 V p-p / 75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation
Micro-USB Type B, 1280 x 720 for installation
Pan/Tilt Pan: 0 to 354°
Tilt: 0 to 67°
Rotate Range 0 to 355°
Lens
Focal Length 2.4mm fixed
Maximum Aperture Ratio f/2
Angular Field of View Horizontal: 139°
Vertical: 73°
Diagonal: 167°
Minimum Object Distance 1.31' (0.4 m)
Focus Control Manual
Mount Type Board-in type
Operational
Camera Title On / Off (Displayed up to 85 characters per line)
Supported Characters: English / Numeric / Special characters / Chinese characters
Common Features: Multi-line (Maximum 5), Color (Gray / Green / Red / Blue / Black / White), transparency, auto scale by resolution
Day and Night Auto (ICR) / Color / B&W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150 dB
Contrast Enhancement SSDR (On / Off)
Digital Noise Reduction SSNRV (2D + 3D noise filter), On / Off
Image Stabilization Digital (On / Off)
Defog Off / Auto (Input from fog detection) / Manual
Motion Detection On (8 x 8-point polygonal zones) / Off / Handover
Privacy Masking On / Off (32 x polygonal zones)
Color: Gray / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (including mercury & sodium)
Contrast Level adjustment
Lens Distortion Correction On / Off (5 levels with minimum / maximum)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 to 1/12,000 sec)
Digital Zoom 24x
Digital PTZ Preset / Group
Flip / Mirror On / Off, Hallway: 90° / 270°
Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management
Alarm I/O 1 x input
1 x output
Alarm Triggers Alarm input, motion detection, intelligent video analytics, network disconnect
Alarm Events File upload via FTP and email, notification via email
Local storage (microSDXC) or NAS recording at event triggers, external output, digital PTZ preset
Pixel Counter Supported
Network
Ethernet RJ45 (10/100/1000Base-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Maximum Frame Rate H.265 / H.264: 60 fps at all resolutions
MJPEG: 30 fps at all resolutions
Smart Codec 5 x manual mode (area-based)
Video Quality Adjustment H.265 / H.264 / MJPEG: Target bit rate level control
Bit Rate Control H.265 / H.264: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (up to 10 profiles)
Audio In Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms
Audio Out Line out
Max Output Level: 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, and 40 kbps
AAC-LC: 48 kbps at 8 / 16 / 32 / 48 kHz
Audio Communication Bi-directional audio (2-way)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) login authentication, digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Maximum User Access 20 users at unicast mode
Edge Storage 2 x microSDXC (512 GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage)
Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12

Plugin-free Web Viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64-bit only) , Apple Safari 9 (Mac OS X only)

Plugin Web Viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only)
CMS SmartViewer, SSM
Environmental
Operating Conditions Temperature: -22°F to 131°F (-30 to 55°C)
Humidity: Less than 90% RH
Start-up should be done at above -4°F (-20°C)
Storage Conditions Temperature: -58 to 140°F (-50 to 60°C)
Humidity: Less than 90% RH
Ingress Protection IP66 and IP67
Vandal Resistance IK10
Electrical
Input Voltage 12 VDC ±10%, PoE (IEEE 802.3af)
Power Consumption Maximum 5.5 W (12 VDC)
Maximum 6 W (PoE)
Mechanical
Material Metal
Dimensions 4.7 x 3.8" (120 x 97.5 mm)
Weight 1.38 lb (0.63 kg)

Read more

Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.4mm - HAN-XNV-6010

Product form

SKU: XNV-6010

$717.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet
