| VIDEO |
| Imaging Device |
1/2.8" 2M CMOS |
| Total Pixels |
1,945(H) x 1,109(V) 2.16M |
| Effective Pixels |
1,945(H) x 1,097(V) 2.13M |
| Scanning System |
Progressive Scan |
| Min. Illumination |
Color : 0.055 Lux (1/30sec, F2.0), B/W : 0.055 Lux (1/30sec, F2.0) |
| S / N Ratio |
50dB |
| Video Out |
USB : Micro USB Type B, 1280 x 720 for Installation |
| LENS |
| Focal Length (Zoom Ratio) |
2.8mm fixed |
| Max. Aperture Ratio |
F2.0 |
| Angular Field of View |
H : 112° / V : 62° / D : 130° |
| Min. Object Distance |
0.2m (0.66ft) |
| Focus Control |
Manual |
| Lens / Mount Type |
Fixed / Board-in Type |
| PAN / TILT / ROTATE |
| Pan / Tilt / Rotate Range |
0° ~ 355° / 0° ~ 47° / 0° ~ 353° |
| OPERATIONAL |
| Camera Title |
Off / On (Displayed up to 85 Characters)
- W/W : English / Numeric / Special Characters
- China : English / Numeric / Special / Chinese Characters
- Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto Scale by Resolution |
| Day & Night |
Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation |
Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range |
150dB |
| Contrast Enhancement |
SSDR (Off / On) |
| Digital Noise Reduction |
SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization |
Off / On |
| Defog |
Off / Auto (input from fog detection) / Manual |
| Motion Detection |
Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking |
Off / On (32ea, polygonal zones)
- Color : Gray / Green / Red / Blue / Black / White
- Mosaic |
| Gain Control |
Off / Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast |
Level Adjusment |
| LDC (Lens Distortion Correction) |
Off / On (5 levels with min / max) |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ |
24X, Digital PTZ (Preset, Group) |
| Flip / Mirror |
Off / On, Hallway : 90° /270° |
| Video & Audio Analytics |
Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection,
Motion detection, Digital auto tracking, Sound classification, People counting, Heatmap, Queue management |
| Alarm Triggers |
Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events |
File Upload Via FTP, E-mail, Notification Via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter |
Support |
| NETWORK |
| Ethernet |
RJ-45 (10/100 BASE-T) |
| Video Compression Format |
H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG |
| Resolution |
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate |
H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec |
Manual mode (Area-based : 5ea) |
| WiseStreamII |
Support |
| Video Quality Adjustment |
H.265 / H.264 / MJPEG : Target bitrate level control |
| Bitrate Control Method |
H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability |
Multiple streaming (Up to 10 Profiles) |
| Audio In |
Built-in MIC. |
| Audio Compression Format |
G.711 u-law / G.726 Selectable
G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz |
| Audio Communication |
Uni-directional |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security |
HTTPS (SSL) Login Authentication, Digest Login Authentication, IP address filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
20 users at unicast mode |
| Edge Storage |
SD/SDHC/SDXC 1slot (up to 256GB)
- Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
NAS (Network Attached Storage), Local PC for instant recording |
| Application Programming Interface |
ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer |
Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer
Supported Browser: Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only)
Plug-in Webviewer
Supported Browser : MS Explore 11, Apple Safari (Mac OS X only) |
| Central Management Software |
SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| ELECTRICAL |
| Input Voltage / Current |
PoE (IEEE802.3af, Class3) |
| Power Consumption |
Max. 4.7W |
| MECHANICAL |
| Color / Material |
Module : Black / Metal, Housing : Black / Plastic, Cover : Ivory / Plastic |
| Dimensions (WxH) |

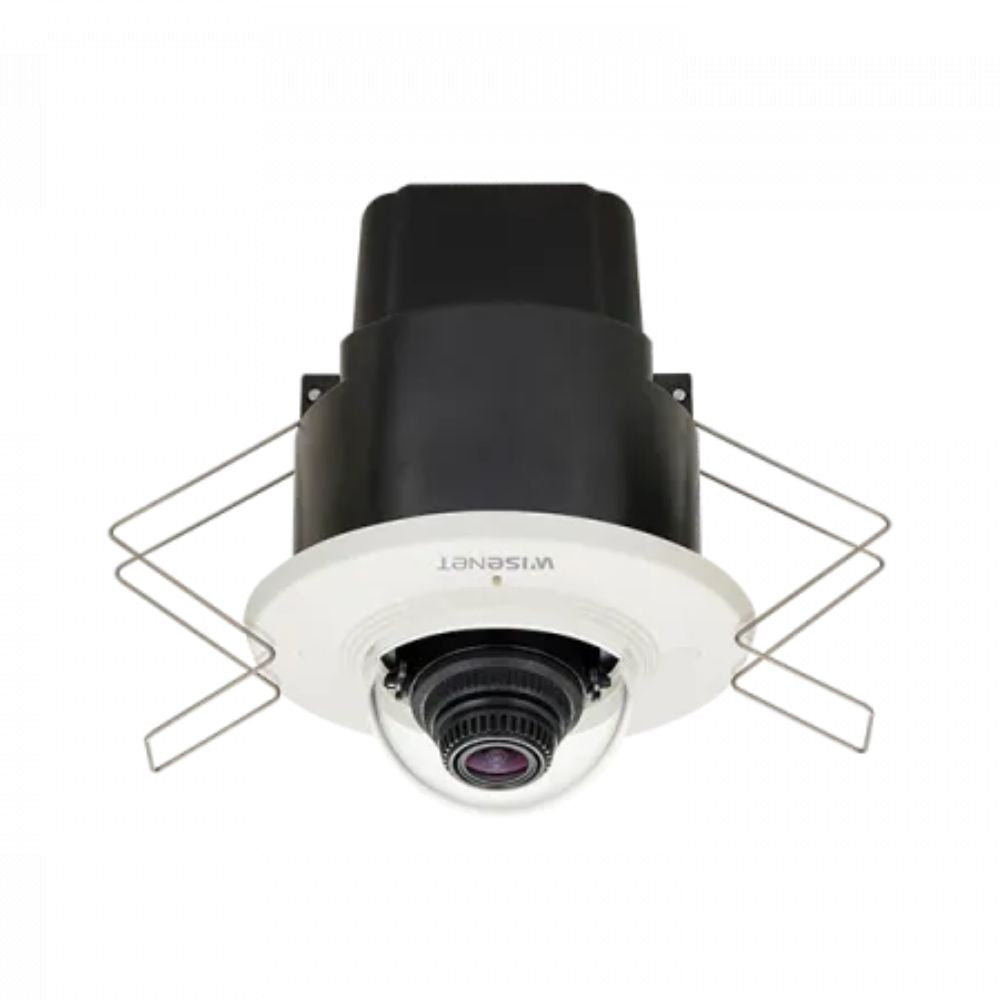

Ø98.9 x 129.1mm (Ø3.89" x 5.08") . Use a 83 ~ 86mm (3.25" ~ 3.4") diameter hole saw |
| Weight |
275g (0.61 lb) |
