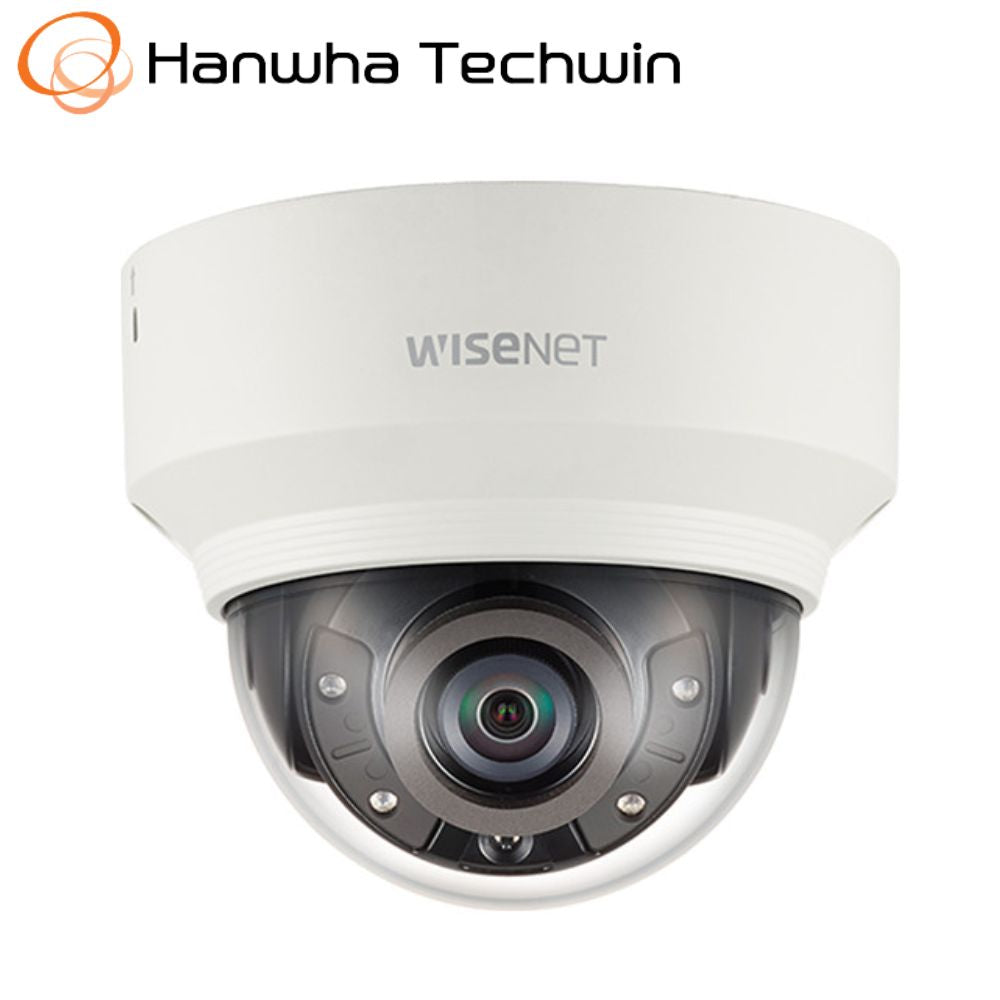

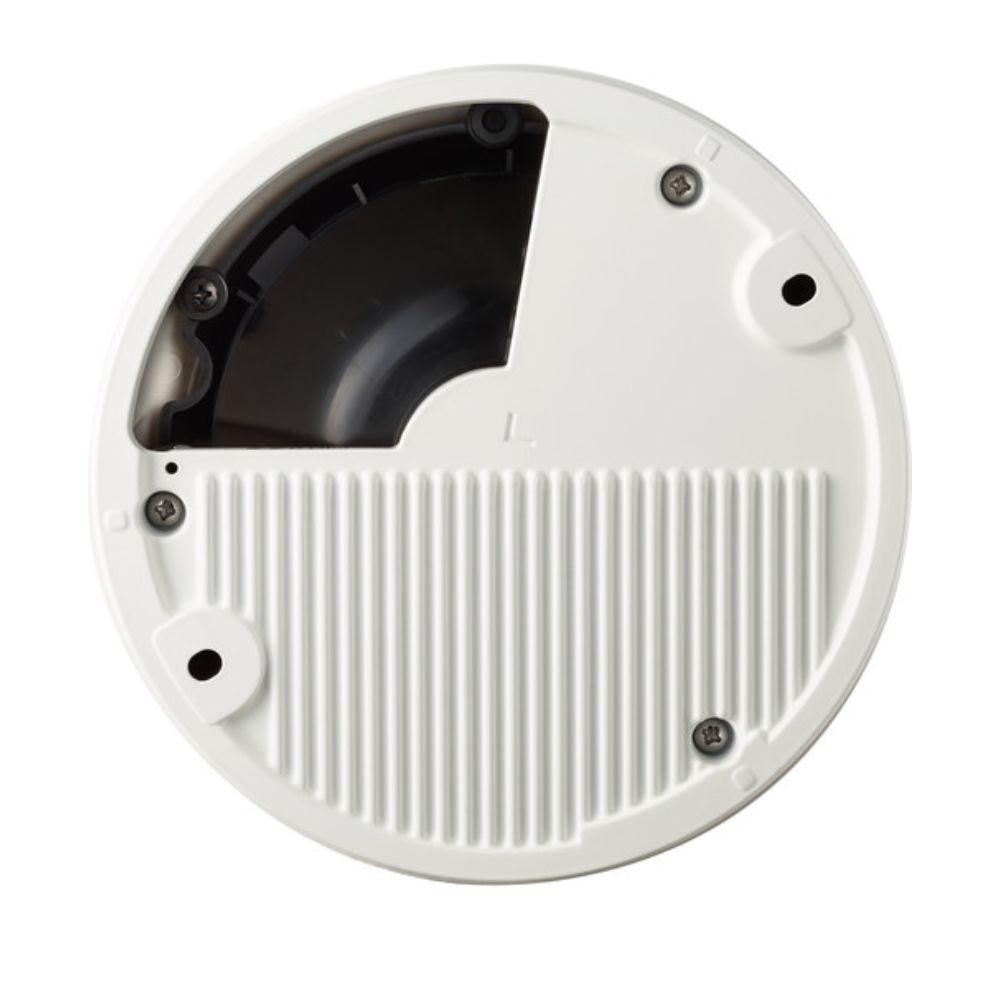

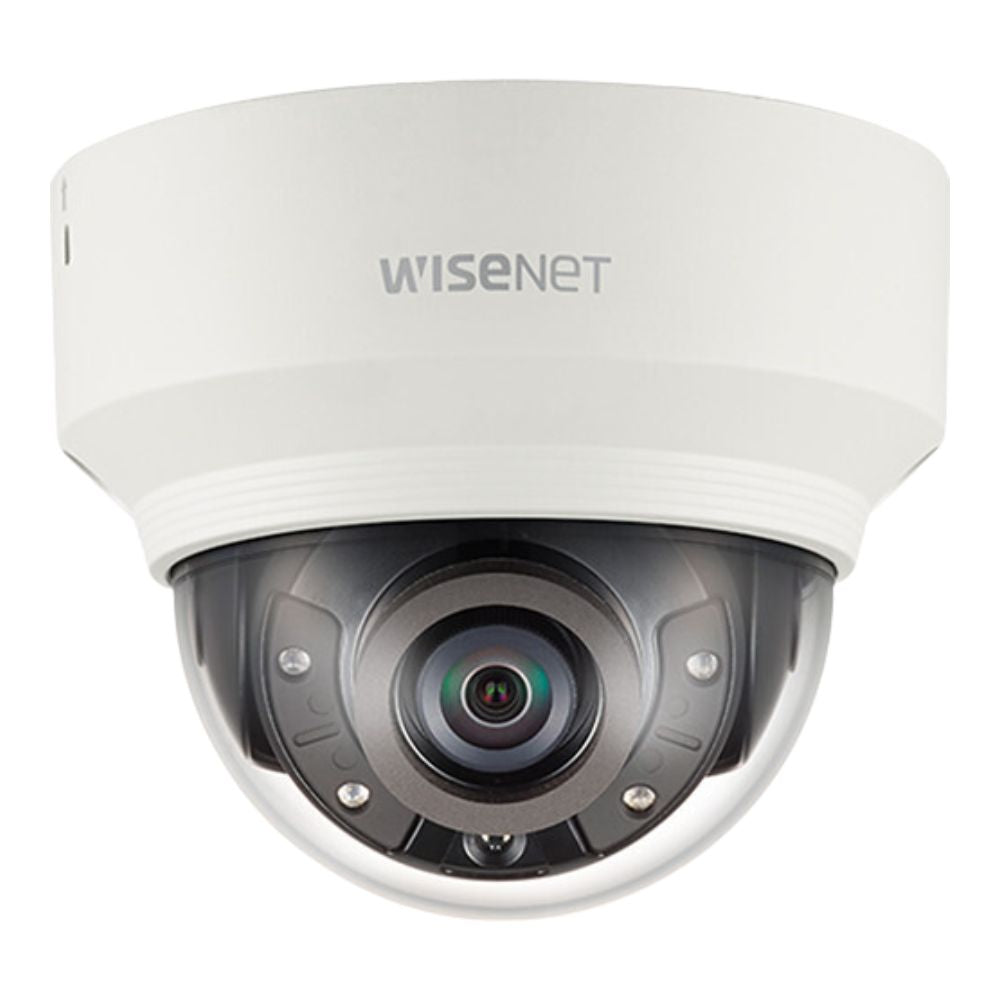

Hanwha Wisenet 2MP Indoor Dome Camera, H.265, 150dB WDR, 50m IR, 2.8-12mm - HAN-XND-6080R

Description

Description

With cutting-edge WDR technology, the Hanwha HAN-XND-6080R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XND-6080R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XND-6080R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features
  • Max. 2MP (1920 x 1080) resolution
  • 2.8 - 12mm motorised varifocal lens
  • Max. 60fps at all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day and night (ICR), WDR (150dB), defog
  • Digital image stabilisation with built-in gyro sensor
  • Loitering, directional detection, fog detection, audio detection
  • Digital auto tracking, sound classification, tampering
  • Motion detection, handover
  • SD / SDHC / SDXC memory slot
  • Hallway view, WiseStream II support
  • IR viewable length 30m
  • LDC support (lens distortion correction)
  • Bi-directional audio support
Datasheet
Tech Specs
Video
Imaging Device 1/2.8" 2 MP CMOS
Total Pixels (H x V) 1945 x 1109 2.16 MP
Effective Pixels (H x V) 1945 x 1097, 2.13 MP
Scanning System Progressive scan
Minimum Illumination Color: 0.015 lux (f/1.4, 1/30 sec)
B&W: 0 lux (IR LED on)
S/N Ratio 50 dB
Video Out CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB type-B, 1280 x 720 for installation
Lens
Focal Length 2.8-12mm (4.3x) motorized varifocal
Aperture Ratio f/1.4-3.6 (wide-tele)
Angular Field of View Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7°
Diagonal: 142.1 to 32°
Minimum Object Distance 1.64' (0.5 m)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Mount Type DC auto iris, P-Iris / Board-in type
Pan / Tilt / Rotate 0 to 354° / 0 to 67° / 0 to 355°
Operational
IR Range 98.4' (30 m)
Camera Title Off / On (Displayed up to 85 characters)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR) / Color / B&W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 150 dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Image Stabilization Digital: Off / On
Defog Off / Auto (input from fog detection) / Manual
Motion Detection Off / On (8 x 8-point polygonal zones), Handover
Privacy Masking Off / On (32, Polygonal)
Color: Gray / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor (included mercury and sodium)
Contrast Level adjustment
Lens Distortion Correction Off / On (5 levels with minimum / maximum)
Electronic Shutter Speed Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View: 90/270˚
Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification
Alarm I/O 1 x input / 1 x output
Alarm Triggers Alarm input, Motion detection, Video and Audio analytics, Network disconnect
Alarm Events File upload via FTP, email, Notification via email, local storage (SD/SDHC/SDXC) or NAS recording on event triggers, external output, DPTZ preset
Pixel Counter Support
Network
Ethernet RJ45 (10/100Base-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High
MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Frame Rate H.265 / H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps
Smart Codec Manual mode (Area-based: 5)
Video Quality Adjustment H.265 / H.264: Target bit rate level control
MJPEG: Target bit rate level control
Bit Rate Control H.265 / H.264: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (up to 10 profiles)
Audio In Selectable (Mic in / Line in), Maximum Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms
Audio Out Line out, Maximum Output Level: 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps
AAC-LC: 48 kbps at 8/16/32/48 kHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocols TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Maximum User Access 20 users at unicast mode
Edge Storage 2 x SD/SDHC/SDXC card slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plug-in Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only
CMS SmartViewer, SSM
Environmental
Operating Temperature / Humidity 14 to 131°F (-10 to 55°C) / Less than 90% RH
Storage Temperature / Humidity -58 to 140°F (-50 to 60°C) / Less than 90% RH
Vandal Resistance IK08
Electrical
Input Voltage 12 VDC ±10%, PoE (IEEE 802.3af)
Power Consumption Maximum 9 W (12 VDC), Maximum 10 W (PoE)
Mechanical
Material Plastic
Dimensions 5.54 x 4.45" (140.8 x 113 mm)
Weight 1.38 lb (624 g)

Read more

Hanwha Wisenet 2MP Indoor Dome Camera, H.265, 150dB WDR, 50m IR, 2.8-12mm - HAN-XND-6080R

Product form

SKU: XND-6080R

$568.00 Incl. GST
