Video |
|
Imaging Device |
1/2.8" progressive CMOS |
Resolution |
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Max. Framerate |
H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off) Max. 60fps/50fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
Min. Illumination |
Color: 0.007Lux(F1.2, 1/30sec, 30IRE) B/W : 0.0007Lux(F1.2, 1/30sec, 30IRE), 30/25fps Color: 0.014Lux(F1.2, 1/60sec, 30IRE) B/W : 0.0014Lux(F1.2, 1/60sec, 30IRE), 60/50fps Color: 0.028Lux(F1.2, 1/120sec, 30IRE) B/W : 0.0028Lux(F1.2, 1/120sec, 30IRE), 120/100fps |
Video Out |
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
Lens |
Focus Control |
Simple focus |
Lens Type |
DC auto iris, P-iris, Manual, I-CS |
Mount Type |
C mount, CS mount |
Operational |
Camera Title |
Displayed up to 85 characters |
Day & Night |
Auto(ICR) |
Backlight Compensation |
BLC, HLC, WDR, SSDR |
Wide Dynamic Range |
extremeWDR (150dB) |
Digital Noise Reduction |
WiseNRⅡ(Based on AI engine), SSNRⅤ |
Digital Image Stabilization |
Support(built-in gyro sensor) |
Defog |
Support |
Motion Detection |
8ea, 8point Polygonal zones |
Privacy Masking |
32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic |
Gain Control |
Support |
White Balance |
ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
LDC |
Support (Fill/stretch mode) |
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
Video Rotation |
Flip, Mirror, Hallway view(90°/270°) |
Analytics |
- Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) - Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection |
Business Intelligence |
Based on AI engine : People counting, Queue management, Heatmap |
Serial Interface |
RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |

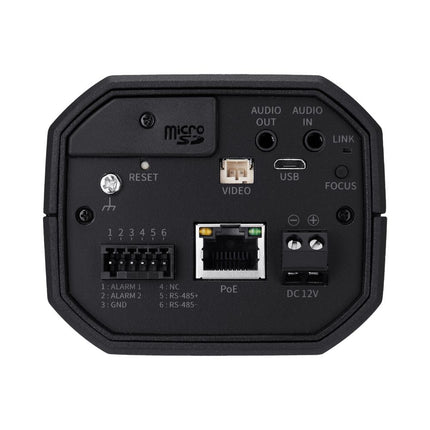

Alarm I/O |
2 configurable I/O ports |
Alarm Triggers |
Analytics, Network disconnect, Alarm input, App event, Time schedule |
Alarm Events |
When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback |
Audio In |
Selectable(mic in/line in/Built-in MIC) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out |
Line out, Max.output level: 1Vrms |
Network |
Ethernet |
Metal shielded RJ-45(10/100/1000BASE-T) |
Video Compression |
H.265/H.264: Main/High, MJPEG |
Audio Compression |
G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec |
Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
Bitrate Control |
H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming |
Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
Security |
TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
Application Programming Interface |
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General |
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
Edge Storage |
Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
Memory |
2GB RAM, 512MB Flash |
Environmental & Electrical |
Operating Temperature / Humidity |
-10 °C ~ 55°C(-14°F ~ +131°F) less than 95%RH(non-condensing) |
Storage Temperature / Humidity |
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
Input Voltage |
PoE(IEEE802.3af, Class3), 12VDC |
Power Consumption |
PoE: Max 12.95W, typical 9.8W 12VDC: Max 19W, typical 9.5W |
Mechanical |
Color / Material |
Black / Aluminum |
Product Dimensions / Weight |
81(W)x67(H)x165(D)mm(3.19x2.64x6.48"), 880g(1.94 lb) |
