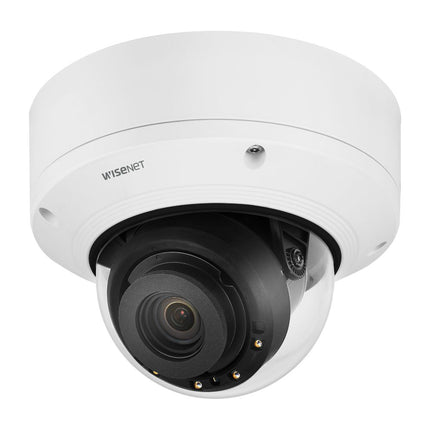

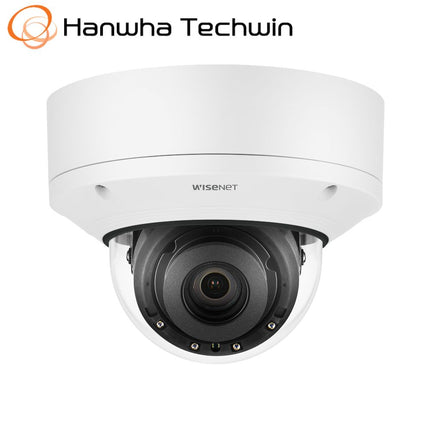

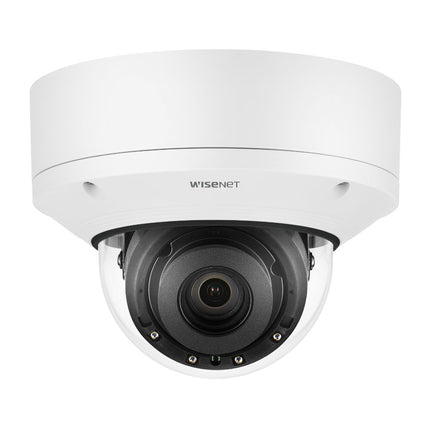

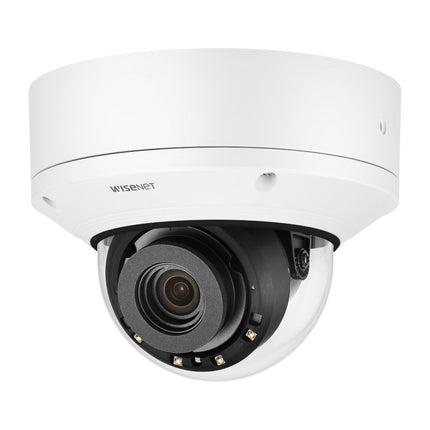

Hanwha Wisenet 2MP AI Indoor Dome Camera, H.265, 120fps, WDR, 40m IR, IK10, 4.4-9.3mm - HAN-PND-A6081RV

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

Hanwha's HAN-PND-A6081RV 4.38-9.33mm lens, 2MP indoor AI dome camera categorises what it sees into broad categories such as 'person', 'face', 'vehicle' and 'licence plate'. Delving deeper, Wisenet artificial intelligence algorithms can quickly and accurately identify the different attributes of the objects within the camera's field of view. This camera is also equipped with a BestShot feature which ensures that only the most suitable images of classified objects are sent to the storage server. Users have the option to set the image resolution at 2MP for full video streaming or use the BestShot feature to minimise bandwidth and storage requirements. Store operators can combine the HAN-PND-A6081RV with the Retail Insight v2.0 business intelligence application, to analyse what is happening within their stores, with the camera using attribution identification to help track customer demographics, age and gender. All these features make this camera suitable for a range of applications.

Features
  • Max. 2MP resolution
  • Day and night (ICR), WDR (120dB)
  • Video analytics based on AI: object detection and classification (person, face, vehicle, licence plate)
  • Compatible with Wisenet Retail Insight v2.0 for business intelligence
  • BestShot
  • Age/gender-based people counting
  • Heatmap
  • Queue management
  • Modular structure for easy installation
Datasheet
Tech Specs

Video

Imaging Device

1/2" CMOS

Resolution

1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off) MJPEG: Max. 15fps/12fps(60Hz/50Hz)

Min. Illumination

Color: 0.007Lux(F1.3, 1/30sec, 30IRE) B/W : 0.0007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

Color: 0.014Lux(F1.3, 1/60sec, 30IRE) B/W : 0.0014Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps

Color: 0.028Lux(F1.3, 1/120sec,30IRE) B/W : 0.0028Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation


Lens

Focal Length (Zoom Ratio)

4.38~9.33mm(2.13x) motorized varifocal

Max. Aperture Ratio

F1.3(Wide)~F2.15(Tele)

Angular Field of View

H:103.1°(Wide)~44.5°(Tele) / V:54.2°(Wide)~24.9°(Tele) / D:124°(Wide)~51.1°(Tele)

Min. Object Distance

0.5m(1.64ft)

Focus Control

Simple focus

Lens Type

P iris


Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

0~360 / -45~85 / 0~355


Operational

Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNR, WiseNR Ⅱ(using AI engine)

Digital Image Stabilization

Stabilization Support(built-in gyro sensor)

Motion Detection

8ea, polygonal zones

Privacy Masking

6ea, rectangle zones

- Color: Gray/Green/Red/Blue/Black/White

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

Support

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine

Video Rotation

Flip, Mirror, Hallway view(90/270)

Analytics

Classified object type : Person/Face/Vehicle/License plate

Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color)

Support Bestshot per object Analytics events based on AI engine

Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection

Analytics events

Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

*Some of the video analytics only works with people and vehicle detection

Business Intelligence

People counting, Queue management, Heatmap based on AI engine

Alarm I/O

2 configurable I/O ports, DC 12V output(Max. 50mA)

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and email

Notification via e-mail

SD/SDHC/SDXC or NAS recording at event triggers

Alarm output

Handover

Audio playback

Audio In

Selectable(mic in/line in/built-in mic)

Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio Out

Line out, Max.output level: 1Vrms

IR Viewable Length

40m(131.23ft), Wise IR

Network

Ethernet

Metal shielded RJ-45(10/100/1000 BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Audio Compression

G.711 u-law /G.726 Selectable

G.726(ADPCM) 8KHz, G.711 8KHz

G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps

AAC-LC: 48Kbps at 16KHz

Smart Codec

Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)

Bitrate Control

H.264/H.265: CBR or VBR

MJPEG: VBR

Streaming

Unicast(6 users) / Multicast

Multiple streaming(Up to 5 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)

Security

HTTPS(SSL) Login Authentication

Digest Login Authentication IP Address Filtering

User access log

802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM with FIPS 140-2 level2

Secure boot, Verify firmware forgery

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API)

Wisenet open platform

General

Webpage Language

English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Edge Storage

Micro SD/SDHC/SDXC 2slots 512GB

Memory

4096MB RAM, 512MB Flash

Environmental / Electrical

Operating Temperature / Humidity

-25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH

Storage Temperature / Humidity

-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH

Certification

IP52, IK10

Input Voltage

PoE+(IEEE802.3at), 12VDC

Power Consumption

PoE+: Max 19.50W, typical 16.00W 12VDC: Max 17.00W, typical 13.50W

Mechanical

Color / Material

White / Aluminum, Hard-coated dome bubble

RAL Code

RAL9003

Product Dimensions / Weight

Ø160x125mm(6.30x4.92"), Weight : 1.60Kg (3.53lb)

Compatible Conduit hole / Gangbox

1/2"(M20)

Single, Double, 4"Octagon, Square

Hanging Mount (Dome)

SBP-167HMW

DORI (EN62676-4 standard)

Detect (25PPM/ 8PPF)

Wide: 30.5m(100.03ft) / Tele: 93.9m(307.95ft)

Observe (63PPM/ 19PPF)

Wide: 12.2m(40.01ft) / Tele: 37.5m(123.18ft)

Recognize (125PPM/ 38PPF)

Wide: 6.1m(20.01ft) / Tele: 18.8m(61.59ft)

Identify (250PPM/ 76PPF)

Wide: 3.0m(10.00ft) / Tele: 9.4m(30.79ft)

Read more
