Hanwha Wisenet 2MP AHD PTZ Camera, 32x Zoom, WDR, IP66, IK10, 4.44 -142.6mm - HAN-HCP-6320HA

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

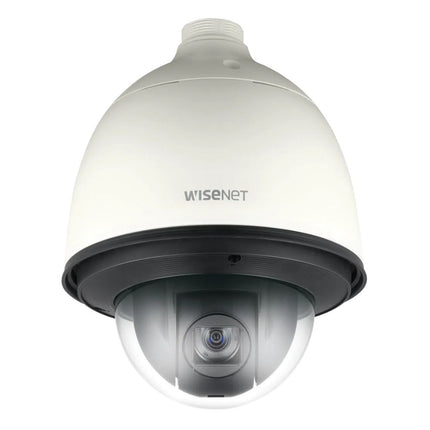

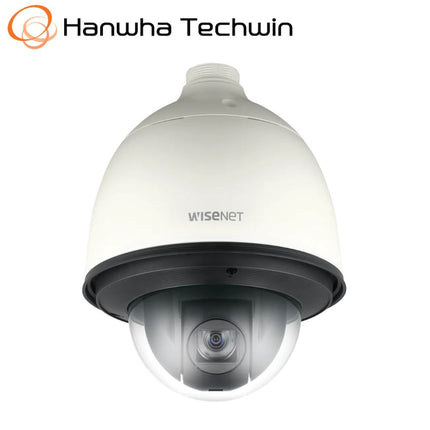

The ivory WiseNet HD+ 2MP AHD Outdoor 32x PTZ Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 4.44-142.6mm varifocal lens for capturing video at a maximum resolution of 1920 x 1080. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications in areas at risk of vandalism.

Features
  • Full HD (1920 x 1080, 30fps) resolution
  • Powerful 32x zoom, digitial 16x
  • Day and night (ICR), defog, WDR (120dB), SSNRIII
  • IP66, IK10
Datasheet
Tech Specs
Video
Imaging Device 1/2.8" progressive scan CMOS sensor, 2.38 MP
Total Pixels 1952 x 1116, 2.18 MP
Effective Pixels 1944 x 1104, 2.14 MP
Minimum Illumination Color: 0.3 lux (1/30 sec, f/1.6, 50IRE) , 0.005 lux (2 sec, f/1.6, 50IRE)
B&W: 0.03 lux (1/30 sec, f/1.6, 50IRE), 0.0005 lux (2 sec, f/1.6, 50IRE)
Color: 0.2 lux (1/30 sec, f/1.6, 30IRE), 0.003 lux (2 sec, f/1.6, 30IRE)
B&W: 0.01 lux (1/30 sec, f/1.6, 30IRE), 0.0001 lux (2 sec, f/1.6, 30IRE)
S/N Ratio 50 dB
Video Output AHD: 1920 x 1080, BNC
CVBS: SD, DIP connector type
Lens
Focal Length (Zoom Ratio) 4.44-142.6mm (optical 32x)
Maximum Aperture Ratio Wide: f/1.6
Tele: f/4.4
Field of View Horizontal: 62.8 to 2.23°
Vertical: 36.8 to 1.26°
Minimum Object Distance Wide: 4.59' (1.4 m)
Tele: 6.23' (1.9 m)
Focus Control Auto / Manual / One push
Lens Type DC auto iris
Mount Type Board-in type
Pan & Tilt
Pan Range 360° endless
Pan Speed Preset: 700°/sec
Manual: 0.024 to 200°/sec
Tilt Range 210˚ (-15 to 195˚)
Tilt Speed Preset: 700°/sec
Manual: 0.024 to 200°/sec
Preset 255
Preset Accuracy ±0.2°
Azimuth Yes (E / W / S / N / NE / SE / NW / SW OSD)
Operational
Camera Title Off / on (displayed 15 characters)
Day and Night Auto (ICR) / Color / B&W
Backlight Compensation Off / User BLC / HLC
Wide Dynamic Range 120 dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / on (4 zones rectangular zone)
Privacy Masking Off / on (32 zones rectangle)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti-flicker (1 to 1/12,000 sec)
Digital Zoom 16x
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, virtual line, enter / exit, (dis)appear
Alarm Inputs 4
Alarm Outputs 2
Remote Control Interface RS-485, Coaxial
Protocol RS-485: Samsung-T/E, Pelco P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Coaxial: ACP (AHD Coax Protocol)
Environmental
Operating Temperature -58 to 131°F (-50 to 55°C)
Operating Humidity Less than 90% RH
Ingress protection IP66
Vandal Resistance IK10
Electrical
Input Voltage 24 VAC ±10%
Power Consumption Heater Off: Maximum 24 W
Heater On: Maximum 65 W
Mechanical
Material Plastic and metal
Dimensions 8.66 x 11.56" (220 x 293.6 mm)
Weight 7.28 lb (3.3 kg)

Read more

Hanwha Wisenet 2MP AHD PTZ Camera, 32x Zoom, WDR, IP66, IK10, 4.44 -142.6mm - HAN-HCP-6320HA

Product form

SKU: HCP-6320HA

$1,420.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Product Information

    Description

    Description

     Special Order

    This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

    The ivory WiseNet HD+ 2MP AHD Outdoor 32x PTZ Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 4.44-142.6mm varifocal lens for capturing video at a maximum resolution of 1920 x 1080. Enclosed in an IP66- and IK10-rated housing, the camera can be used for both indoor and outdoor applications in areas at risk of vandalism.

    Features
    • Full HD (1920 x 1080, 30fps) resolution
    • Powerful 32x zoom, digitial 16x
    • Day and night (ICR), defog, WDR (120dB), SSNRIII
    • IP66, IK10
    Datasheet
    Tech Specs
    Video
    Imaging Device 1/2.8" progressive scan CMOS sensor, 2.38 MP
    Total Pixels 1952 x 1116, 2.18 MP
    Effective Pixels 1944 x 1104, 2.14 MP
    Minimum Illumination Color: 0.3 lux (1/30 sec, f/1.6, 50IRE) , 0.005 lux (2 sec, f/1.6, 50IRE)
    B&W: 0.03 lux (1/30 sec, f/1.6, 50IRE), 0.0005 lux (2 sec, f/1.6, 50IRE)
    Color: 0.2 lux (1/30 sec, f/1.6, 30IRE), 0.003 lux (2 sec, f/1.6, 30IRE)
    B&W: 0.01 lux (1/30 sec, f/1.6, 30IRE), 0.0001 lux (2 sec, f/1.6, 30IRE)
    S/N Ratio 50 dB
    Video Output AHD: 1920 x 1080, BNC
    CVBS: SD, DIP connector type
    Lens
    Focal Length (Zoom Ratio) 4.44-142.6mm (optical 32x)
    Maximum Aperture Ratio Wide: f/1.6
    Tele: f/4.4
    Field of View Horizontal: 62.8 to 2.23°
    Vertical: 36.8 to 1.26°
    Minimum Object Distance Wide: 4.59' (1.4 m)
    Tele: 6.23' (1.9 m)
    Focus Control Auto / Manual / One push
    Lens Type DC auto iris
    Mount Type Board-in type
    Pan & Tilt
    Pan Range 360° endless
    Pan Speed Preset: 700°/sec
    Manual: 0.024 to 200°/sec
    Tilt Range 210˚ (-15 to 195˚)
    Tilt Speed Preset: 700°/sec
    Manual: 0.024 to 200°/sec
    Preset 255
    Preset Accuracy ±0.2°
    Azimuth Yes (E / W / S / N / NE / SE / NW / SW OSD)
    Operational
    Camera Title Off / on (displayed 15 characters)
    Day and Night Auto (ICR) / Color / B&W
    Backlight Compensation Off / User BLC / HLC
    Wide Dynamic Range 120 dB
    Contrast Enhancement SSDR (Off / On)
    Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
    Image Stabilization Off / On
    Defog Off / Auto / Manual
    Motion Detection Off / on (4 zones rectangular zone)
    Privacy Masking Off / on (32 zones rectangle)
    Gain Control Off / Low / Middle / High
    White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury / Sodium
    Electronic Shutter Speed Minimum / Maximum / Anti-flicker (1 to 1/12,000 sec)
    Digital Zoom 16x
    Flip / Mirror Off / On
    Intelligent Video Analytics Tampering, virtual line, enter / exit, (dis)appear
    Alarm Inputs 4
    Alarm Outputs 2
    Remote Control Interface RS-485, Coaxial
    Protocol RS-485: Samsung-T/E, Pelco P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE
    Coaxial: ACP (AHD Coax Protocol)
    Environmental
    Operating Temperature -58 to 131°F (-50 to 55°C)
    Operating Humidity Less than 90% RH
    Ingress protection IP66
    Vandal Resistance IK10
    Electrical
    Input Voltage 24 VAC ±10%
    Power Consumption Heater Off: Maximum 24 W
    Heater On: Maximum 65 W
    Mechanical
    Material Plastic and metal
    Dimensions 8.66 x 11.56" (220 x 293.6 mm)
    Weight 7.28 lb (3.3 kg)

    Read more
